Accessories - Mounting
AO000550
Available

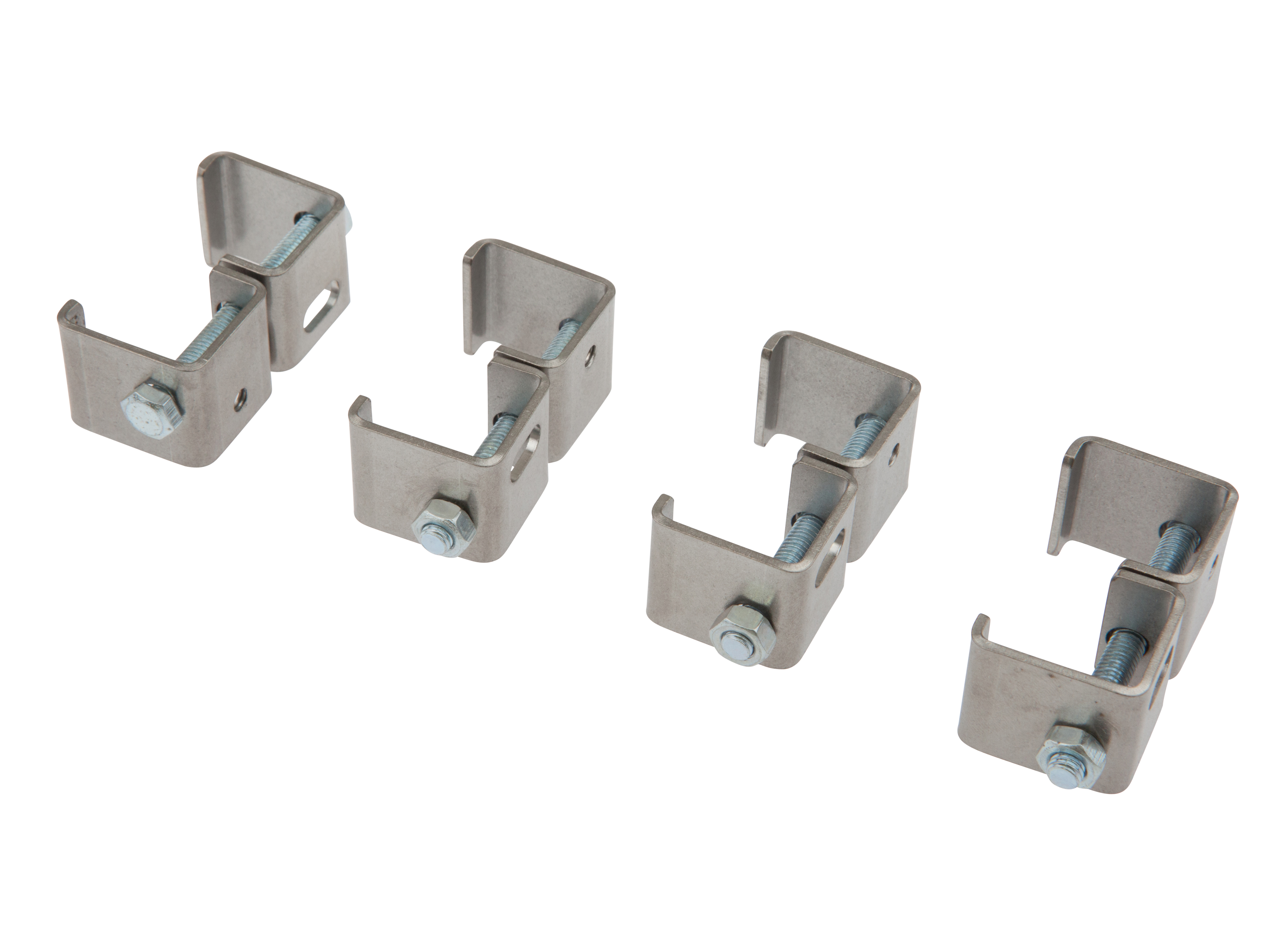

accessories optical, Mounting angle bracket, M4 20long, V2A
Compare
Accessories - Mounting
Mechanical properties
- Width
- 43mm
- Diameter of screw-on mounting
- 5.2
- Height
- 24mm
- Length
- 20mm
- Mounting method
- Screw mounting
- Material
- Stainless steel 1.4301
- Thread dimension
- M4
Other properties
- Mounting bracket
Datasheets

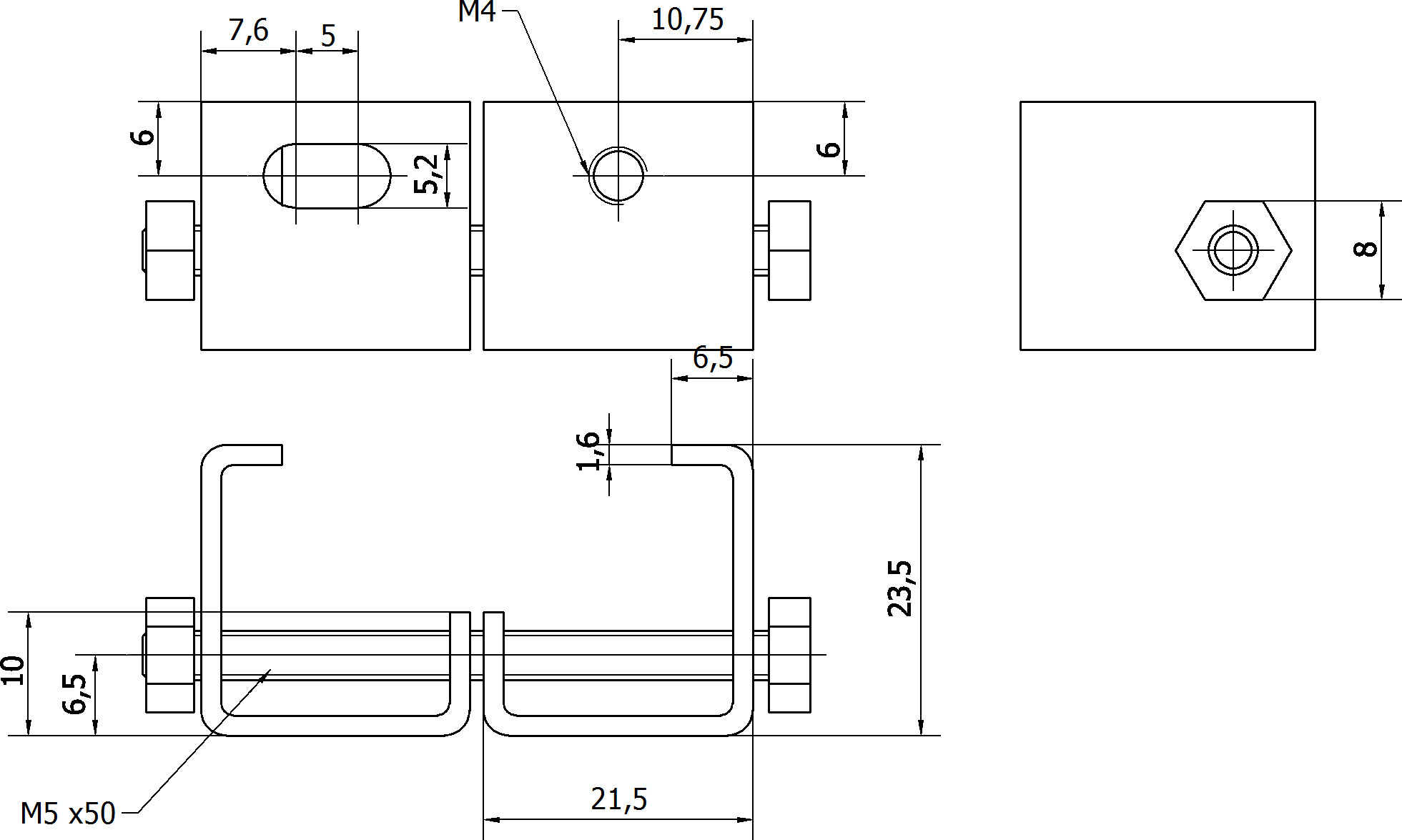

Drawings
Product Compliance
| Classification | Class |
|---|---|
| eClass-7.0 | 27279202 |
| eClass-7.1 | 27279202 |
| eClass-8.0 | 27279202 |
| eClass-9.0 | 27273701 |
| eClass-9.1 | 27273701 |
| ETIM-6.0 | EC000000 |
| ETIM-7.0 | EC000000 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 900 accessories |
| packaging dimensions | 100 x 28 x 150mm |
| gross weight | 128g |
| Customs tariff number | 73269098 |
| WEEE number | 40951076 |
