connection technology - connection adapters

AU000013

AU000013
List price
59,90 €
Scarce
accessories, ultrasonic, cable, 0.3m, M12 Female (socket) 5pin Straight, M12 Male (connector) 5pin Straight, PUR (Polyurethane)

connection technology

ipf cable sockets are used primarily for establishing the electrical connection of sensors. Their features are characterized by rugged design, the highest protection classes (IP67 | IP68 | IP69K) and, if desired, with 360° shielding. With the features: bus-ready, suitable for use with drag chains and robots, resistance to oil and chemicals, resistance to welding sparks, their resistance to cleaning agents or high-pressure and steam-jet cleaning, the expanded temperature range of up to +230°C, the rapid interconnection technology and special data transmission properties, the cable sockets meet all requirements in automation technology.

Mechanical features

Version

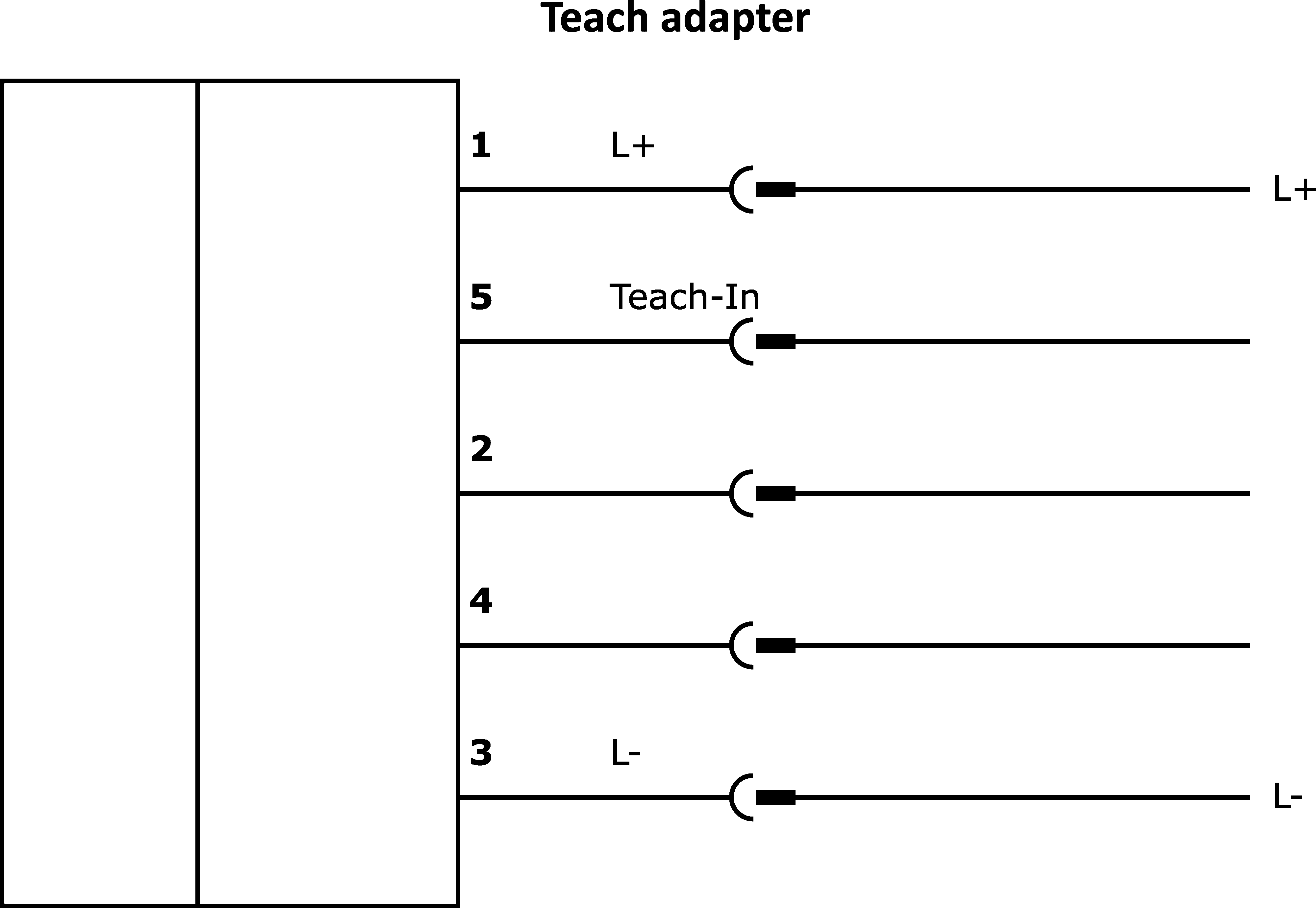

Teach adapter
Material of cable sheath
PUR (Polyurethane)
Cable infeed of A connection
Straight
Cable length
0.3m
Suitable for trailing chain
yes
Cable infeed of B connection
Straight

Electrical features

Type of cable
Multi-core
Number of pins of B connection
5
Type of B electrical connection
M12
Type of plug-in contact, B connection
Male (plug)
Number of pins of A connection
5
Type of A electrical connection
M12
Type of plug-in contact, A connection
Female (socket)

Cable sockets M12 3-wire

Cable sockets M12 4-pin field attachable

Cable sockets M12 5-pin field attachable

Adapter M12 socket 3-pin / M8 connector 3-pin

ClassificationClass
eClass 7.027279201
eClass 7.127279201
eClass 8.027279201
eClass 9.027059110
eClass 9.127059110
ETIM-6.0EC001855
ETIM-7.0EC001855
IPF Product Group900
PropertyValue
shipping weight0.05kg
packaging dimensions172.0mm x 52.0mm x 105.0mm
customs tariff number85365005
