Counters - Multi-function counters

CM034440

CM034440
List price
311,60 €
amount price discount
1 311,60 € –
5 302,25 € 3% / 9,35 €
10 296,02 € 5% / 15,58 €
20 286,67 € 8% / 24,93 €
50 274,21 € 12% / 37,39 €
Scarce
counter multifunctional, 48x108x48mm, Display LED, 5 decades, 10kHz, 1x preset, 85-265V AC, 1x Relay contact Change-over contact (NO/NC), Screw connection 13pin, IP65, Plastic PC, With reset function, With elapsed-time counting function

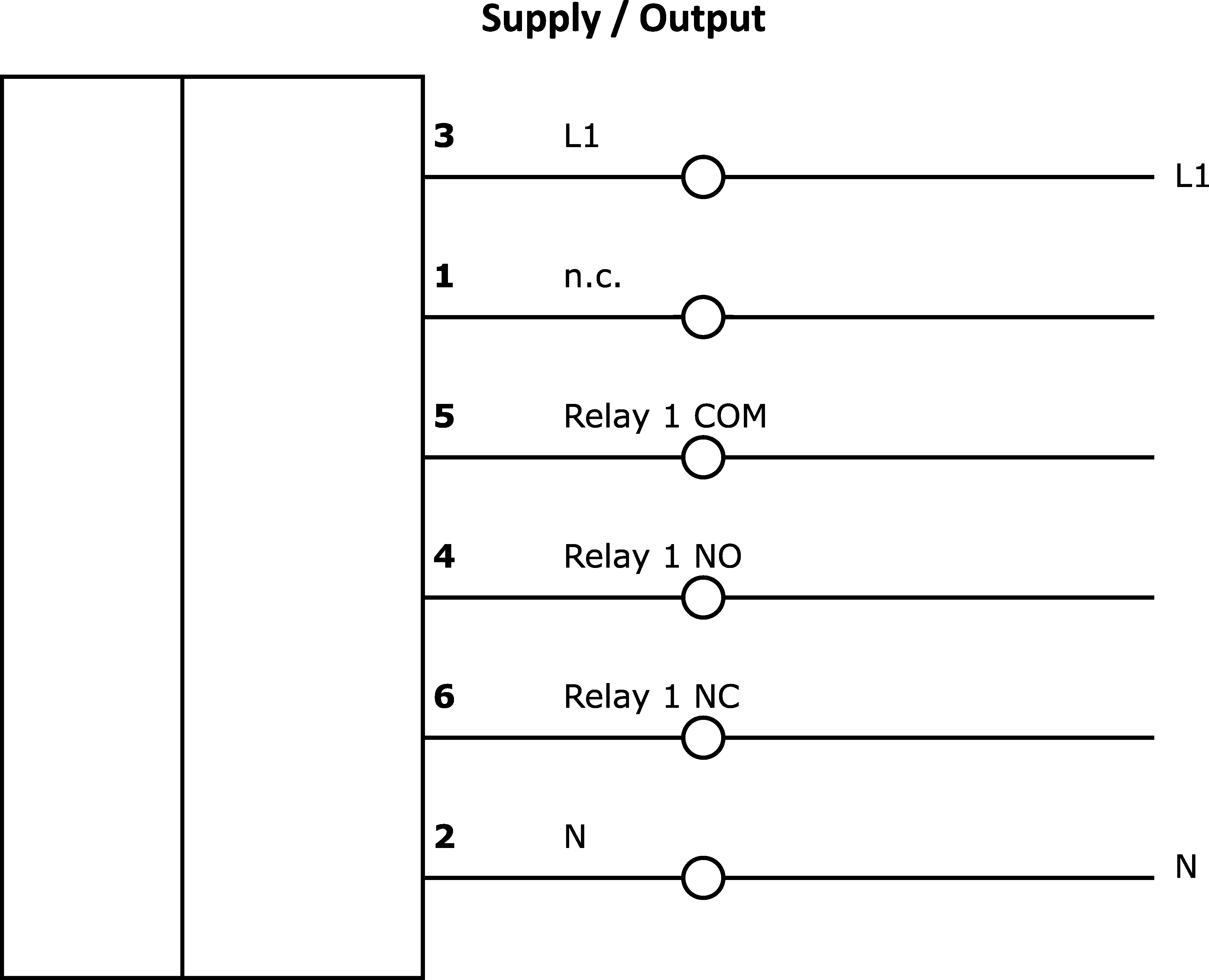

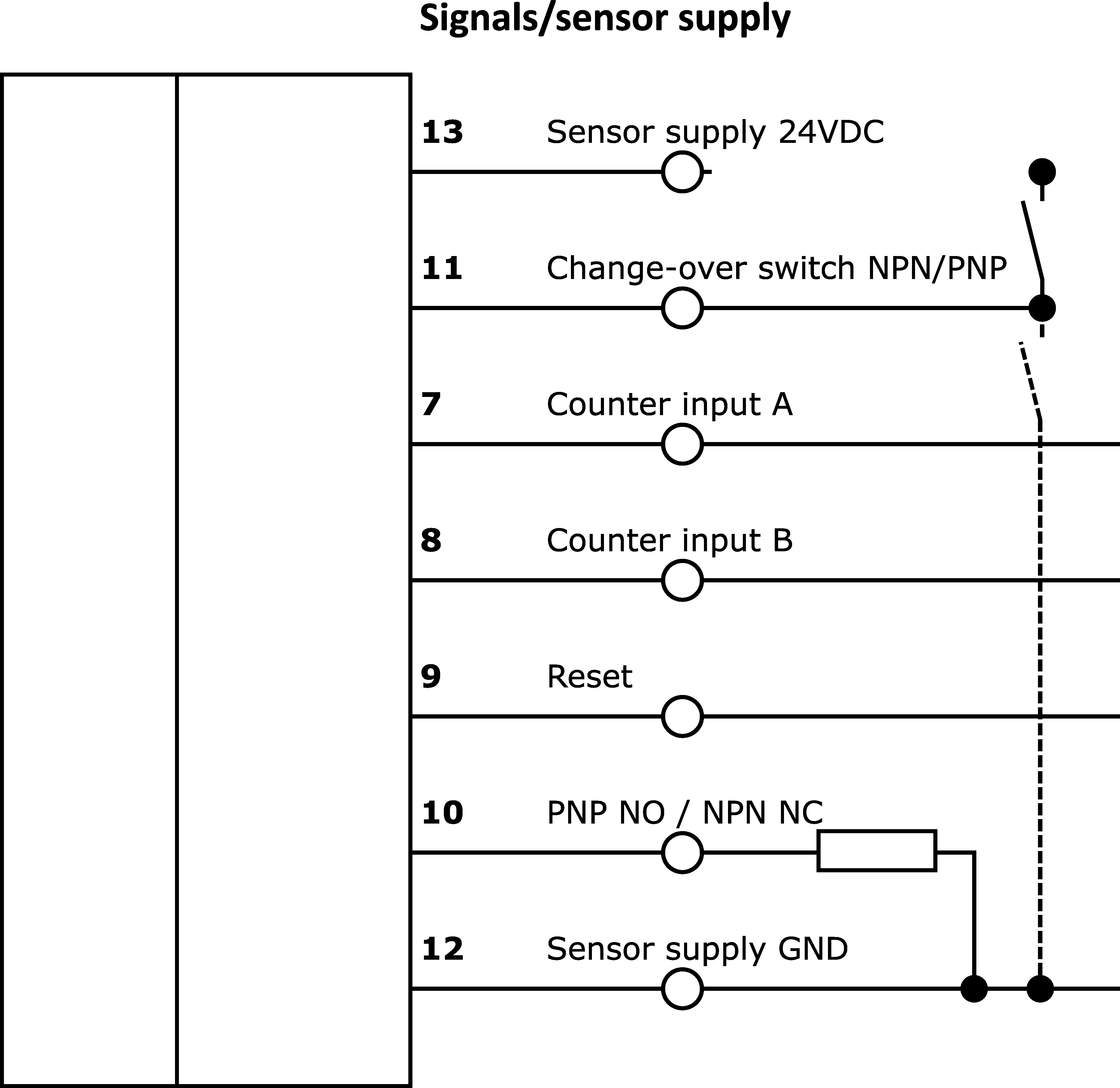

circuit diagram
Compare

Counters - Multi-function counters

Electrical properties

Number of decades
5
Number of presets to be set
1
Number of switching outputs
1
Type of switching function
Change-over contact (NO/NC)
Type of electrical connection
Clamped terminal connection
Type of switching output
Relay contact
Rated switching current
1,000mA
Transducer power supply voltage
24V
Transducer power supply current
50mA
Power consumption
4.5VA
Number of pins
13
Switching capacity
30VA
Switching voltage
250V
Timed output
0.01 - 99.99s
1. output voltage at AC
250V
Counting frequency
10kHz
Operating voltage (AC 50Hz)
85 - 265V
Display
LED display
With reset function
Yes
With elapsed-time counting function
Yes

Mechanical properties

Width
48mm
Installation depth
101mm
Height
48mm
Length
108mm
Mounting method
Panel mounting
Degree of protection (IP)
IP65
Housing material
Plastic PC

Other properties

Relative air humidity (non-condensing)
80%
Ambient temperature
50°C
Multifunction
Print data
Classification Class
eClass-7.0 27200414
eClass-7.1 27200414
eClass-8.0 27200414
eClass-9.0 27200414
eClass-9.1 27200414
ETIM-6.0 EC002300
ETIM-7.0 EC002300
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
OzDS-compliant Yes
POP-compliant Yes
IPF Product Group 500 counters
packaging dimensions 138 x 95 x 210mm
gross weight 310g
Customs tariff number 90291000
WEEE number 40951076
