camera additional lighting - Dark field lights

EF750670

EF750670
List price
492,00 €
On demand
LED Dark-field light, camera, 12x150x150mm, Blue light, 7.2W, 465nm, 22-26V DC, M8-connector 4pin, IP54, Aluminum+PMMA
Compare

camera additional lighting - Dark field lights

For any kind of inspection tasks with a camera sensor the lighting is essential, as only high-contrast images enable reproducible evaluations. Here the lighting has a decisive influence. The choice depends on different factors such as the distance to the test object, its size, the component criteria to be tested or the expected environmental conditions.

Electrical properties

Type of electrical connection
Connector M8
Rated operating current
300mA
Flash controller
internal
Power
6W
Max. peak current
1,200mA
Number of pins
4
Protection class
III
Operating voltage (DC)
22.8 - 25.2V

Mechanical properties

Width
130mm
Height
12mm
Inner diameter
75mm
Length
141mm
Degree of protection (IP)
IP54
Front screen scattering behavior
diffuse
Housing material
Aluminum
Front screen material
Polymethyl methacrylate
Working distance range
1 - 30mm

Optical properties

Lamp
LED
Light source
Blue light
Wavelength of the sensor
617nm

Other properties

Relative air humidity (non-condensing)
30 - 70%
Risk group
1
Ambient temperature
10 - 30°C

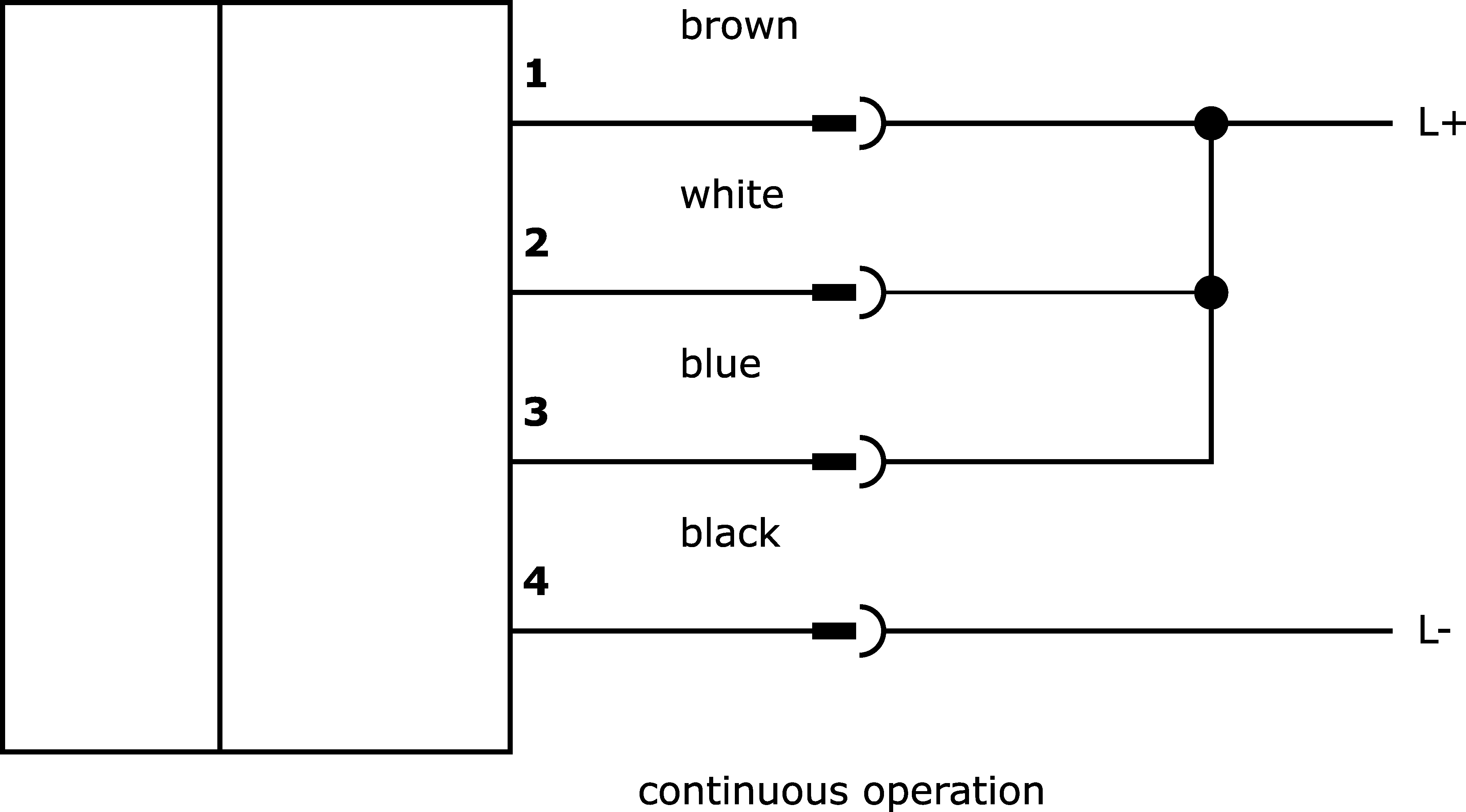

Operational mode
Permanent operation, Flash operation
Version
You can find accessories for EF750670 in these product groups:

Cable sockets M8-socket M12-connector 4-wire

Cable sockets M8 4-pin field-attachable

Cable sockets M8-socket M8-connector 4-wire

Cable sockets M8 4-wire

Direct connection cable for OC53 with flash controller

Mounting for EF750 / ER1B / ER1D

Classification Class
ETIM-6.0 EC000000
ETIM-7.0 EC000000
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
IPF Product Group 915 camera illumination
packaging dimensions 170 x 45 x 230mm
gross weight 491g
Customs tariff number 94054239
WEEE number 40951076
