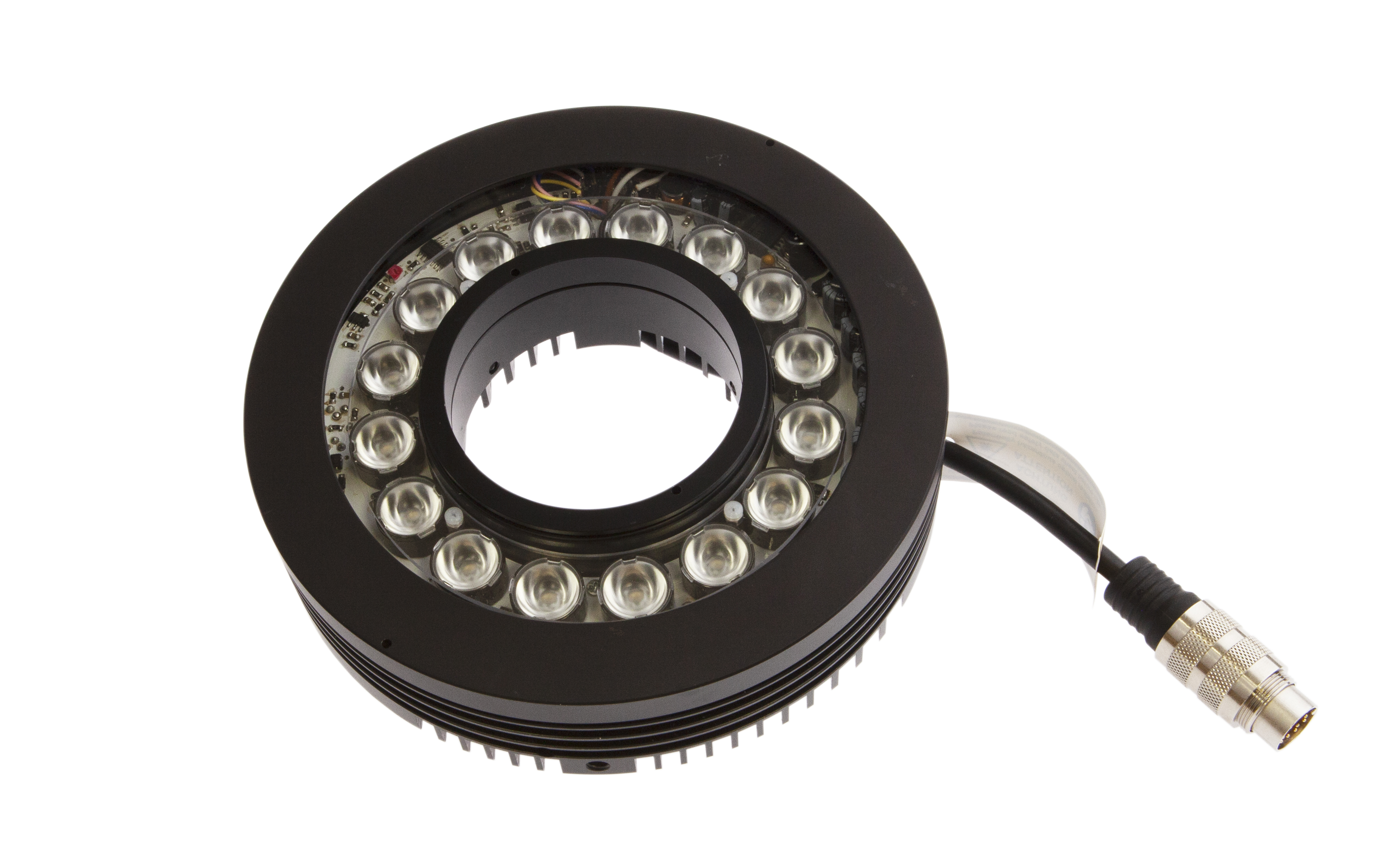

LED Ring lights, camera, Ø156mm 39long, Infrared light, 19.2W, 850nm, 19-30V DC, Cable connector M16 12pin 0.15m, IP67, Aluminum+Acrylic glass
Compare
camera additional lighting - Ring lights
For any kind of inspection tasks with a camera sensor the lighting is essential, as only high-contrast images enable reproducible evaluations. Here the lighting has a decisive influence. The choice depends on different factors such as the distance to the test object, its size, the component criteria to be tested or the expected environmental conditions.
Electrical properties
- Type of electrical connection
- Cable connector M16
- Rated operating current
- 800mA
- Flash controller
- internal
- Power
- 7.2W
- Max. peak current
- 1,600mA
- Number of pins
- 12
- Protection class
- III
- Operating voltage (DC)
- 19 - 30V
- Flash duration
- 50 - 750µs
- Adjustable brightness
- Yes
Mechanical properties
- Height
- 39mm
- Inner diameter
- 66mm
- Cable length
- 0.15m
- Length
- 39mm
- Degree of protection (IP)
- IP64
- Front screen scattering behavior
- clear
- Housing material
- Aluminum
- Front screen material
- Acrylic glass
- Diameter
- 156mm
Optical properties
- Number of LEDs
- 16
- Lamp
- LED
- Light source
- Infrared light
- Angle of beam spread
- 36°
- Wavelength of the sensor
- 617nm
Other properties
- Risk group
- 0
- Ambient temperature
- 5 - 45°C
- Operational mode
- Flash operation
- Changeable fronts
- Yes
- Ring lights
Cable sockets M16 12-wire
Fixing material for ER1E
Connecting cable for ESK00 & ER1E
Replaceable lens for ER1E
Datasheets
Drawings
-

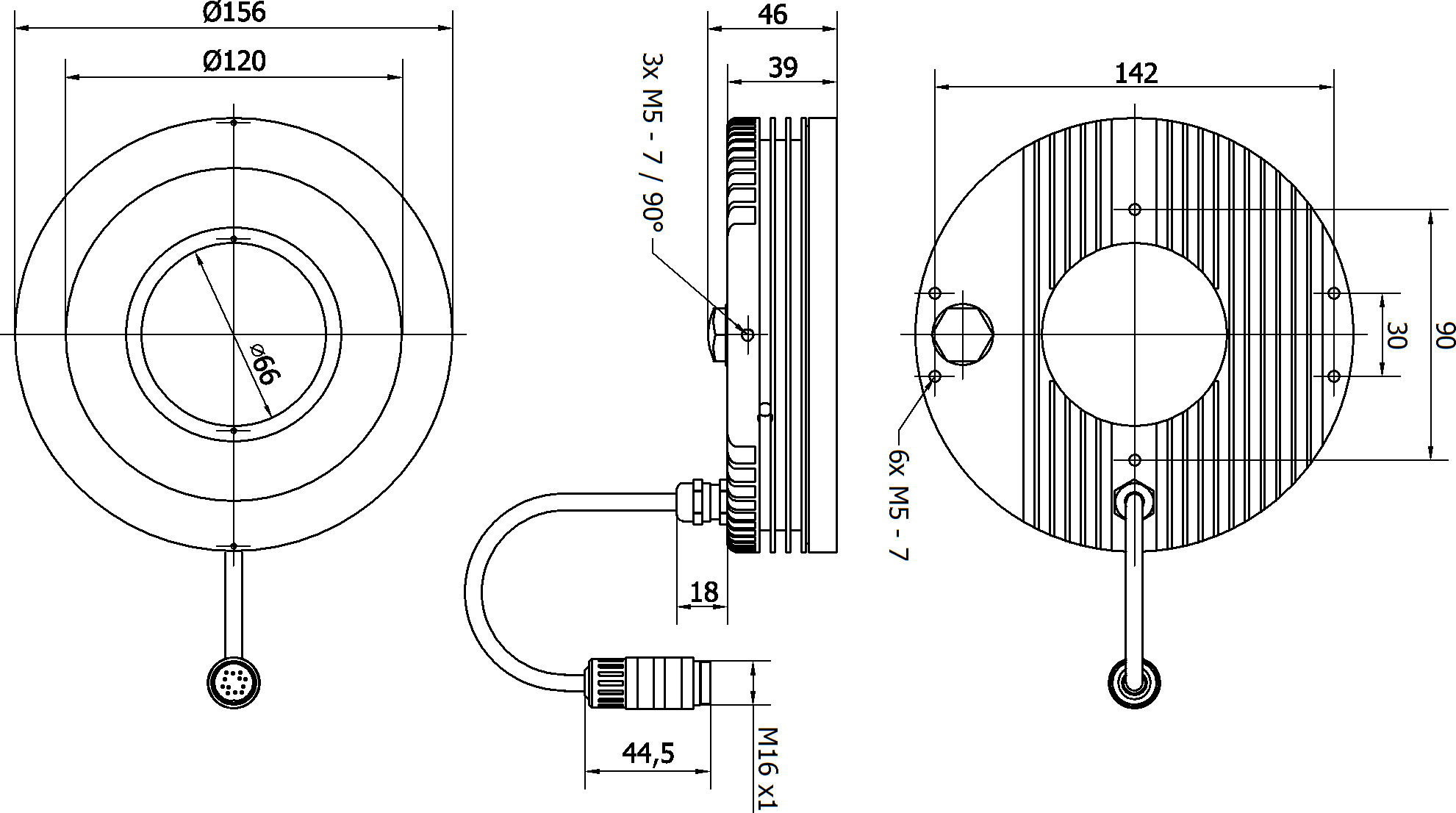

jpgBlueprintJPG-file, 225 KB
-
dwg2DDWG-file, 579 KB
-
stp3DSTP-file, 1.8 MB
-

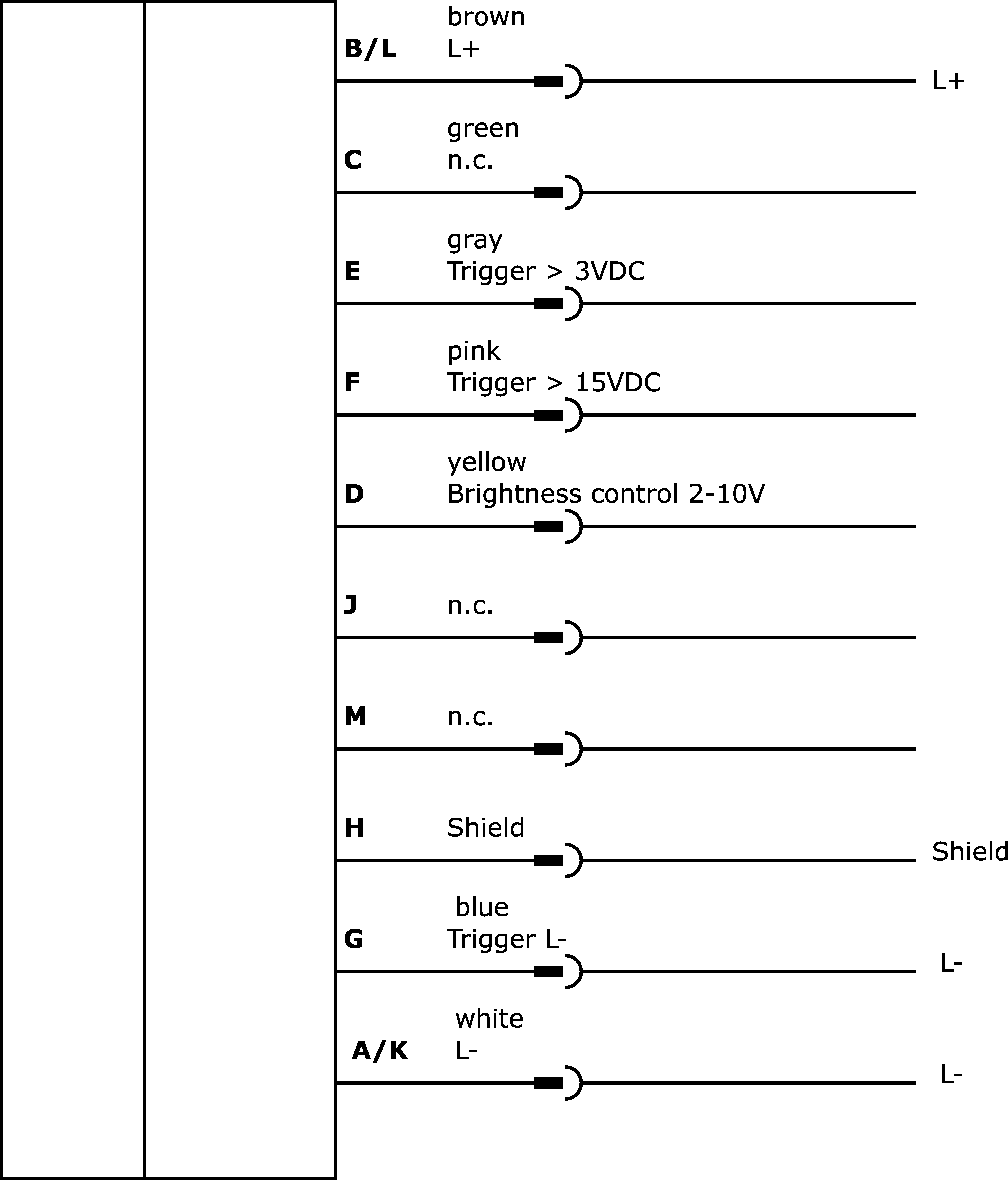

pngWiring diagram - internetPNG-file, 17 KB
