Inductive sensors - Increased ambient temperature
IB186050
| amount | price | discount |
|---|---|---|
| 1 | 261,00 € | – |
| 5 | 253,17 € | 3% / 7,83 € |
| 10 | 247,95 € | 5% / 13,05 € |
| 20 | 240,12 € | 8% / 20,88 € |
| 50 | 229,68 € | 12% / 31,32 € |
Available
sensor inductive, M18x1 30long, Flush, Sn: 5, 0-230°C, Other Anschluss an Verstärker, Connector M12 3m Polytetrafluorethylene (PTFE), IP50, Stainless steel 1.4305
including 2x Nut
Compare
Inductive sensors - Increased ambient temperature
Inductive proximity switches are contact-free sensors. They detect all conductive metals, regardless of whether they move or not. The achievable sensing range of the devices depends on the object material and its dimensions. The vibration-resistant sensors can be approached laterally or frontally. Inductive proximity switches are used for presence detection (e.g. goods carriers), positioning (e.g. dampers), counting (e.g. nuts /bolts), speed detection (e.g. for cog wheels), on conveyor systems (e.g. hose feedings) or distance measurements (e.g. press-in checking) of metallic objects.
Electrical properties
- Type of switching function
- Amplifier
- Type of electrical connection
- Connector M12
- Type of switching output
- other
- Relative hysteresis
- 15%
- Switching distance
- 5mm
- Switching frequency
- 300Hz
- Connection to amplifier
- Yes
Mechanical properties
- Alignment of cable entry
- axial
- Design
- Cylinder, screw-thread
- Thread length
- 25mm
- Thread pitch
- 1mm
- Cable length
- 3m
- Cable infeed
- axial
- Length
- 30mm
- Mechanical mounting condition for sensor
- flush
- Degree of protection (IP)
- IP50
- Active area material of sensor
- Plastic (Vectra®)
- Housing material
- Stainless steel 1.4305
- Material of cable sheath
- Plastic (PTFE)
- Thread dimension
- M18
Other properties
- Ambient temperature
- 0 - 230°C
- Reference medium / object
- Standard measuring plate FE360 18x18x1mm
You can find accessories for IB186050
in these product groups:
Protection cap, teflon M12
Amplifier inductive high-temperature
Mounting system for AY000117
Available
Mounting system, cylindrical, M18
Available
Sheath
Fixing material design M18, high temperature
Available
Available
Fixing material design M18
Available
Available
Available
Fixing material ball-head holder
Available
Datasheets
Drawings
-
jpgBlueprintJPG-file, 112 KB
-
dwg2DDWG-file, 175 KB
-
stp3DSTP-file, 67 KB
-

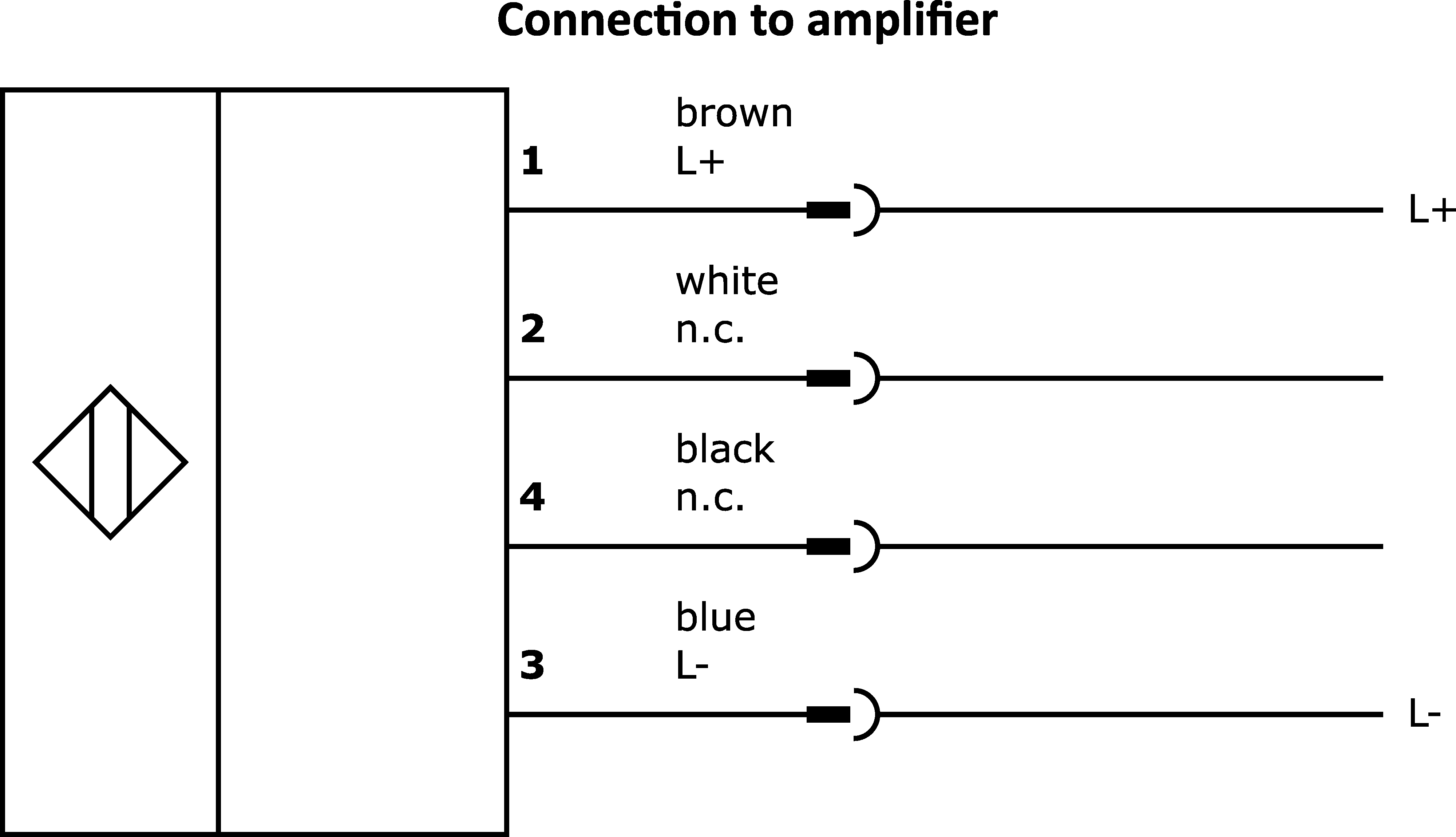

pngWiring diagram - internetPNG-file, 5.6 KB
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 324 KB
-
pdfMaterial compliancePDF-file, 407 KB
-
pdfCE declaration of conformityPDF-file, 254 KB
Miscellaneous
| Classification | Class |
|---|---|
| eClass-7.0 | 27270101 |
| eClass-7.1 | 27270101 |
| eClass-8.0 | 27270101 |
| eClass-9.0 | 27270101 |
| eClass-9.1 | 27270101 |
| ETIM-6.0 | EC002714 |
| ETIM-7.0 | EC002714 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| IPF Product Group | 202 inductive sensors (high temperature) |
| packaging dimensions | 200 x 40 x 300mm |
| gross weight | 144g |
| Customs tariff number | 85365019 |
| WEEE number | 40951076 |
