Inductive sensors - Ring sensors

IY350325

IY350325
List price
241,50 €
amount price discount
1 241,50 €
5 234,26 € 3% / 7,25 €
10 229,43 € 5% / 12,08 €
20 222,18 € 8% / 19,32 €
50 212,52 € 12% / 28,98 €
Scarce

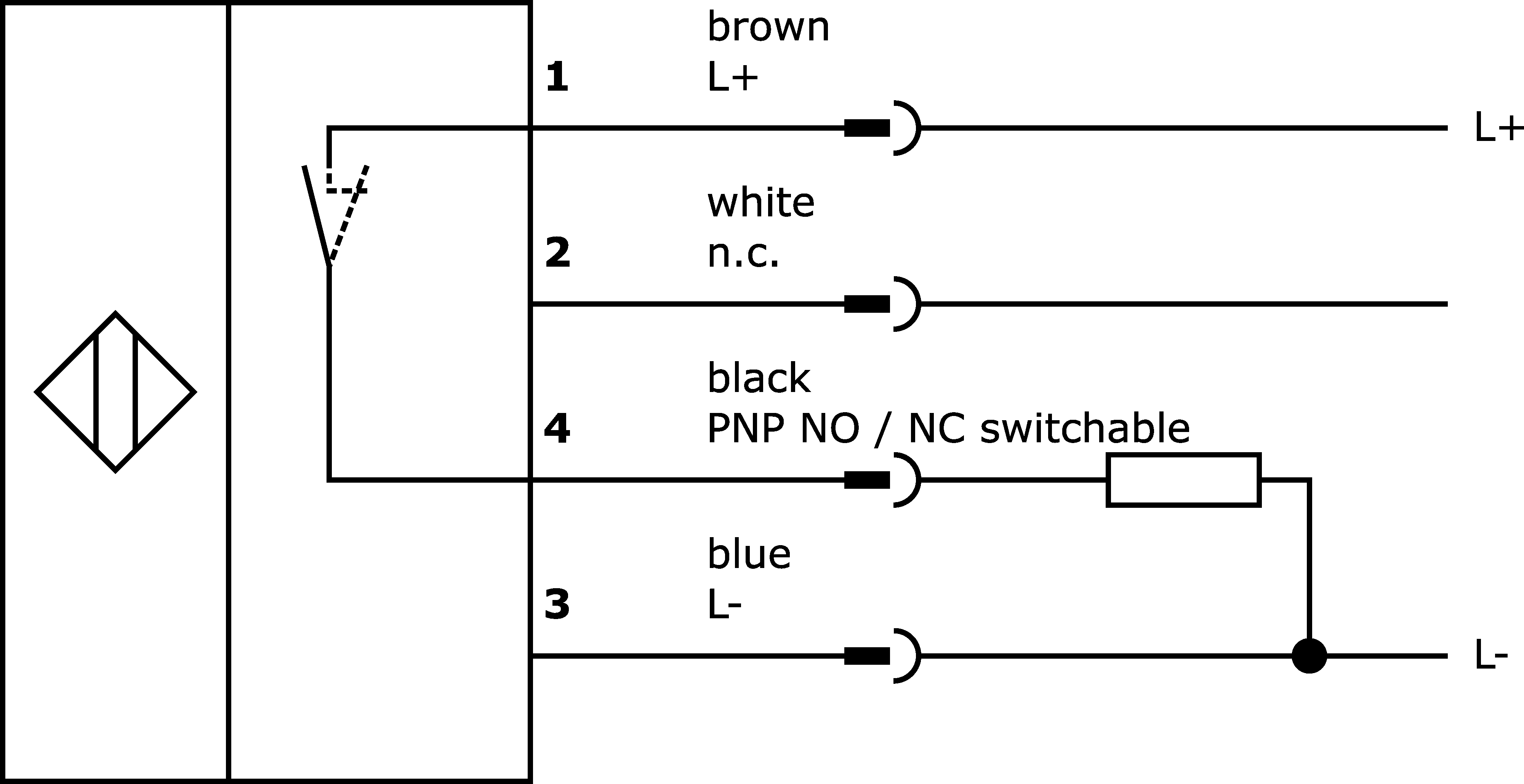

sensor inductive, 20x96x60mm, ring 35.2, 10-35V DC, PNP NC/NO, Connector M12 3pin, IP67, Polyamide, Dynamic
Compare

Inductive sensors - Ring sensors

Inductive proximity switches are contact-free sensors. They detect all conductive metals, regardless of whether they move or not. The achievable sensing range of the devices depends on the object material and its dimensions. The vibration-resistant sensors can be approached laterally or frontally. Inductive proximity switches are used for presence detection (e.g. goods carriers), positioning (e.g. dampers), counting (e.g. nuts /bolts), speed detection (e.g. for cog wheels), on conveyor systems (e.g. hose feedings) or distance measurements (e.g. press-in checking) of metallic objects.

Electrical properties

Response/decay time
0.1ms
Type of switching function
Normally closed contact/normally open contact
Type of electrical connection
Connector M12
Type of switching output
PNP
Rated switching current
200mA
Setting procedure
Potentiometer
Pulse stretching
0.1 - 150ms
No-load current
20mA
Max. parts speed
35m/s
Number of pins
3
Switching behavior of the output
Dynamic
Voltage drop
2V
Reverse polarity protection
Yes
Decay time
0.1ms
Operating voltage (DC)
10 - 35V
Output functions
Switching point
Display
LED display

Mechanical properties

Design
Ring-shaped
Width
60mm
Height
20mm
Cable infeed
axial
Length
96mm
Mechanical mounting condition for sensor
non-flush
Ring diameter
35.2mm
Degree of protection (IP)
IP67
Active area material of sensor
Plastic (POM)
Housing material
Polyamide PA

Optical properties

Resolution, dynamic
2mm
Min. object size
2mm

Other properties

Ambient temperature
-25 - 70°C
Reference medium / object
Steel ball
Feeding technology
Yes
You can find accessories for IY350325 in these product groups:

Adapter M12 socket 4-pin / M8 connector 4-pin

Cable sockets M12 4-pin field attachable

Power supply 24V DC / 2 – 10A

Adapter M12 socket 3-pin / M8 connector 3-pin

Cable sockets M12 3-wire

Cable sockets M12 5-pin field attachable

Classification Class
eClass-7.0 27270101
eClass-7.1 27270101
eClass-8.0 27270101
eClass-9.0 27270101
eClass-9.1 27270101
ETIM-6.0 EC002714
ETIM-7.0 EC002714
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
POP-compliant Yes
TSCA-compliant Yes
IPF Product Group 211 inductive sensors (ring/hose)
packaging dimensions 77 x 25 x 123mm
gross weight 130g
Customs tariff number 85365019
WEEE number 40951076
