Diffuse-reflections sensor for integration - Capacitive
KY98C966
| amount | price | discount |
|---|---|---|
| 1 | 127,90 € | – |
| 5 | 124,06 € | 3% / 3,84 € |
| 10 | 121,51 € | 5% / 6,40 € |
| 20 | 117,67 € | 8% / 10,23 € |
| 50 | 112,55 € | 12% / 15,35 € |
On demand
sensor capacitive, push button, M18x1, 22.5mm, START, 19-29V DC, -30-70°C, Relay contact NO, Connector M8 4pin, IP67, Plastic Anodised, With LED display
Compare
Diffuse-reflections sensor for integration - Capacitive
Capacitive proximity switches are contact-free sensors. They detect metallic and non-metallic objects, regardless of whether they move or not. The achievable sensing range of the devices depends on the object material, its dimensions and the response sensitivity, which is set via a potentiometer. The vibration-resistant sensors can be approached laterally or frontally. Capacitive proximity switches are used for presence detection (e.g. sealing detection), positioning (e.g. PET bottles), counting (e.g. plastic caps), level detection (e.g. lubricant) or distance measurements (e.g. thickness measurement) of solid and liquid materials.

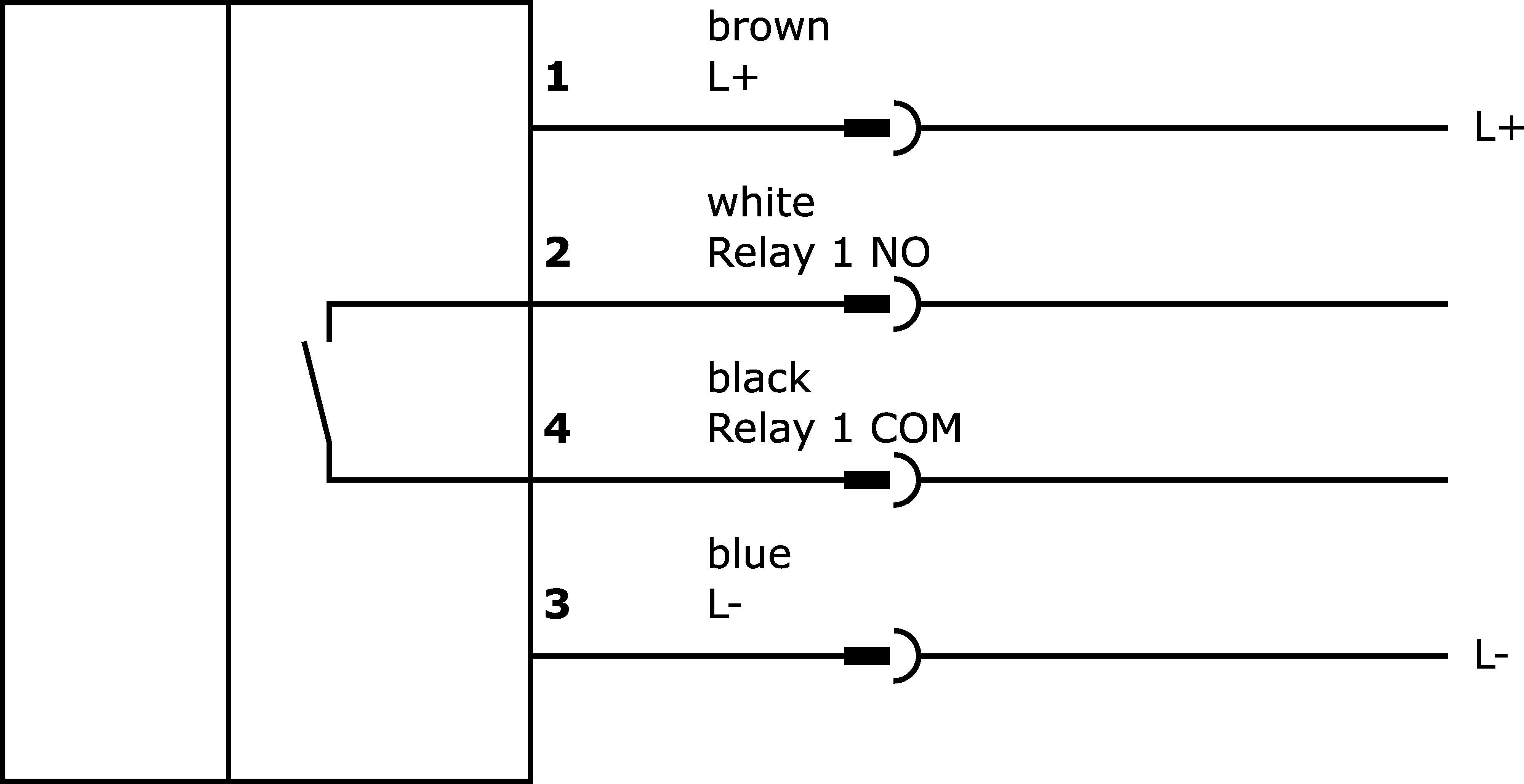

Electrical properties
- Type of switching function
- Normally open contact (NO)
- Type of electrical connection
- Connector M8
- Type of switching output
- Relay contact
- Rated switching current
- 400mA
- No-load current
- 30mA
- Number of pins
- 4
- Voltage drop
- 2.5V
- Reverse polarity protection
- Yes
- Operating voltage (DC)
- 19.2 - 28.8V
- Display
- LED display
Mechanical properties
- Design
- Round
- Thread length
- 10mm
- Thread pitch
- 1mm
- Hole diameter
- 22.5mm
- Maximum tightening torque
- 1Nm
- Mounting method
- Counter thread
- Surface
- teflon coated
- Degree of protection (IP)
- IP67
- Front ring material
- Metal
- Housing material
- Plastic
- Thread dimension
- M18
Other properties
- Printing
- START
- Ambient temperature
- -30 - 70°C
- With front ring
- Yes
You can find accessories for KY98C966
in these product groups:
Adapter M8 socket 4-pin / M12 connector 4-pin
Cable sockets M8-socket M8-connector 4-wire
Datasheets
Drawings
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 324 KB
-
pdfMaterial compliancePDF-file, 407 KB
-
pdfCE declaration of conformityPDF-file, 253 KB
-
pdfUL declaration of conformityPDF-file, 76 KB
-
pdfCCC declaration of conformityPDF-file, 73 KB
-
pdfCSA declaration of conformityPDF-file, 57 KB
Miscellaneous
| Classification | Class |
|---|---|
| eClass-7.0 | 27371228 |
| eClass-7.1 | 27371228 |
| eClass-8.0 | 27371228 |
| eClass-9.0 | 27371228 |
| eClass-9.1 | 27371228 |
| ETIM-6.0 | EC001028 |
| ETIM-7.0 | EC001028 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| IPF Product Group | 690 diverse sensors |
| packaging dimensions | 43 x 43 x 105mm |
| gross weight | 30g |
| Customs tariff number | 85365019 |
| WEEE number | 40951076 |
