Diffuse-reflections sensor for integration - Capacitive

KY98E005

KY98E005
List price
134,00 €
amount price discount
1 134,00 €
5 129,98 € 3% / 4,02 €
10 127,30 € 5% / 6,70 €
20 123,28 € 8% / 10,72 €
50 117,92 € 12% / 16,08 €
On demand
sensor capacitive, push button, M18x1, 22.5mm, Symbol "arrow", 19-29V DC, -30-70°C, Relay contact NO, Single cores 4pin 200m, IP67, Plastic Anodised, With LED display
Compare

Diffuse-reflections sensor for integration - Capacitive

Capacitive proximity switches are contact-free sensors. They detect metallic and non-metallic objects, regardless of whether they move or not. The achievable sensing range of the devices depends on the object material, its dimensions and the response sensitivity, which is set via a potentiometer. The vibration-resistant sensors can be approached laterally or frontally. Capacitive proximity switches are used for presence detection (e.g. sealing detection), positioning (e.g. PET bottles), counting (e.g. plastic caps), level detection (e.g. lubricant) or distance measurements (e.g. thickness measurement) of solid and liquid materials.

Electrical properties

Type of switching function
Normally open contact (NO)

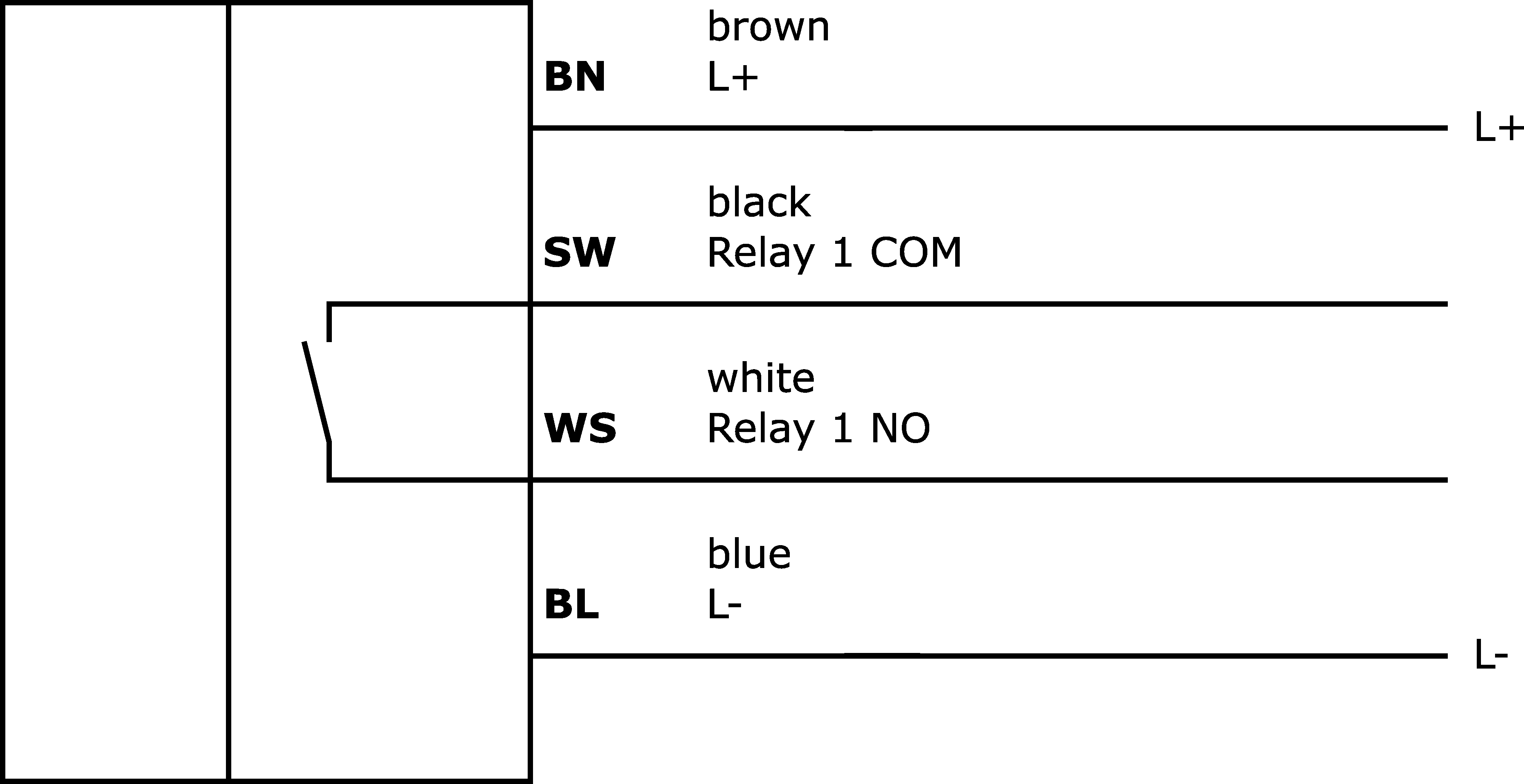

Type of electrical connection
Single cores
Type of switching output
Relay contact
Rated switching current
400mA
No-load current
30mA
Number of pins
4
Voltage drop
2.5V
Reverse polarity protection
Yes
Operating voltage (DC)
19.2 - 28.8V
Display
LED display

Mechanical properties

Design
Round
Thread length
10mm
Thread pitch
1mm
Cable length
0.2m
Hole diameter
22.5mm
Maximum tightening torque
1Nm
Mounting method
Counter thread
Surface
Degree of protection (IP)
IP67
Front ring material
Metal
Housing material
Plastic
Thread dimension
M18

Other properties

Printing
Symbol "arrow"
Ambient temperature
-30 - 70°C
With front ring
Yes
Classification Class
eClass-7.0 27371228
eClass-7.1 27371228
eClass-8.0 27371228
eClass-9.0 27371228
eClass-9.1 27371228
ETIM-6.0 EC001028
ETIM-7.0 EC001028
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
IPF Product Group 690 diverse sensors
packaging dimensions 43 x 43 x 105mm
gross weight 30g
Customs tariff number 85365019
WEEE number 40951076
