magnetic sensors - proximity switches

MR124200

MR124200
Not in stock
sensor magnetic, reed, M12x1 21long, 1x Dry reed contact NC, 480mA, Cable 1m PVC, IP67, Nickel-plated brass
including 2x Nut

magnetic sensors

250V AC/DC,480mA,nc,1m Kabel

Mechanical features

Thread length
70mm
Housing material
Nickel-plated brass
Ambient temperature
-25 - 70°C
Thread pitch
1mm
Material of cable sheath
PVC
Tightening torque
10Nm
Sensor length
21mm
Cable length
1m
Number of cores
2
Thread size, metric
12
Housing design
Cylinder, screw-thread
Degree of protection (IP)
IP67
Sensor diameter
12mm

Electrical features

Voltage type
AC/DC
Switching frequency
250Hz
Type of switching output
Dry reed contact
Operating voltage
250 - 250V
Rated switching current
480mA
Reverse polarity protection
no
Number of switching outputs
1

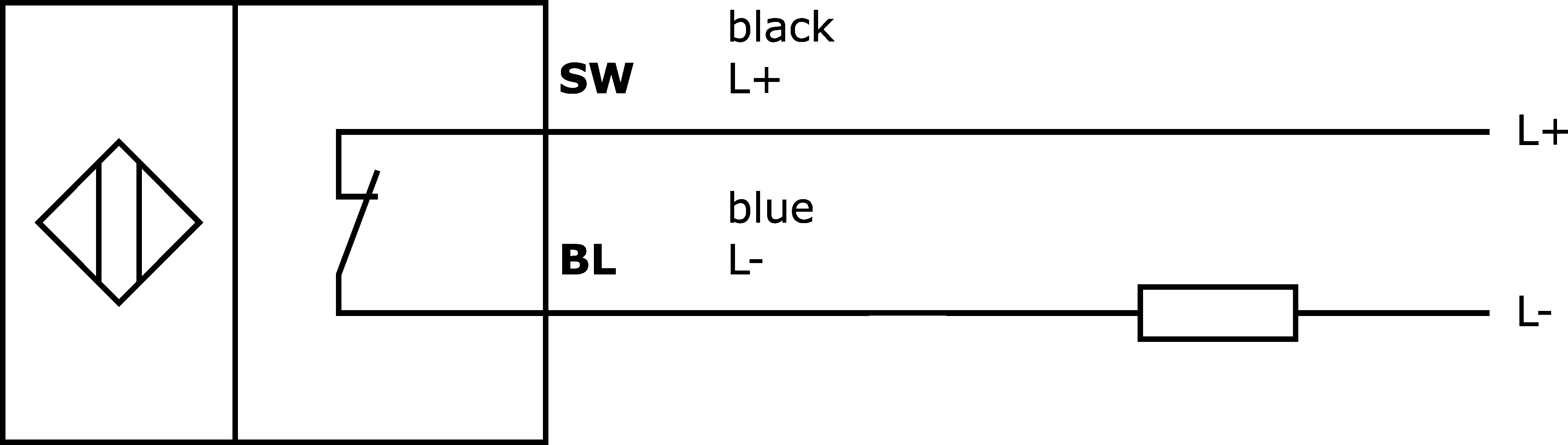

Type of electrical connection
Cable
Type of switching function
Normally closed contact
Cross/short circuit identification possible
no
Short-circuit protection
no
Contact life
≤ 10^5 ... 10^6 circuitry

Fixing material design M12

Inverters – terminal

ClassificationClass
eClass 7.027270105
eClass 7.127270105
eClass 8.027270105
eClass 9.027270105
eClass 9.127270105
ETIM-6.0EC002544
ETIM-7.0EC002544
IPF Product Group230
PropertyValue
shipping weight0.1kg
packaging dimensions77.0mm x 25.0mm x 123.0mm
customs tariff number85365080
