MW110400
amount | price | discount |
---|---|---|
1 | 398,30 € | – |
5 | 386,35 € | 3% / 11,95 € |
10 | 378,39 € | 5% / 19,92 € |
20 | 366,44 € | 8% / 31,86 € |
50 | 350,50 € | 12% / 47,80 € |
Linear and angular measurement - magnetic
For length measurement, rotational speed or angle measurement, magnetic measuring systems are used. These systems operate in a way that the sensor moves without contact over a flexible magnetic tape, or it is situated above the rotating magnetized measuring wheel. The magnetic tape is applied to a 0.3mm thick steel strip and is located on the circumference of the various measuring wheels. The magnetization is carried out with defined pole pitches. By scanning of the magnetic poles an analog signal is generated, which is converted into digital square wave signals that can be processed by a downstream electronics and, if necessary, be displayed. The sensor detects the pitch of the strip and converts the information into a high-resolution path or rotation information. To read out the magnetic lines no direct contact is required. Magnetic sensors are insensitive to dirt, oils and moisture and relatively stable at shock and vibration. For users, this opens up a wide field of applications, e.g. for plants and systems in the timber industry, at linear axes, in outdoor areas or with machine tools.
Electrical properties
- Resolution
- 0.01mm
- Type of electrical connection
- Cable
- Type of switching output
- Push-pull level
- Operating principle
- Relative
- Short-circuit protection
- Yes
- No-load current
- 70mA
- Line diameter
- 5mm
- Number of pins
- 6
- Pulse interval
- 1µs
- Signal outputs
- A+B (+inverted)
- Reverse polarity protection
- Yes
- Operating voltage (DC)
- 24V
- Measuring range
- 0.4 - 2mm
Mechanical properties
- Width
- 10mm
- Height
- 37mm
- Cable length
- 2m
- Length
- 25mm
- Storage temperature
- -30 - 80°C
- Max. traverse speed
- 6.9m/s
- Degree of protection (IP)
- IP67
- Housing material
- Plastic
- Material of cable sheath
- Plastic (PUR)
Other properties
- Relative air humidity (non-condensing)
- 0 - 100%
- Ambient temperature
- -10 - 70°C
Sheath
Magnetic strip AM000059
Counter for MW11 push-pull
Datasheets
-
pdfProduct data sheetPDF-file, 204 KB
-
pdfCatalog data sheetPDF-file, 1.3 MB
-
pdfAutomatic data sheetPDF-file, 650 KB
Manuals
Drawings
-
jpgBlueprintJPG-file, 314 KB
-
dwg2DDWG-file, 83 KB
-
stp3DSTP-file, 27 KB
-

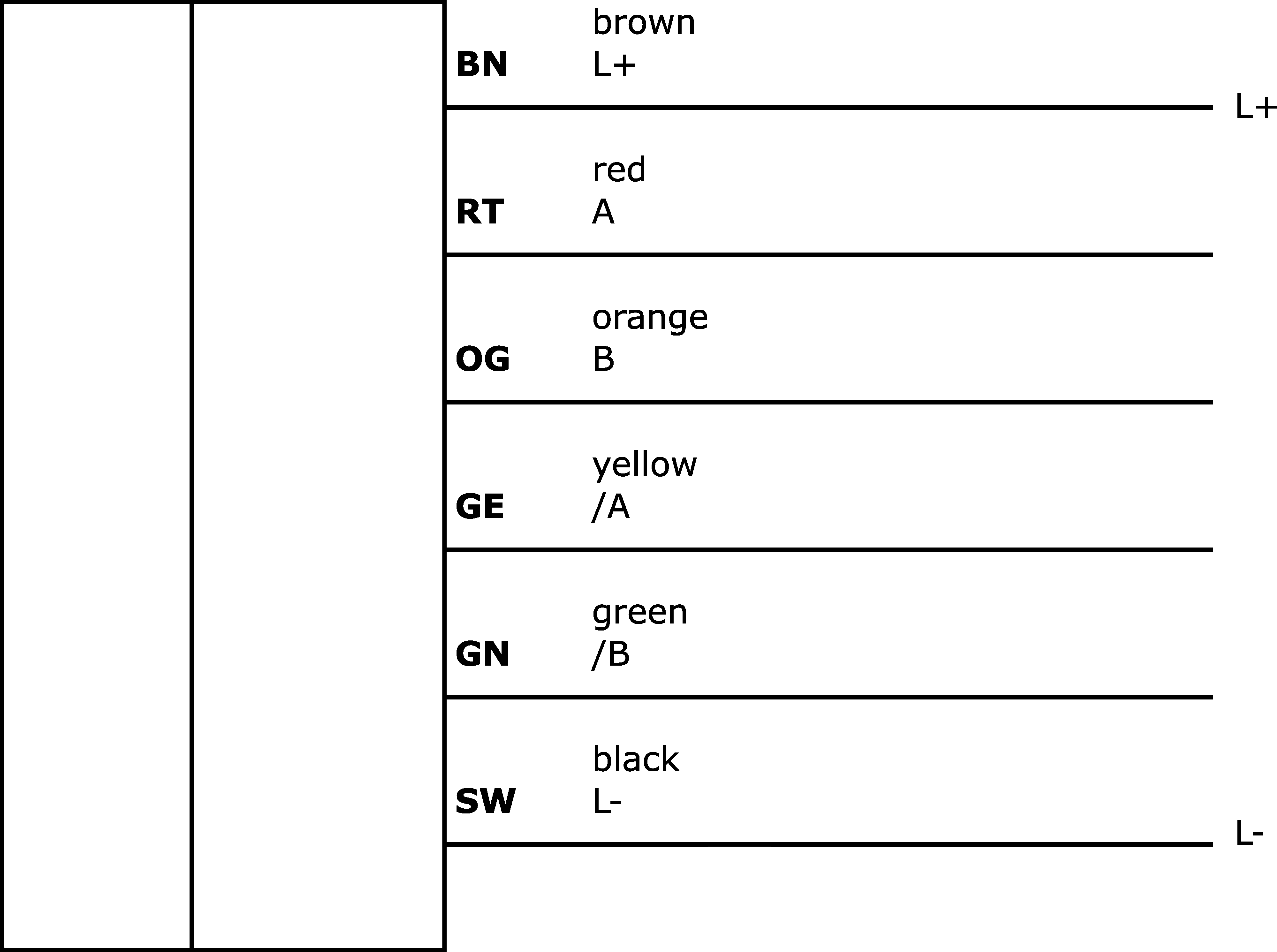

pngWiring diagram - internetPNG-file, 11 KB
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 325 KB
-
pdfMaterial compliancePDF-file, 406 KB
-
pdfCE declaration of conformityPDF-file, 253 KB
-
pdfUL declaration of conformityPDF-file, 76 KB
-
pdfCCC declaration of conformityPDF-file, 73 KB
-
pdfCSA declaration of conformityPDF-file, 57 KB
Miscellaneous
Classification | Class |
---|---|
eClass-7.0 | 27270705 |
eClass-7.1 | 27270705 |
eClass-8.0 | 27270705 |
eClass-9.0 | 27270705 |
eClass-9.1 | 27270705 |
ETIM-6.0 | EC001852 |
ETIM-7.0 | EC001852 |
Property | Value |
---|---|
RoHS‑compliant | Yes |
Reach-compliant | Yes |
IPF Product Group | 235 magnetic linear measurement systems |
packaging dimensions | 124 x 28 x 149mm |
gross weight | 100g |
Customs tariff number | 90318020 |
WEEE number | 40951076 |
