high performance light barriers - through-beam sensors receivers

OE136070

OE136070
List price
90,00 €
amountpricediscount
190,00 €
587,30 €3% / 2,70 €
1085,50 €5% / 4,50 €
2082,80 €8% / 7,20 €
5079,20 €12% / 10,80 €
Available
high performance light barrier through-beam sensor receivers, 67x12x12mm, Normal design, Anschluss an Verstärker, Connector M8, IP67, Aluminum+Plastic

high-performance light barriers

Optical sensors function contactlessly. They detect objects independent of their characteristics (e.g., shape, color, surface structure, material). The basic operating principle is based on the transmission and reception of light. There are three different versions: 1. The through-beam sensor consists of two separate devices, a transmitter and a receiver that are aligned with one another. If the light beam between the two devices is interrupted, the switching output integrated in the receiver changes its status. 2. With the retro-reflective sensor, the transmitter and receiver are located in one device. The emitted light beam is reflected back to the receiver by a reflector that is to be mounted opposite the device. As soon as the light beam is interrupted, the switching output integrated in the device changes its status. 3. With the diffuse reflection sensor, the transmitter and receiver are in one device. The emitted light beam is reflected by the object that is to be detected. As soon as the receiver detects the reflected light, the switching output integrated in the device changes its status.

Mechanical features

Version
Through-beam sensor receiver
Housing material
Aluminum
Material of optical surface
Plastic
Sensor width
12mm
Sensor length
12mm
Vibration resistance
55Hz
Design
Cuboid
Ambient temperature
-25 - 60°C
Degree of protection (IP)
IP67
Sensor height
66.8mm
Shock resistance
30g
Storage temperature
-40 - 80°C

Electrical features

Type of input voltage
DC

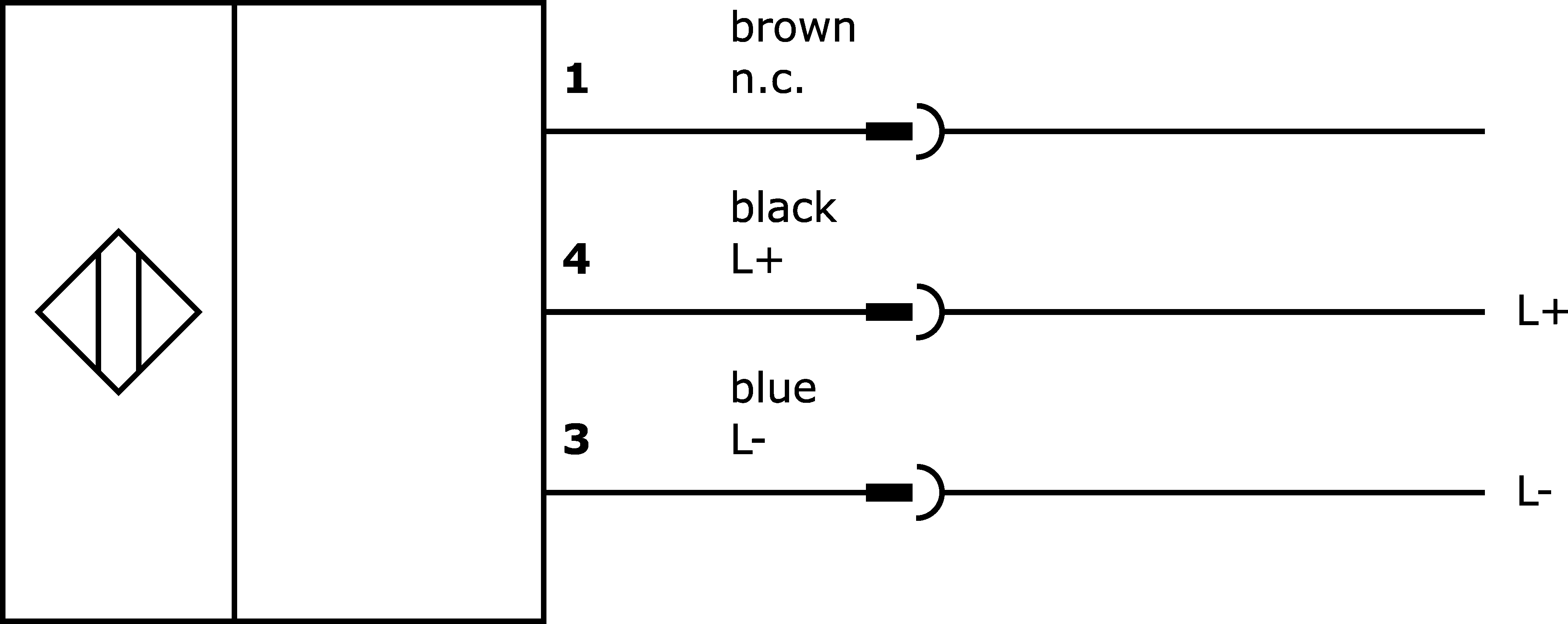

Type of electrical connection
Connector M8
Connection to amplifier
yes
Switching frequency
15Hz
Max. switching distance
70m

Other features

Scope of delivery of the one-way system
Receiver

Optical features

Angle of beam spread
25°
Wavelength of the sensor
880nm
Light source
Infrared light
Light beam form
Point

Cable sockets M8 3-wire

Cable sockets M8-socket M8-connector 3-wire

Cable sockets M8-socket M12-connector 3-wire

Cable sockets M8 3-pin field-attachable

Protection cap, teflon M8

High performance light barrier, transmitter

High performance light barriers, amplifier

Adapter M8 socket 3-pin / M12 connector 3-pin

Adapter M8 socket 3-pin / M8 connector 4-pin

High performance light barriers, receiver OE13

ClassificationClass
eClass 7.027270901
eClass 7.127270901
eClass 8.027270901
eClass 9.027270901
eClass 9.127270901
ETIM-6.0EC002716
ETIM-7.0EC002716
IPF Product Group101
PropertyValue
packaging dimensions77.0mm x 25.0mm x 123.0mm
customs tariff number85365019
