Optical sensors - Contrast sensor

OK630181

OK630181
List price
1.235,80 €
amount price discount
1 1.235,80 €
5 1.198,73 € 3% / 37,07 €
10 1.174,01 € 5% / 61,79 €
20 1.136,94 € 8% / 98,86 €
50 1.087,50 € 12% / 148,30 €
On demand
sensor optical, contrast, 38x65x65mm, Other, Sn: 1-500, 24V DC, 2x PNP/NPN, 0-10V/4-20mA, Connector M9 8pin, IP64, 60kHz, Parameterization, With time function, With fiber optics connection, RS232, Programmable via software
Compare

Optical sensors - Contrast sensor

Contrast scanners are capable to distinguish the the visual differences (e.g. reflectivity, brightness differences) between adjacent areas. In general, the devices project a light spot on an object's surface and analyze the reflected light. Fiber optic amplifier versions can be used in addition to the incident light mode also in the transmitted light mode. Contrast scanners are versatile. They can be used, among other things, for position control of printing or color marks, distinction of brightness variations or in the intensity control of luminous objects (like LEDs, displays etc.).

Electrical properties

Number of switching outputs
2
Type of analog output
0 - 10V, 4 - 20mA

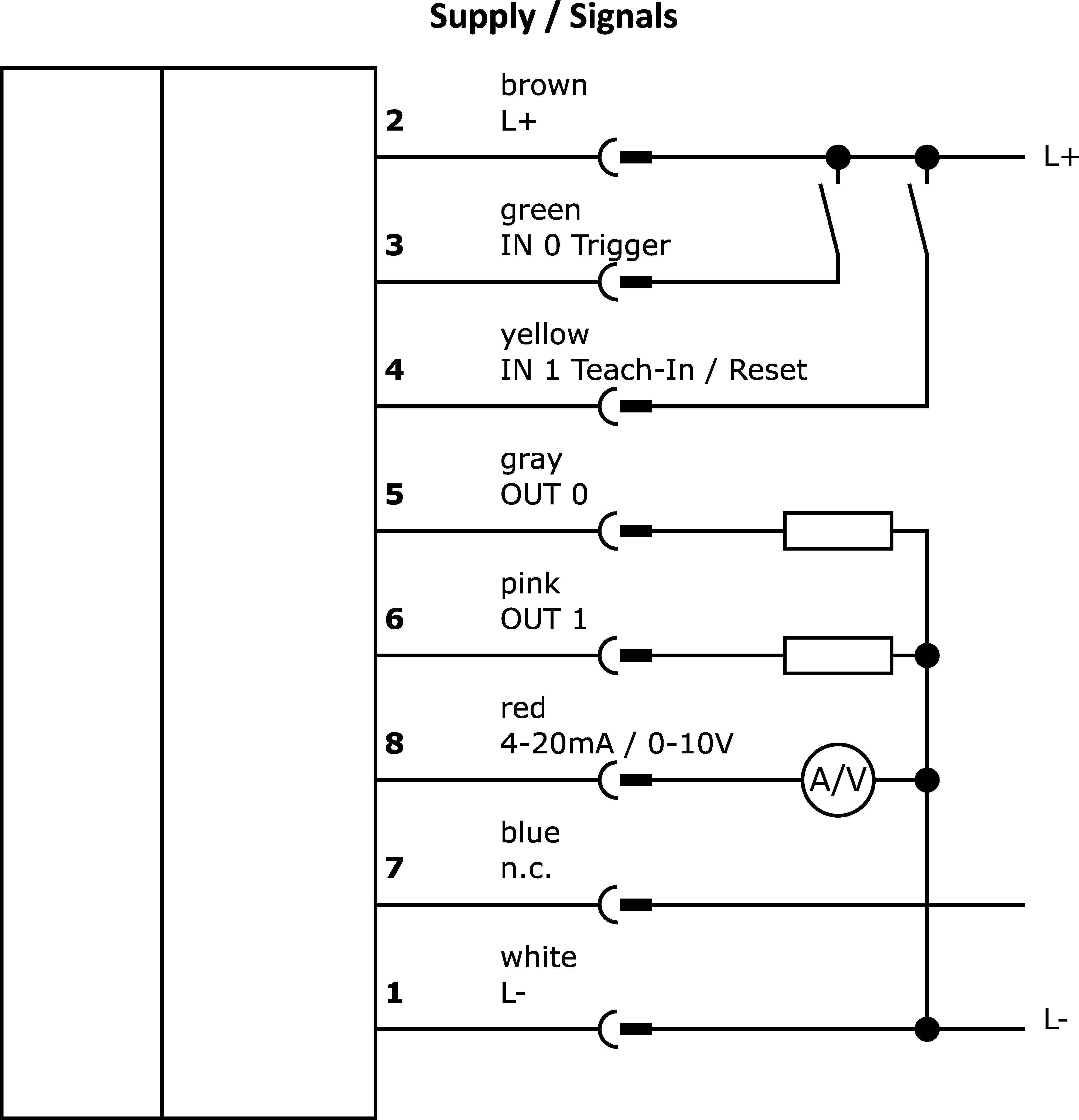

Type of electrical connection
Connector M9
Type of switching output
PNP/NPN
Rated switching current
100mA
Setting procedure
Application software, Parameterization
Short-circuit protection
Yes
No-load current
160mA
Number of pins
8
Switching frequency
60,000Hz
Reverse polarity protection
Yes
Type of plug-in connection, communication interface
Connector M5
Supported communication interface
RS232
Operating voltage (DC)
24V
Measuring range
1 - 500mm
Display
LED display
Time function
Yes

Mechanical properties

Design
Cuboid
Width
65mm
Height
38mm
Length
65mm
Storage temperature
-20 - 85°C
Degree of protection (IP)
IP64
With fiber optics connection
Yes

Optical properties

Light source
other
Light beam form
Point
Transmitted light applications
Yes
Turbidity inspection
Yes

Other properties

Ambient temperature
-20 - 55°C
You can find accessories for OK630181 in these product groups:

Cable connectors M9

Protection cap, teflon M18

Cable connectors M5 USB

Glass fiber optic color sensors, diffuse reflection

Cable connectors M5 Sub-D-socket

M5 screw plug

Programming adapter Ethernet

Glass fiber optic color sensors, UV, diffuse reflection

Classification Class
eClass-7.0 27270906
eClass-7.1 27270906
eClass-8.0 27270906
eClass-9.0 27270906
eClass-9.1 27270906
ETIM-6.0 EC001820
ETIM-7.0 EC001820
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
POP-compliant Yes
TSCA-compliant Yes
IPF Product Group 108 contrast readers
packaging dimensions 99 x 60 x 160mm
gross weight 189g
Customs tariff number 85365019
WEEE number 40951076
