Optical sensors - Through-beam sensors transmitters

OS080070

OS080070
List price
92,70 €
amount price discount
1 92,70 €
5 89,92 € 3% / 2,78 €
10 88,07 € 5% / 4,64 €
20 85,28 € 8% / 7,42 €
50 81,58 € 12% / 11,12 €
Scarce

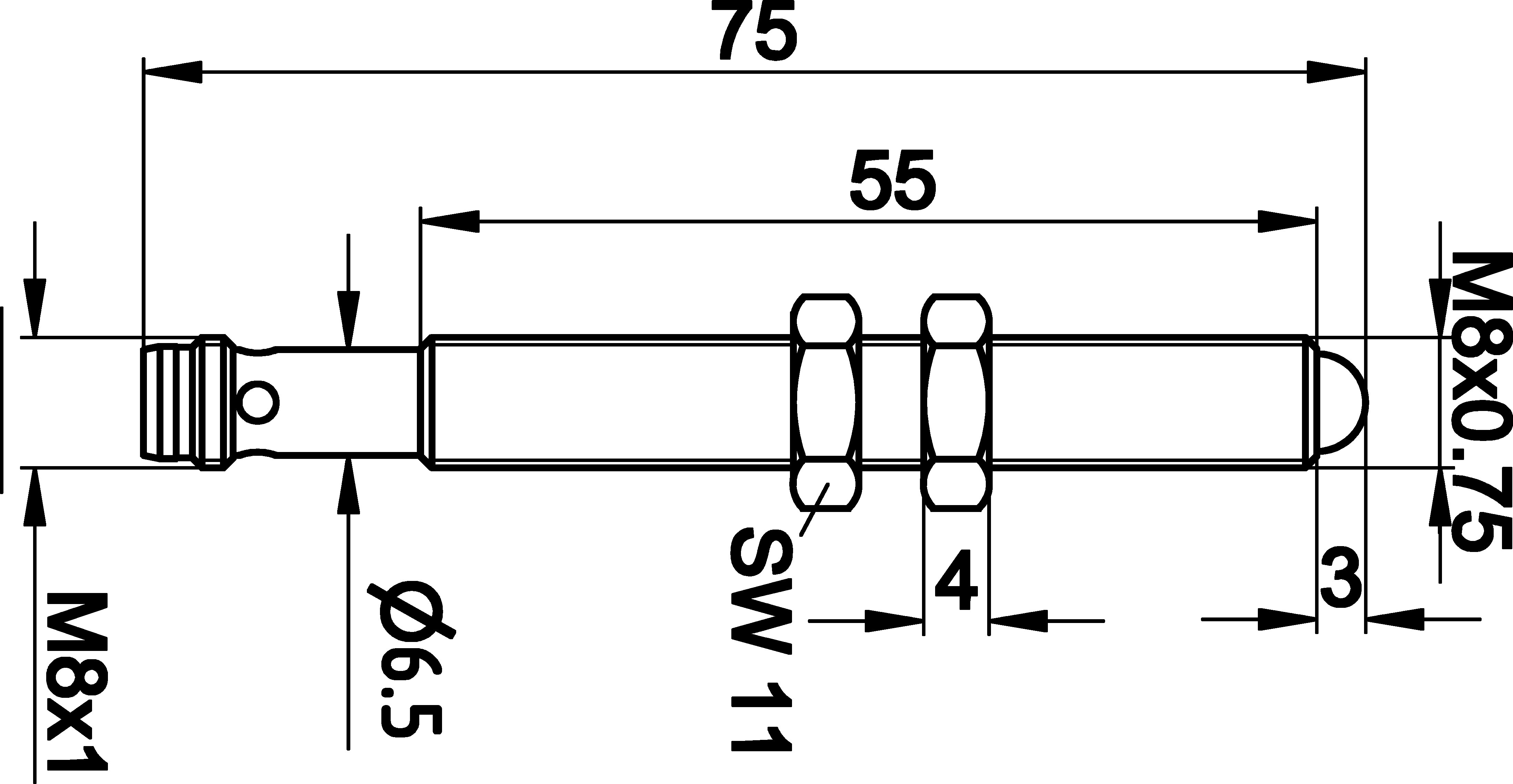

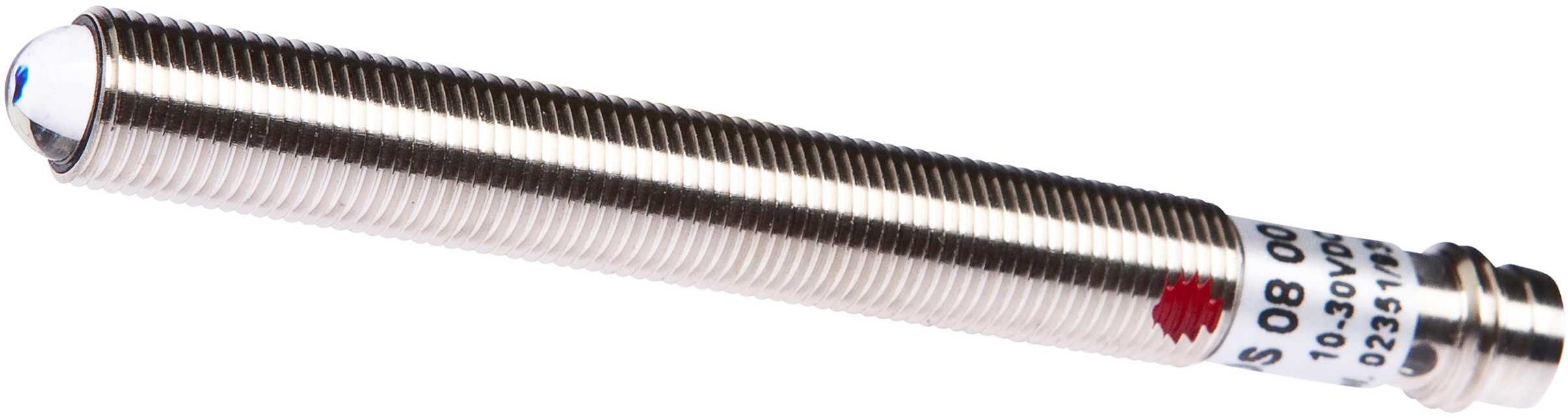

sensor optical, Through-beam sensor transmitter, M8x0.75 75long, Sn: 2.5m, 10-30V DC, Connector M8 3pin, IP65, Brass Nickel-plated+Plastic PC, Infrared light
including 2x Nut
Compare

Optical sensors - Through-beam sensors transmitters

Optical sensors function contactlessly. They detect objects independent of their characteristics (e.g., shape, color, surface structure, material). The basic operating principle is based on the transmission and reception of light. There are three different versions: 1. The through-beam sensor consists of two separate devices, a transmitter and a receiver that are aligned with one another. If the light beam between the two devices is interrupted, the switching output integrated in the receiver changes its status. 2. With the retro-reflective sensor, the transmitter and receiver are located in one device. The emitted light beam is reflected back to the receiver by a reflector that is to be mounted opposite the device. As soon as the light beam is interrupted, the switching output integrated in the device changes its status. 3. With the diffuse reflection sensor, the transmitter and receiver are in one device. The emitted light beam is reflected by the object that is to be detected. As soon as the receiver detects the reflected light, the switching output integrated in the device changes its status.

Electrical properties

Type of electrical connection
Connector M8
No-load current
48mA
No-load current, transmitter
48mA
Number of pins
3
Switching distance
0 - 2,500mm
Reverse polarity protection
Yes
Operating voltage (DC)
10 - 30V

Mechanical properties

Number of cores
3
Design
Cylinder, screw-thread
Thread length
55mm
Thread pitch
0.75mm
Length
75mm
Surface
nickel-plated
Degree of protection (IP)
IP65
Active area material of sensor
Plastic (PC)
Housing material
Brass
Thread dimension
M8

Optical properties

Light source
Infrared light
Light beam form
Point
Wavelength of the sensor
880nm

Other properties

Scope of delivery
Transmitter
Ambient temperature
-25 - 65°C
Version
Through-beam sensor transmitter
You can find accessories for OS080070 in these product groups:

Cable sockets M8-socket M8-connector 3-wire

Cable sockets M8-socket with LED M8-connector 3-wire

Cable sockets M8-socket with LED M12-connector 3-wire

Cable sockets M8-socket M12-connector 3-wire

Cable sockets M8 3-pin field-attachable

Mounting system for AY000115

Cable sockets M8 3-wire

Accessories OS08

Adapter M8 socket 3-pin / M8 connector 4-pin

Adapter M8 socket 3-pin / M12 connector 3-pin

Fixing material design M8

Infrared detector

Classification Class
eClass-7.0 27270901
eClass-7.1 27270901
eClass-8.0 27270901
eClass-9.0 27270901
eClass-9.1 27270901
ETIM-6.0 EC002716
ETIM-7.0 EC002716
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
OzDS-compliant Yes
POP-compliant Yes
IPF Product Group 100 optical sensors
packaging dimensions 77 x 25 x 123mm
gross weight 32g
Customs tariff number 85365019
WEEE number 40951076
