sensor optical, Through-beam sensor transmitter, 67x12x8mm, Sn: 2.5m, 10-30V DC, Connector M8 3pin, IP65, Aluminum Anodised+Plastic PC, Infrared light
Compare
Optical sensors - Through-beam sensors transmitters
Optical sensors function contactlessly. They detect objects independent of their characteristics (e.g., shape, color, surface structure, material). The basic operating principle is based on the transmission and reception of light. There are three different versions: 1. The through-beam sensor consists of two separate devices, a transmitter and a receiver that are aligned with one another. If the light beam between the two devices is interrupted, the switching output integrated in the receiver changes its status. 2. With the retro-reflective sensor, the transmitter and receiver are located in one device. The emitted light beam is reflected back to the receiver by a reflector that is to be mounted opposite the device. As soon as the light beam is interrupted, the switching output integrated in the device changes its status. 3. With the diffuse reflection sensor, the transmitter and receiver are in one device. The emitted light beam is reflected by the object that is to be detected. As soon as the receiver detects the reflected light, the switching output integrated in the device changes its status.
Electrical properties
- Type of electrical connection
- Connector M8
- No-load current
- 48mA
- No-load current, transmitter
- 48mA
- Number of pins
- 3
- Switching distance
- 0 - 2,500mm
- Reverse polarity protection
- Yes
- Operating voltage (DC)
- 10 - 30V
Mechanical properties
- Design
- Cuboid
- Width
- 8mm
- Height
- 67mm
- Length
- 12mm
- Surface
- teflon coated
- Degree of protection (IP)
- IP65
- Active area material of sensor
- Plastic (PC)
- Housing material
- Aluminum
Optical properties
- Light source
- Infrared light
- Light beam form
- Point
- Wavelength of the sensor
- 880nm
Other properties
- Scope of delivery
- Transmitter
- Ambient temperature
- -25 - 65°C
- Through-beam sensor transmitter
You can find accessories for OS110070
in these product groups:
Cable sockets M8-socket M8-connector 3-wire
Cable sockets M8-socket M12-connector 3-wire
Cable sockets M8-socket with LED M8-connector 3-wire
Cable sockets M8-socket with LED M12-connector 3-wire
Protection cap, teflon M8
Infrared detector
Mounting system for AY000119
Available
Cable sockets M8 3-wire
Fixing material design 11
Available
Accessories OS11
Adapter M8 socket 3-pin / M12 connector 3-pin
Adapter M8 socket 3-pin / M8 connector 4-pin
Cable sockets M8 3-pin field-attachable
Datasheets
Drawings
-
jpgBlueprintJPG-file, 207 KB
-
dwg2DDWG-file, 181 KB
-
stp3DSTP-file, 81 KB
-

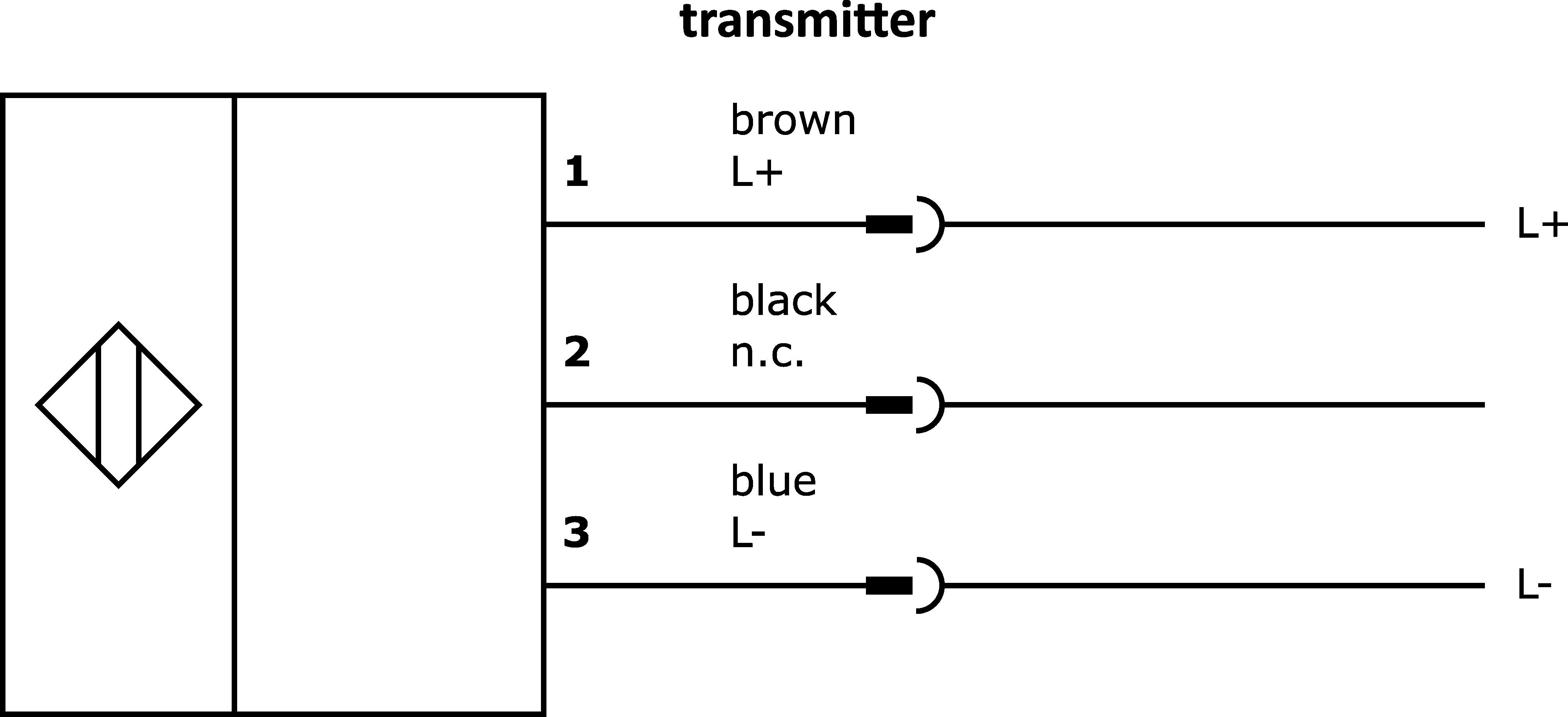

pngWiring diagram - internetPNG-file, 8.1 KB
