high performance light barriers - amplifiers

OV580905

OV580905
List price
138,60 €
Not in stock
high performance light barrier amplifier, 76x78x40mm, PNP/NPN Change-over contact (NO/NC), Plug-in connection 11pin, IP40, Plastic, Turn-off delay 10s

high-performance light barriers

24V DC,Relais+pnp/npn,Zeit0-10s

Mechanical features

Mounting method
Pluggable
Height
76.5mm
Design
Cuboid
Housing material
Plastic
Width
40mm
Depth
78.5mm
Length
78.5mm
Degree of protection (IP)
IP40

Electrical features

Operating voltage
24V
Turn-on delay
10000ms
Power consumption
5W

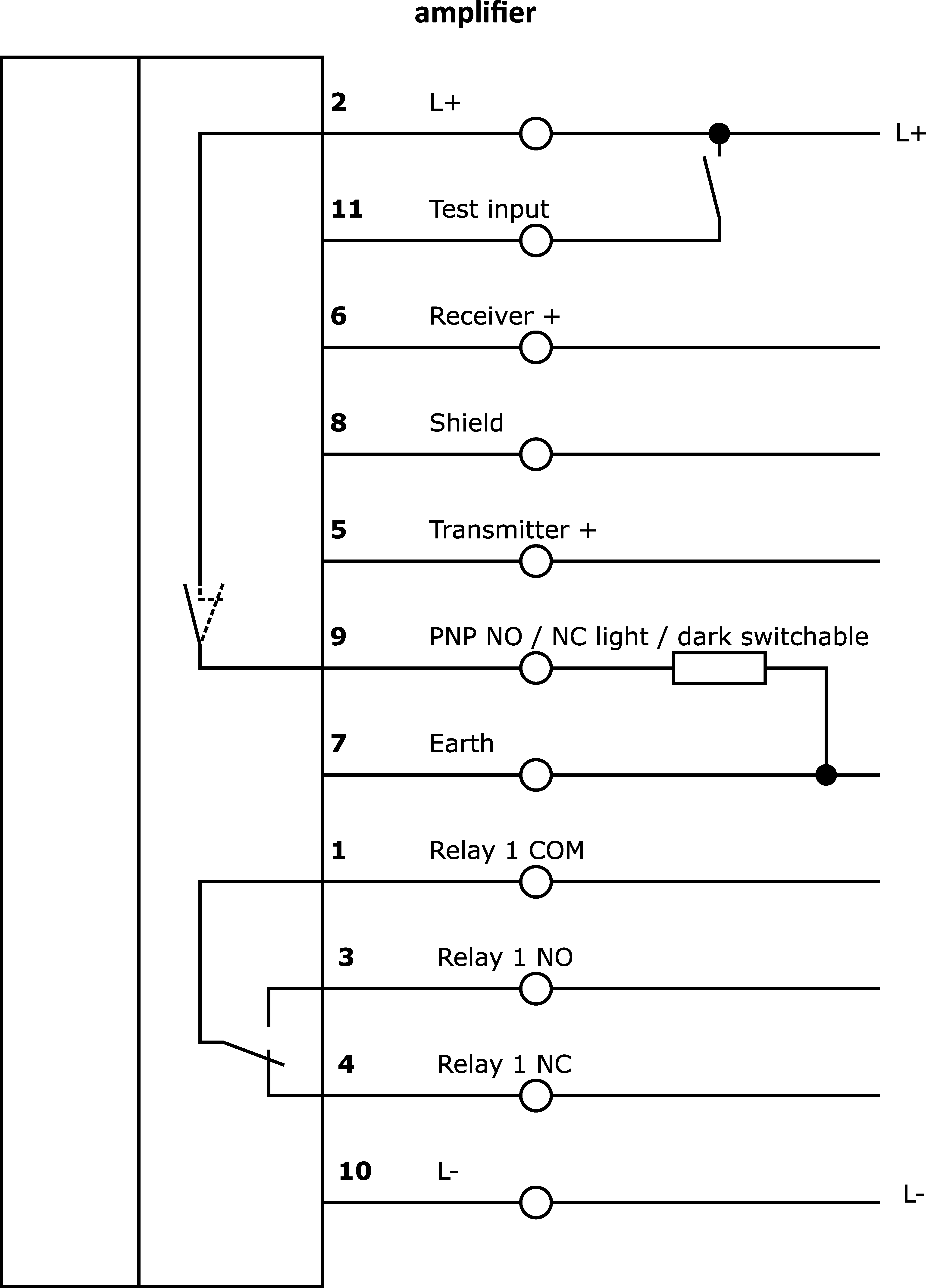

Number of pins
11
Switching voltage
24V
Type of electrical connection
Plug-in connection
Type of switching function
Change-over contact (NO/NC)
Rated switching current
5A
Number of output circuits, transistor npn
1
Input voltage tolerance
20%
Malfunction message output
no
Number of presets to be set
2
Switching voltage AC
230
Voltage type
DC
Number of channels
1
Switching capacity
2VA
Type of voltage supply
Active
Switching frequency
18Hz
Type of switching output
PNP/NPN
Setting procedure
IV001498
Output circuit, relay change-over contact
1
Number of output circuits, transistor pnp
1
Max. switching distance
70m
No-load current
83mA
Switching voltage DC
24V
High performance light barriers
yes

Other features

Operating temperature
-25 - 50°C

High performance light barrier, transmitter

High performance light barriers, receiver

Accessories OV58

ClassificationClass
eClass 7.027210121
eClass 7.127210121
eClass 8.027210121
eClass 9.027210121
eClass 9.127210121
ETIM-6.0EC001485
ETIM-7.0EC001485
IPF Product Group101
PropertyValue
shipping weight0.16kg
packaging dimensions80mm x 45.0mm x 120mm
customs tariff number85365019
