high performance light barriers - amplifiers

OV580915

OV580915
List price
160,70 €
Not in stock

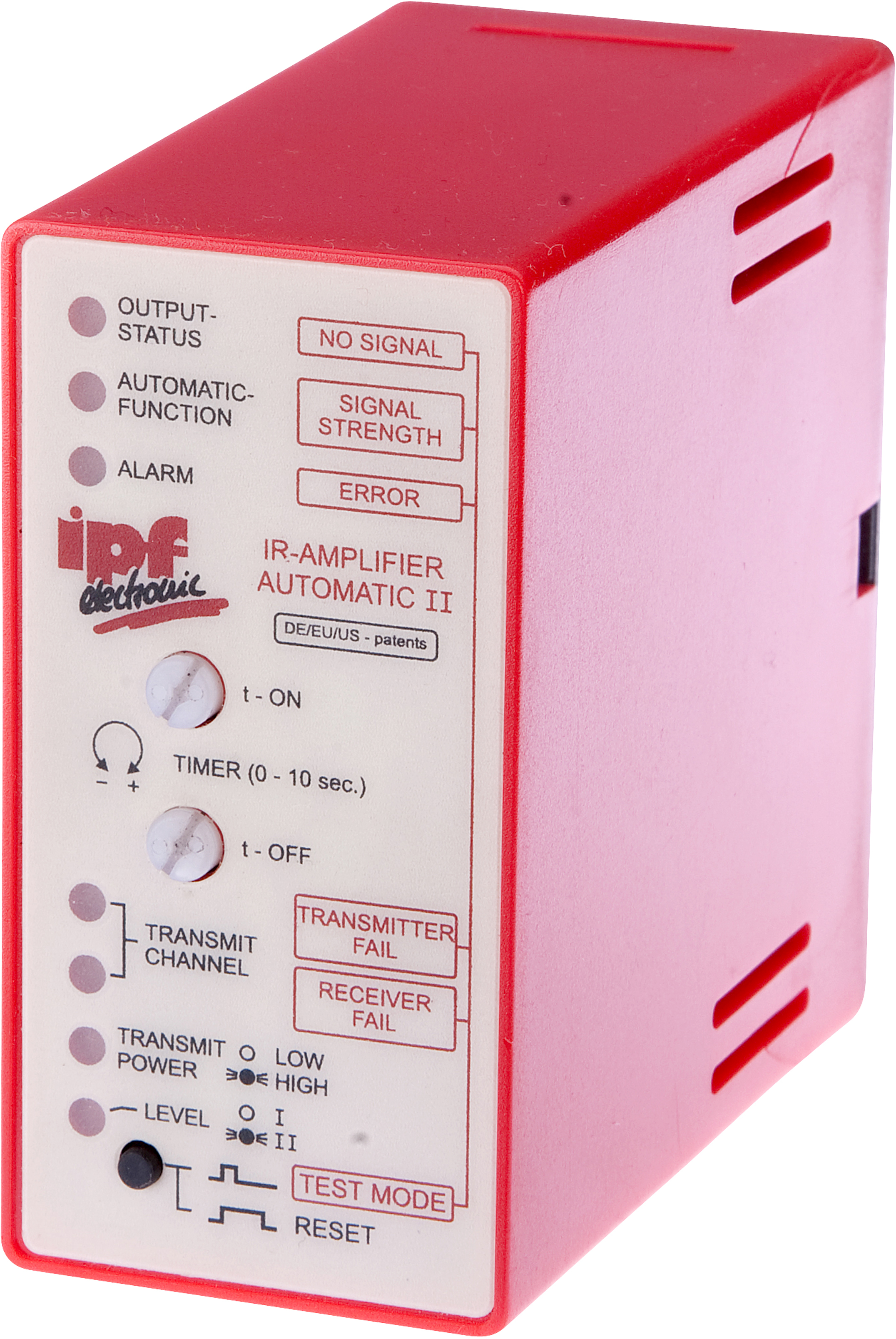

high performance light barrier amplifier, 76x78x40mm, Change-over contact (NO/NC), Plug-in connection 11pin, IP40, Plastic, Malfunction message output, Turn-off delay 10s

high-performance light barriers

24V DC,Relais,auto,Zeit0-10s

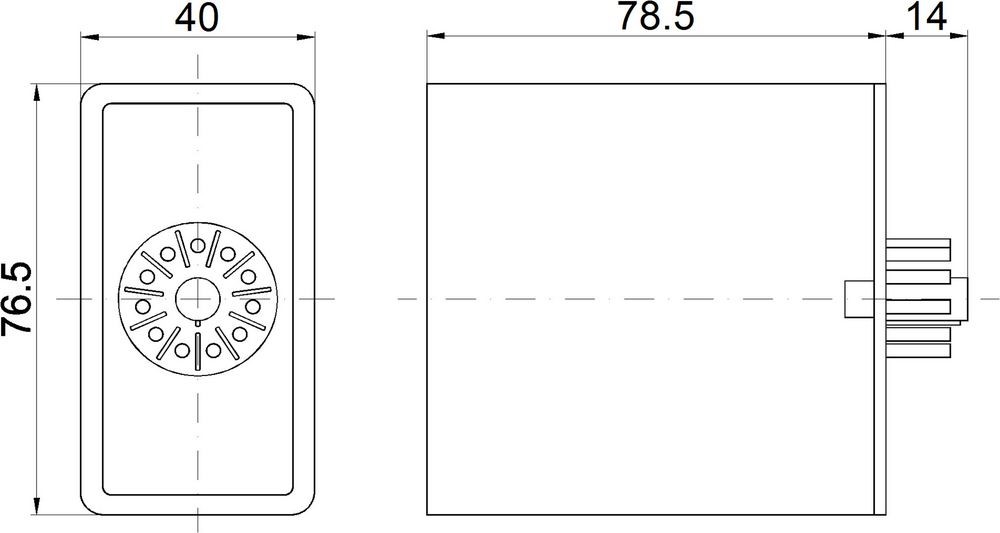

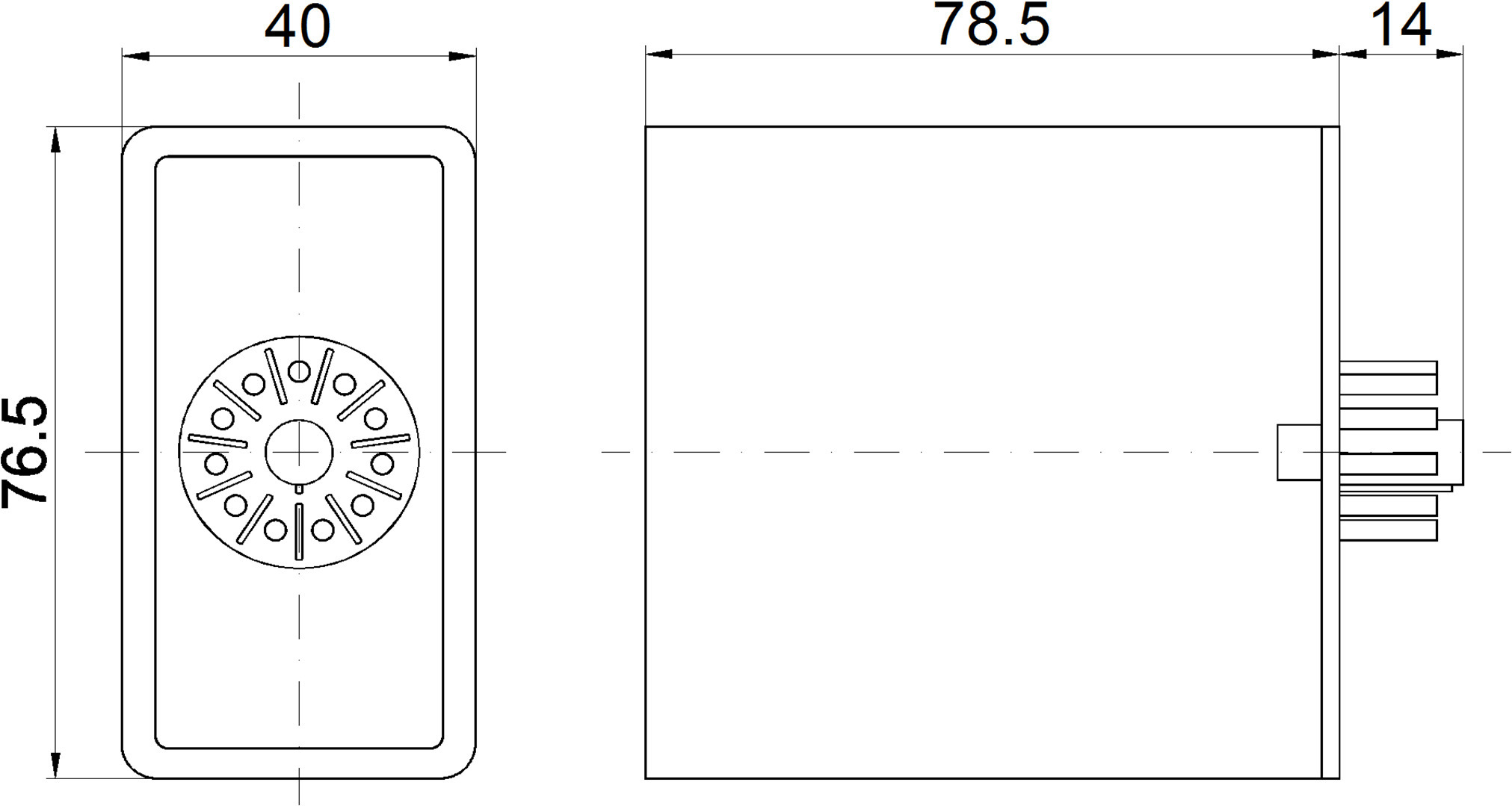

Mechanical features

Mounting method
Pluggable
Height
76.5mm
Design
Cuboid
Housing material
Plastic
Width
40mm
Depth
78.5mm
Length
78.5mm
Degree of protection (IP)
IP40

Electrical features

Operating voltage
24V
Turn-on delay
10000ms
Power consumption
2.2W
Number of pins
11
Switching voltage
24V
Type of electrical connection
Plug-in connection
Rated switching current
5A
Input voltage tolerance
20%
Malfunction message output
yes
yes
Switching voltage DC
24V
High performance light barriers
yes
Voltage type
DC
Number of channels
1
Switching capacity
120VA
Type of voltage supply
Active
Switching frequency
18Hz
Type of switching function
Change-over contact (NO/NC)
Output circuit, relay change-over contact
1
Max. switching distance
50m
No-load current
92mA
Number of presets to be set
4
Switching voltage AC
230

Other features

Operating temperature
-25 - 50°C

High performance light barrier, transmitter

High performance light barriers, receiver

Accessories OV58

ClassificationClass
eClass 7.027210121
eClass 7.127210121
eClass 8.027210121
eClass 9.027210121
eClass 9.127210121
ETIM-6.0EC001485
ETIM-7.0EC001485
IPF Product Group101
PropertyValue
shipping weight0.16kg
packaging dimensions70mm x 40mm x 125.0mm
customs tariff number85365019
