high performance light barriers - amplifiers

OV580980

OV580980
List price
107,40 €
Available

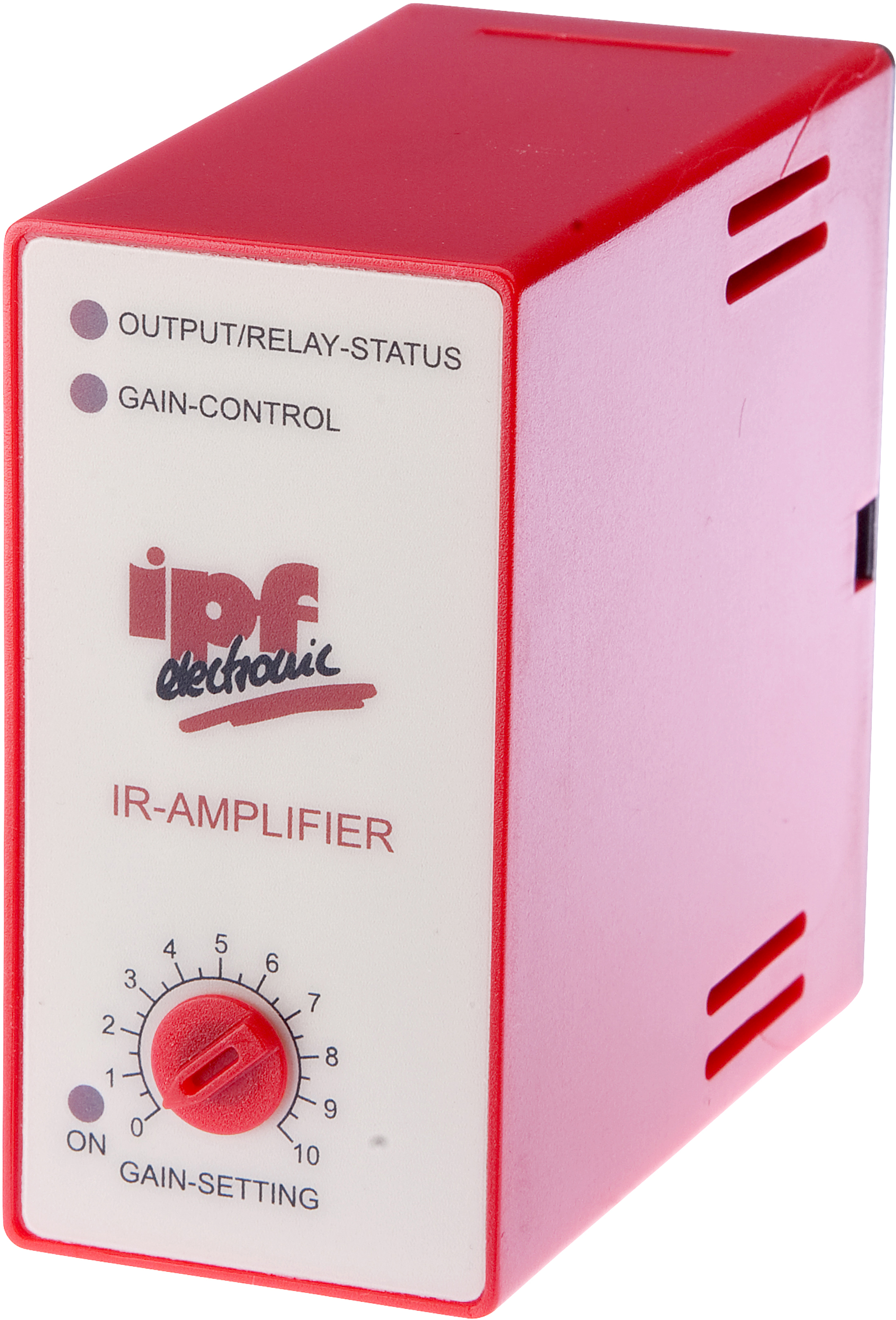

high performance light barrier amplifier, 76x78x40mm, Change-over contact (NO/NC), Plug-in connection 11pin, IP40, Plastic

high-performance light barriers

24V DC,Relais

Mechanical features

Mounting method
Pluggable

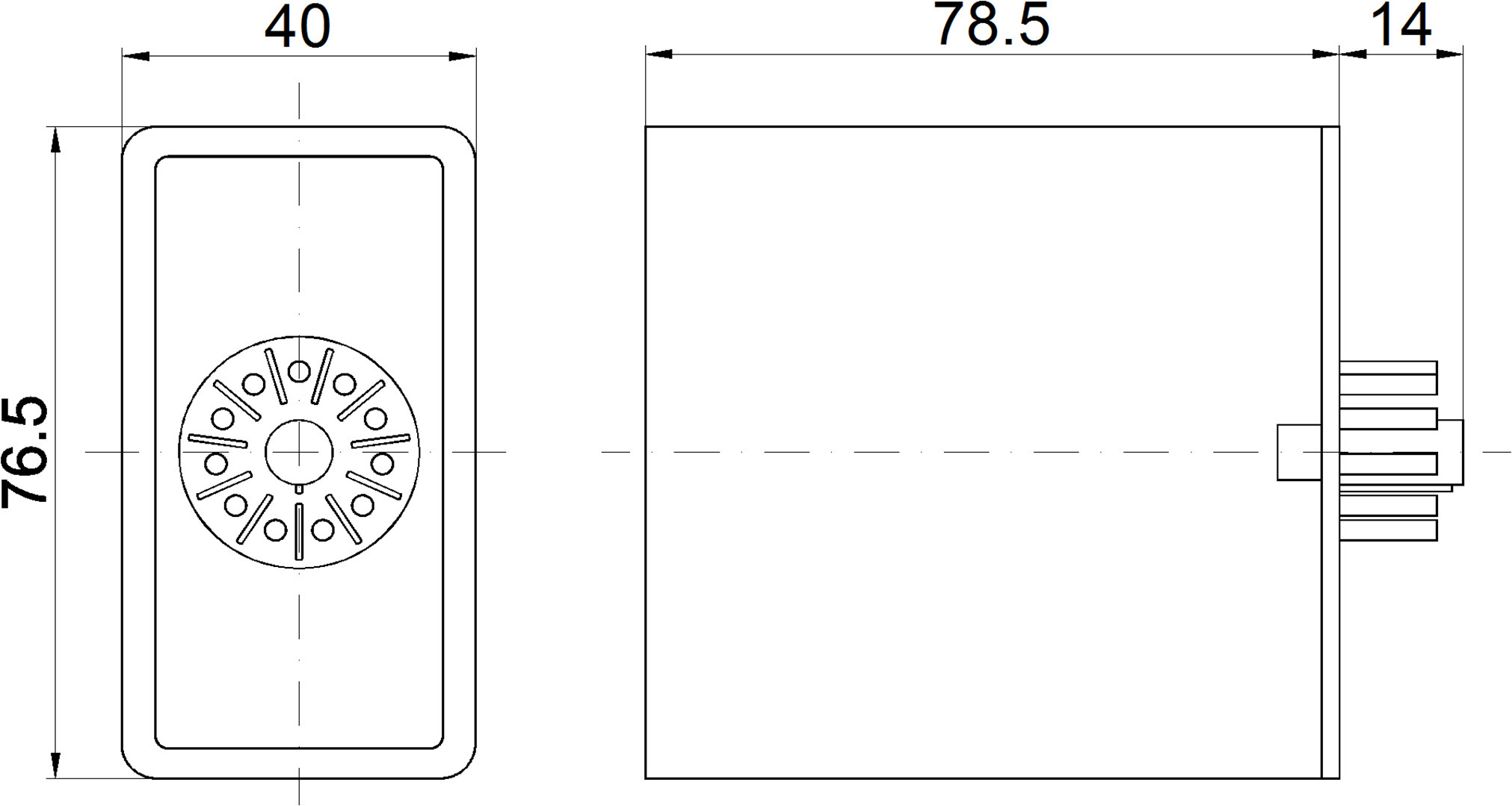

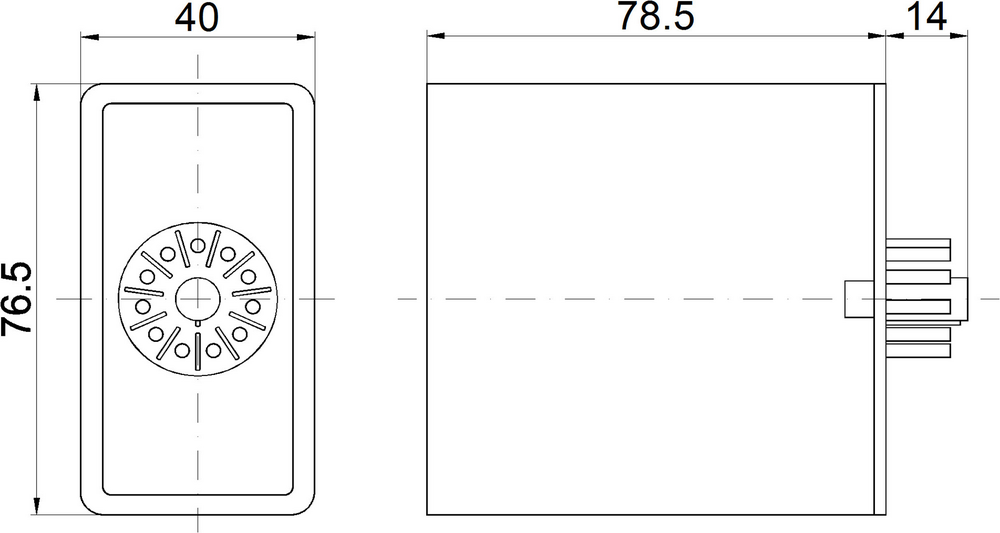

Height
76.5mm
Design
Cuboid
Housing material
Plastic
Width
40mm
Depth
78.5mm
Length
78.5mm
Degree of protection (IP)
IP40

Electrical features

Operating voltage
24V
Number of channels
1
Switching capacity
120VA
Type of voltage supply
Active
Switching frequency
18Hz
Type of switching function
Change-over contact (NO/NC)
Rated switching current
5A
Input voltage tolerance
20%
Malfunction message output
no
Switching voltage DC
24V
High performance light barriers
yes
Voltage type
DC
Power consumption
2W
Number of pins
11
Switching voltage
24V
Type of electrical connection
Plug-in connection
Setting procedure
IV001498

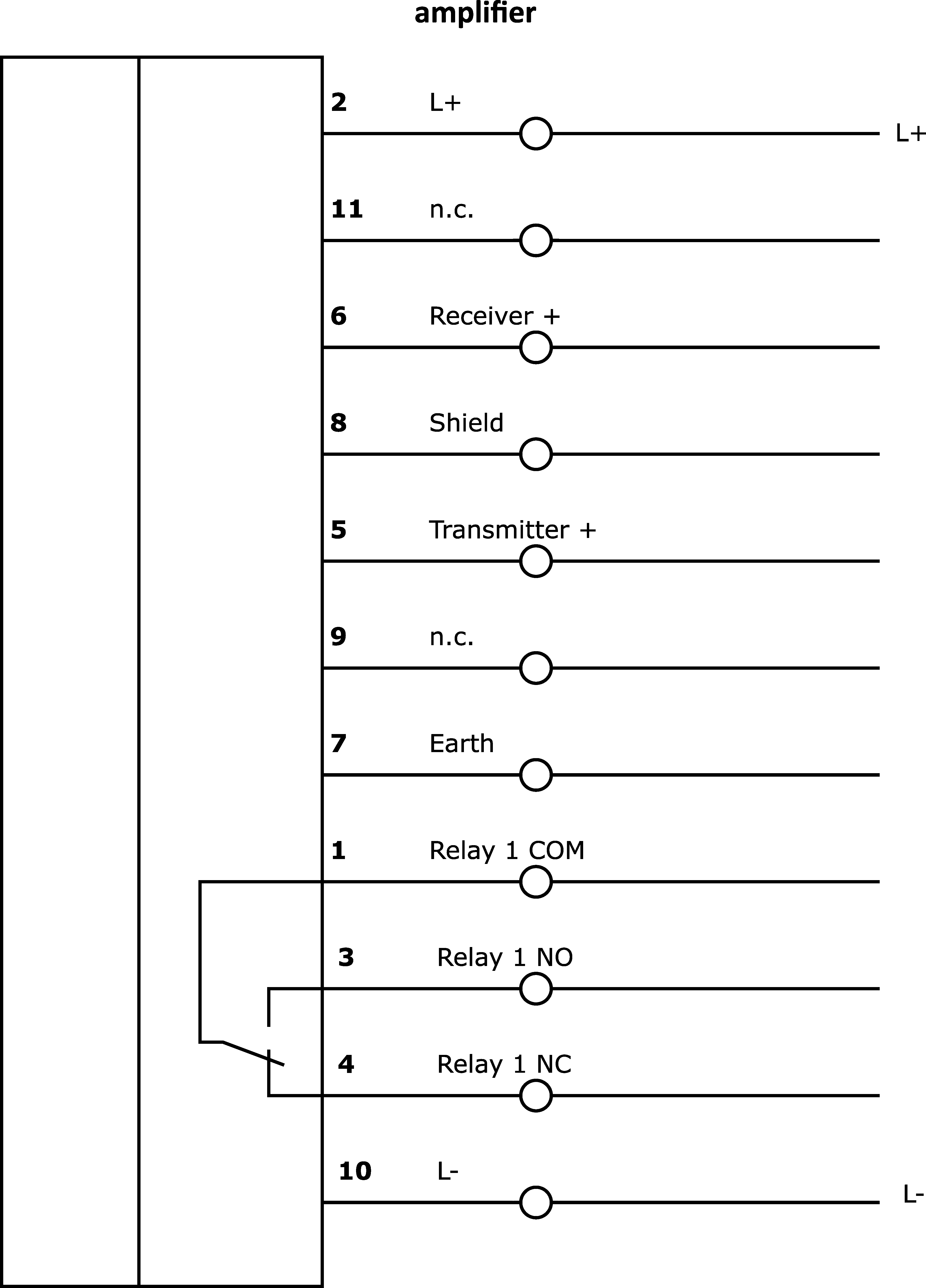

Output circuit, relay change-over contact
1
Max. switching distance
70m
No-load current
83mA
Switching voltage AC
230

Other features

Operating temperature
-25 - 50°C

High performance light barrier, transmitter

High performance light barriers, receiver

Accessories OV58

ClassificationClass
eClass 7.027210121
eClass 7.127210121
eClass 8.027210121
eClass 9.027210121
eClass 9.127210121
ETIM-6.0EC001485
ETIM-7.0EC001485
IPF Product Group101
PropertyValue
shipping weight0.15kg
packaging dimensions83.0mm x 47.0mm x 120mm
customs tariff number85365019
