High performance light barriers - Amplifier
OV584925
| amount | price | discount |
|---|---|---|
| 1 | 295,80 € | – |
| 5 | 286,93 € | 3% / 8,87 € |
| 10 | 281,01 € | 5% / 14,79 € |
| 20 | 272,14 € | 8% / 23,66 € |
| 50 | 260,30 € | 12% / 35,50 € |
On demand

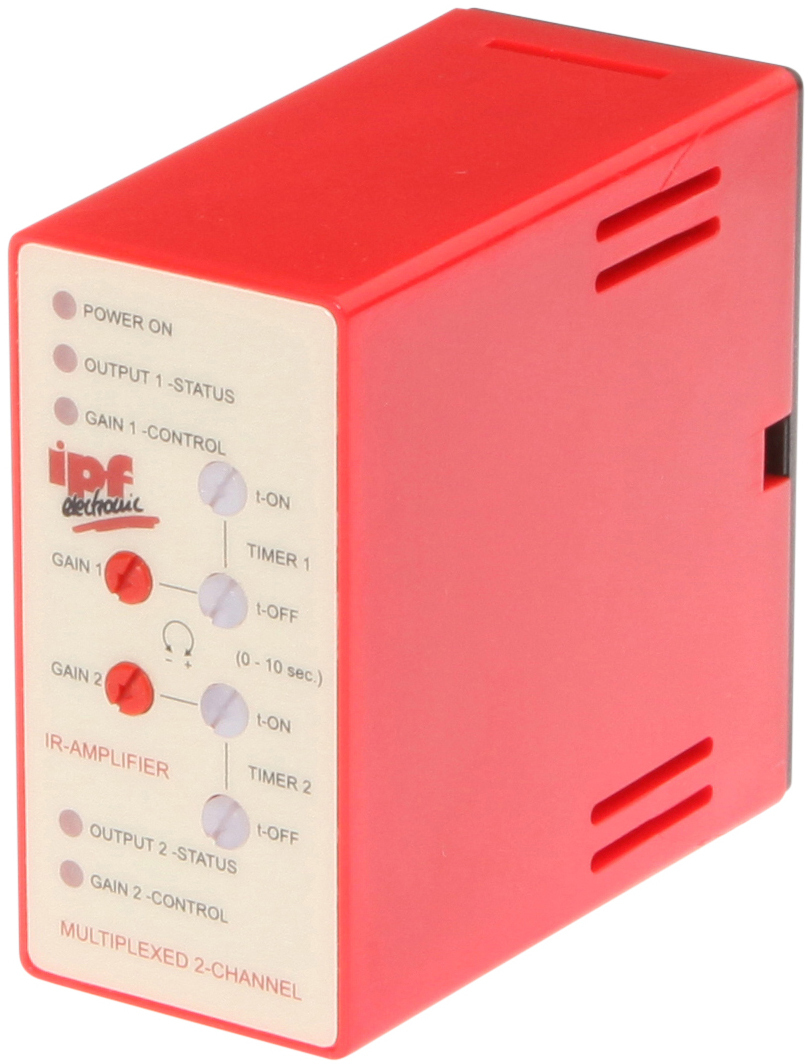

High performance light barrier, amplifier, 76x78x40mm, 2x multiplex, 230V AC, NO (NO), Plug-in connection 11pin, IP40, Plastic, Turn-off delay 15s
Compare
High performance light barriers - Amplifier
Electrical properties
- Number of presets to be set
- 2
- Number of channels
- 2
- Number of switching outputs
- 2
- Number of normally open contacts
- 2
- Type of switching function
- Normally open contact (NO)
- Type of electrical connection
- Plug-in connection
- Type of switching output
- Relay contact
- Turn-off delay
- 0 - 15ms
- Rated switching current
- 5,000mA
- Input voltage tolerance
- 10%
- Turn-on delay
- 0 - 15s
- Setting procedure
- Potentiometer
- No-load current
- 18mA
- Power consumption
- 4.1VA
- Number of pins
- 11
- Switching distance
- 0 - 50,000mm
- Switching frequency
- 20Hz
- Switching capacity
- 120VA
- Switching voltage
- 230V
- Switching voltage AC
- 230V
- Switching voltage DC
- 24V
- Operating voltage (AC 50Hz)
- 207 - 253V
- Display
- LED display
Mechanical properties
- Design
- Cuboid
- Width
- 40mm
- Height
- 76.5mm
- Length
- 78.5mm
- Mounting method
- Relay base
- Degree of protection (IP)
- IP40
- Housing material
- Plastic
Optical properties
- Range (transmitter with increased power, receiver with short design)
- 15
- Range (transmitter with increased power, receiver with normal design)
- 30
- Range (transmitter with maximum power, receiver with short design)
- 25
- Range (transmitter with maximum power, receiver with normal design)
- 50
- Range (transmitter with normal power, receiver with short design)
- 10
- Range (transmitter with normal power, receiver with normal design)
- 20
Other properties
- Ambient temperature
- -25 - 50°C
You can find accessories for OV584925
in these product groups:
Accessories OV58
High performance light barrier, transmitter
High performance light barriers, receiver
Datasheets
Manuals
Drawings
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 325 KB
-
pdfMaterial compliancePDF-file, 406 KB
-
pdfCE declaration of conformityPDF-file, 253 KB
Miscellaneous
| Classification | Class |
|---|---|
| eClass-7.0 | 27210121 |
| eClass-7.1 | 27210121 |
| eClass-8.0 | 27210121 |
| eClass-9.0 | 27210121 |
| eClass-9.1 | 27210121 |
| ETIM-6.0 | EC001485 |
| ETIM-7.0 | EC001485 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| IPF Product Group | 101 high performance through-beam sensors and amplifiers |
| packaging dimensions | 89 x 45 x 120mm |
| gross weight | 277g |
| Customs tariff number | 85365080 |
| WEEE number | 40951076 |
