High performance light barriers - Amplifier

OV62C903

OV62C903
List price
220,70 €
amount price discount
1 220,70 € –
5 214,08 € 3% / 6,62 €
10 209,67 € 5% / 11,04 €
20 203,04 € 8% / 17,66 €
50 194,22 € 12% / 26,48 €
Scarce
High performance light barrier, amplifier, 58x90x36mm, 24V, NO (NO), 0-10V, Clamp, IP20, Plastic

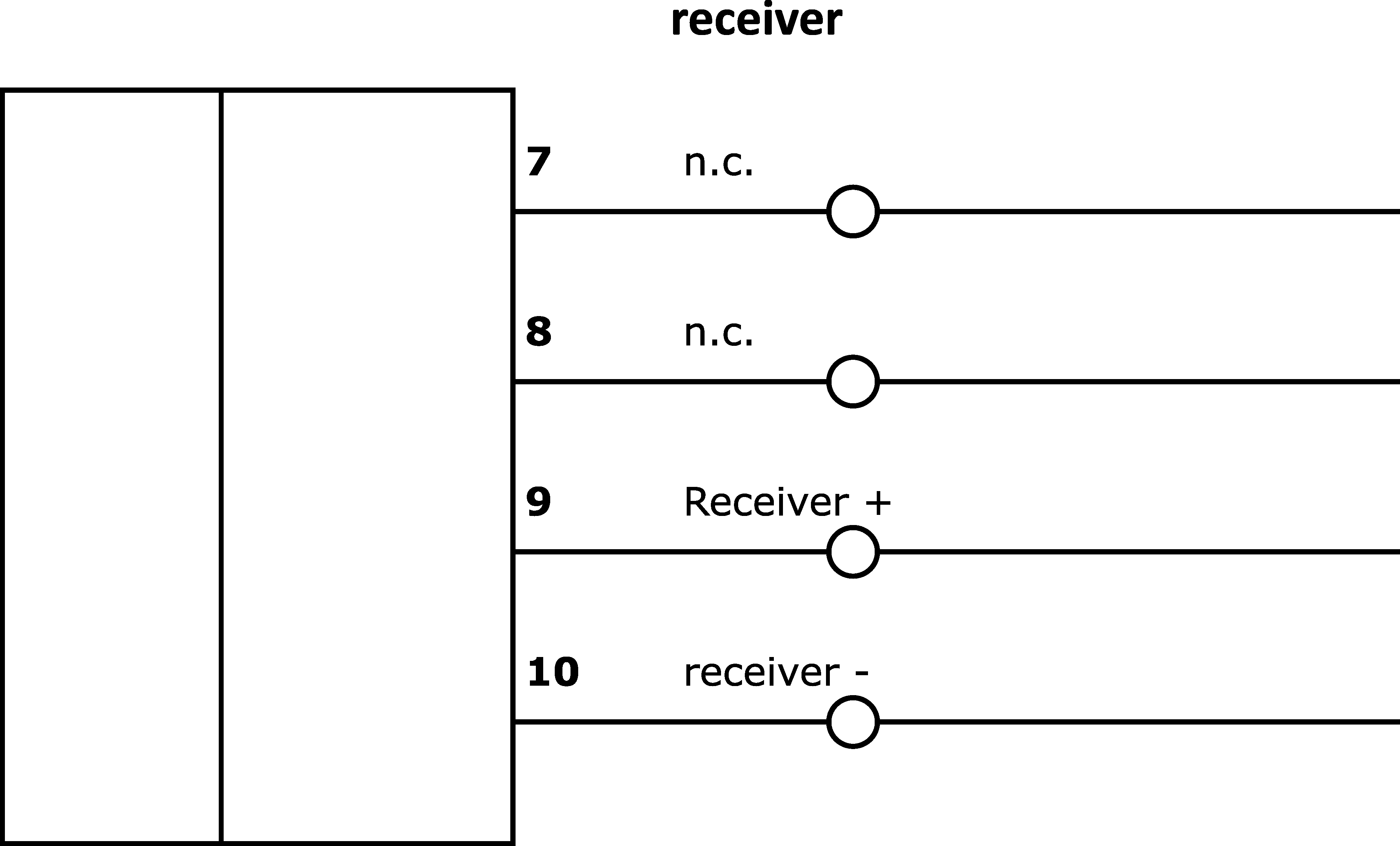

circuit diagram
Compare

High performance light barriers - Amplifier

Electrical properties

Number of channels
1
Number of normally open contacts
1
Type of switching function
Normally open contact (NO)
Type of analog output
0 - 10V
Type of electrical connection
Clamped terminal connection
Type of switching output
PNP
Rated switching current
100mA
Input voltage tolerance
20%
Setting procedure
Potentiometer
Short-circuit protection
Yes
No-load current
100mA
Power consumption
2.4VA
Switching capacity
6VA
Switching voltage
24V
Switching voltage AC
60V
Switching voltage DC
60V
Operating voltage (DC)
24V
Display
LED display

Mechanical properties

Design
Cuboid
Width
35.5mm
Height
58.5mm
Length
90mm
Mounting method
Top hat rail
Degree of protection (IP)
IP20
Housing material
Plastic

Other properties

Ambient temperature
-25 - 50°C
Print data

High performance light barriers, receiver

OE106001
OE106001
High performance light barrier, receiver, Ø10mm 45long, Normal design, Anschluss an Verstärker, Cable 2pin 5m PVC, IP67,…
93,60 €
Your price
Scarce
OE106003
OE106003
High performance light barrier, receiver, Ø10mm 45long, Normal design, Anschluss an Verstärker, Cable 2pin 15m PVC,…
106,40 €
Your price
Scarce
OE106070
OE106070
High performance light barrier, receiver, Ø10mm 47long, Normal design, Anschluss an Verstärker, Connector M8, IP67,…
95,10 €
Your price
Available
OE126001
OE126001
High-power photoelectric sensor receiver, M12x1 45long, standard design, connection to amplifier, cable tail 2-pin 5m…
105,30 €
Your price
Available
OE126003
OE126003
High-power photoelectric sensor receiver, M12x1 45long, standard design, connection to amplifier, 2-pin PVC cable 15m,…
113,80 €
Your price
Available
OE126020
OE126020
High-power photoelectric sensor receiver, M12x1 55 long, standard design, connection to amplifier, M12 plug connector,…
106,40 €
Your price
Available
OE1260V1
OE1260V1
High-power photoelectric sensor receiver, M12x1 45long, standard design, connection to amplifier, cable tail 2-pin 5m…
113,80 €
Your price
On demand
OE126303
OE126303
High-power photoelectric sensor receiver, M12x1 25long, short design, connection to amplifier, cable tail 2-pole 15m…
113,80 €
Your price
Scarce
OE136070
OE136070
High performance light barrier, receiver, 67x12x12mm, Normal design, Anschluss an Verstärker, Connector M8, IP67,…
112,30 €
Your price
Available

Accessories OV54/62/63/64/65

AV000108
AV000108
accessories miscellaneous, Surface mounted housing, 126x175x125mm, -40-120°C, IP66, Plastic PC, Gray, Transparent, With…
84,90 €
Your price
On demand
AV000109
AV000109
accessories miscellaneous, Surface mounted housing, 126x125x125mm, -40-120°C, IP66, Plastic PC, Gray, Transparent, With…
64,70 €
Your price
On demand
AV000110
AV000110
accessories miscellaneous, Surface mounted housing, 152x250x175mm, -40-120°C, IP66, Plastic PC, Gray, Transparent, With…
134,00 €
Your price
On demand

High performance light barrier, transmitter

OS106001
OS106001
High performance light barrier, transmitter, Ø10mm 45long, Normal power (40mW), 12°, Anschluss an Verstärker, Cable 5m…
47,80 €
Your price
Scarce
OS106003
OS106003
High performance light barrier, transmitter, Ø10mm 45long, Normal power (40mW), 12°, Anschluss an Verstärker, Cable 15m…
59,30 €
Your price
Scarce
OS106070
OS106070
High performance light barrier, transmitter, Ø10mm 47long, Normal power (40mW), 12°, Anschluss an Verstärker, Connector…
52,10 €
Your price
Available
OS106103
OS106103
High performance light barrier, transmitter, Ø10mm 45long, Maximum power (350mW), 6°, Anschluss an Verstärker, Cable 15m…
75,70 €
Your price
On demand
OS106170
OS106170
High performance light barrier, transmitter, Ø10mm 47long, Maximum power (350mW), 6°, Anschluss an Verstärker, Connector…
63,40 €
Your price
Scarce
OS126001
OS126001
High-power photoelectric sensor transmitter, M12x1 45long, normal output (40mW), 12°, connection to amplifier, cable…
63,40 €
Your price
Available
OS126003
OS126003
High-power photoelectric sensor transmitter, M12x1 45long, normal output (40mW), 12°, connection to amplifier, cable…
69,20 €
Your price
Available
OS126008
OS126008
High-power photoelectric sensor transmitter, M12x1 45long, increased power (70mW), 20°, connection to amplifier, 15m PVC…
74,90 €
Your price
On demand
OS126020
OS126020
High-power photoelectric sensor transmitter, M12x1 55long, normal output (40mW), 12°, connection to amplifier, M12…
61,70 €
Your price
Available
OS126026
OS126026
High-power photoelectric sensor transmitter, M12x1 55long, increased power (70mW), 20°, connection to amplifier, M12…
90,90 €
Your price
On demand
OS1260V1
OS1260V1
High-power photoelectric sensor transmitter, M12x1 45long, normal power (40mW), 12°, connection to amplifier, cable tail…
69,20 €
Your price
On demand
OS126101
OS126101
High-power photoelectric sensor transmitter, M12x1 45long, maximum power (350mW), 6°, connection to amplifier, cable…
77,90 €
Your price
On demand
OS126120
OS126120
High-power photoelectric sensor transmitter, M12x1 55long, maximum power (350mW), 6°, connection to amplifier, M12…
79,40 €
Your price
Available
OS126303
OS126303
High-power photoelectric sensor transmitter, M12x1 24long, maximum power (350mW), 6°, connection to amplifier, cable…
77,90 €
Your price
Scarce
OS136070
OS136070
High performance light barrier, transmitter, 67x12x12mm, Normal power (40mW), 12°, Anschluss an Verstärker, Connector M8…
56,40 €
Your price
Available
Classification Class
eClass-7.0 27210121
eClass-7.1 27210121
eClass-8.0 27210121
eClass-9.0 27210121
eClass-9.1 27210121
ETIM-6.0 EC001485
ETIM-7.0 EC001485
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
IPF Product Group 101 high performance through-beam sensors and amplifiers
packaging dimensions 60 x 65 x 100mm
gross weight 132g
Customs tariff number 85365019
WEEE number 40951076
