High performance light barriers - Amplifier

OV630840

OV630840
List price
252,60 €
amount price discount
1 252,60 €
5 245,02 € 3% / 7,58 €
10 239,97 € 5% / 12,63 €
20 232,39 € 8% / 20,21 €
50 222,29 € 12% / 30,31 €
Scarce
High performance light barrier, amplifier, 58x95x53mm, 2x multiplex, 24V, NO (NO), Clamp, IP20, Plastic, Malfunction message output
Compare

High performance light barriers - Amplifier

Electrical properties

Number of presets to be set
2
Number of channels
2
Number of switching outputs
2
Number of normally open contacts
2
Type of switching function
Normally open contact (NO)

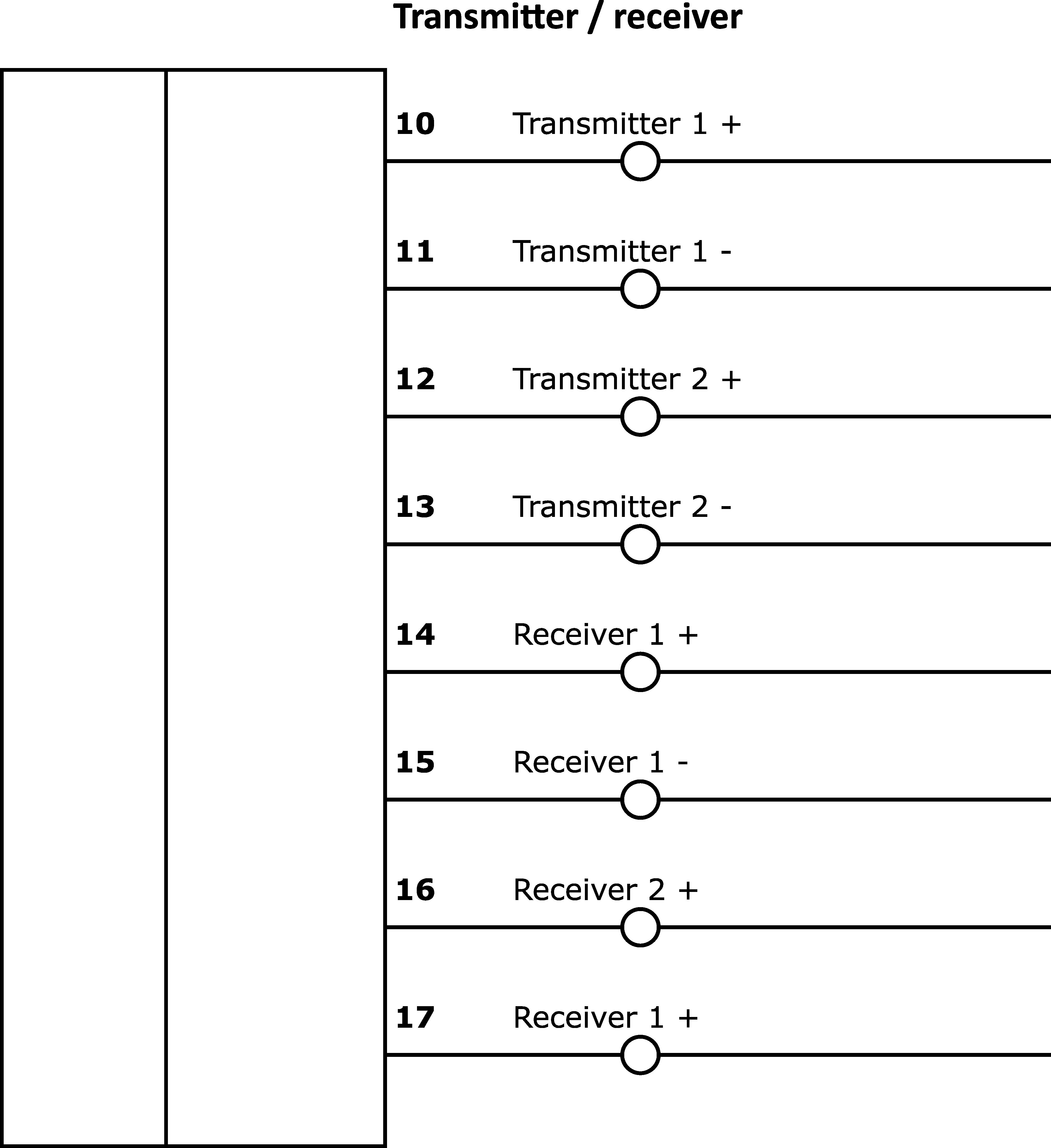

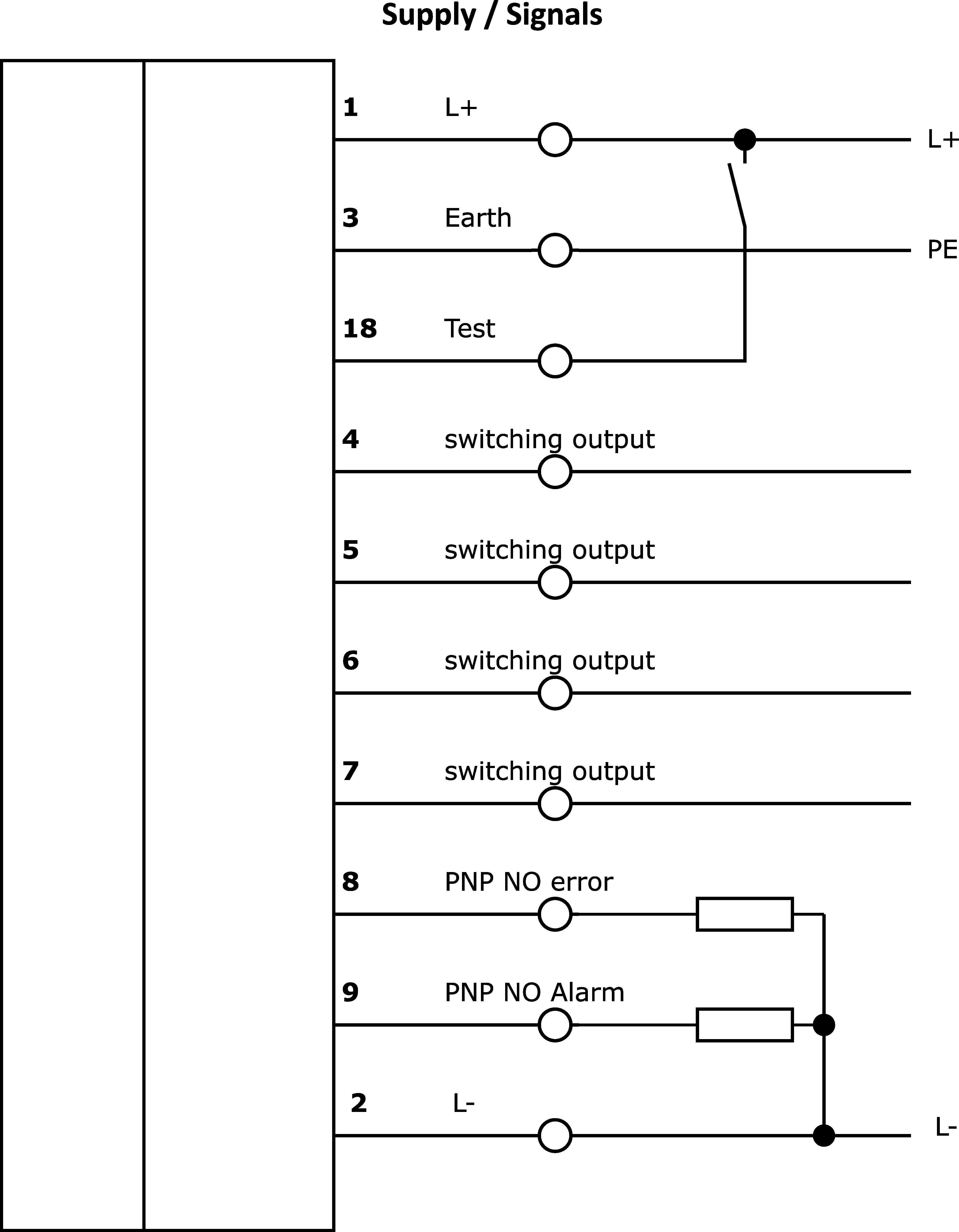

Type of electrical connection
Clamped terminal connection
Type of switching output
Relay contact
Rated switching current
100mA
Input voltage tolerance
20%
Setting procedure
Potentiometer
Short-circuit protection
Yes
No-load current
100mA
Power consumption
2.4VA
Switching distance
0 - 55,000mm
Switching capacity
6VA
Switching voltage
24V
Switching voltage AC
60V
Switching voltage DC
60V
Operating voltage (DC)
19.2 - 28.8V
Display
LED display
Malfunction message output
Yes
With soiling compensation
Yes

Mechanical properties

Design
Cuboid
Width
52.8mm
Height
58mm
Length
90mm
Mounting method
Top hat rail
Degree of protection (IP)
IP20
Housing material
Plastic

Optical properties

Range (transmitter with increased power, receiver with short design)
10
Range (transmitter with increased power, receiver with normal design)
30
Range (transmitter with maximum power, receiver with short design)
20
Range (transmitter with maximum power, receiver with normal design)
55
Range (transmitter with normal power, receiver with short design)
8
Range (transmitter with normal power, receiver with normal design)
20

Other properties

Ambient temperature
-25 - 50°C

Accessories OV54/62/63/64/65

High performance light barriers, receiver

High performance light barrier, transmitter

Classification Class
eClass-7.0 27210121
eClass-7.1 27210121
eClass-8.0 27210121
eClass-9.0 27210121
eClass-9.1 27210121
ETIM-6.0 EC001485
ETIM-7.0 EC001485
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
IPF Product Group 101 high performance through-beam sensors and amplifiers
packaging dimensions 60 x 64 x 100mm
gross weight 160g
Customs tariff number 85365019
WEEE number 40951076
