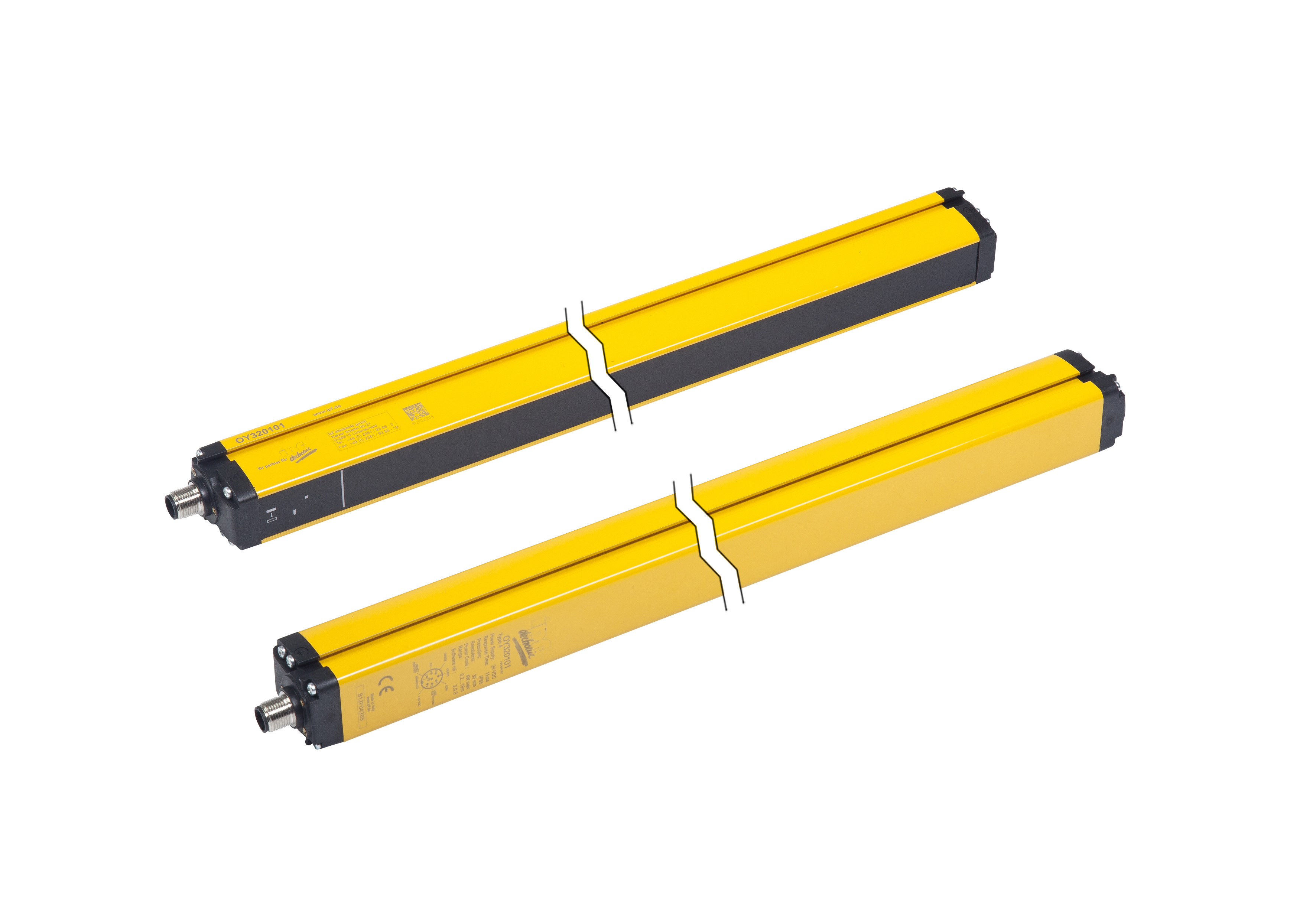

light curtain, 37x833x32mm, field height 750, resolution 14mm, Sn: 0.3-6m, 24V DC, PNP NO (NO), 500mA, Connector M12 8pin/4pin, IP65, Aluminium painted+PMMA, safety
including 1x Test bar AO000138, 4x Soporte de montaje AO000106
Compare

Safety systems - Light curtains - finger protection

safety light curtains are suitable for the protection of hazardous areas on machines according to the applicable standards. there are three groups of devices: body protection (2, 3 and 4 rays), hand protection (resolution 30mm) and finger protection (resolution 14mm). each group has deivices with different protection field heights. Often these systems are used in conveyors, welding robots as wll as cutting and bending machines

Electrical properties

Number of safe semiconductor outputs
2
Resolution
14mm
Type of switching function
Normally open contact (NO)
Type of electrical connection
Connector M12
Type of switching output
OSSD, dual channel
Rated switching current
500mA
Short-circuit protection
Yes
No-load current, receiver
150mA
No-load current, transmitter
105mA
Number of pins, receiver
8
Number of pins, transmitter
4
Reaction time
25ms
Switching distance
300 - 6,000mm
Protection class
III
Reverse polarity protection
Yes
Operating voltage (DC)
24V
Display
LED display
Suitable for safety functions
Yes
With restart lock
Yes
With monitoring function of downstream devices
Yes

Mechanical properties

Width
32.3mm
Field height
750mm
Height
36.9mm
Length
833.2mm
Surface
Varnished
Degree of protection (IP)
IP65
Active area material of sensor
Housing material
Aluminum

Optical properties

Number of beams
80
Wavelength of the sensor
950nm

Other properties

Scope of delivery
Transmitter and receiver
Relative air humidity (non-condensing)
15 - 95%
Safety category
Category 4
Safety type in acc. with IEC 61496-1
4
Ambient temperature
0 - 55°C
With beam coding
Yes
