Flow sensors - Sensors for air
SL270120
| amount | price | discount |
|---|---|---|
| 1 | 388,10 € | – |
| 5 | 376,46 € | 3% / 11,64 € |
| 10 | 368,70 € | 5% / 19,41 € |
| 20 | 357,05 € | 8% / 31,05 € |
| 50 | 341,53 € | 12% / 46,57 € |
On demand

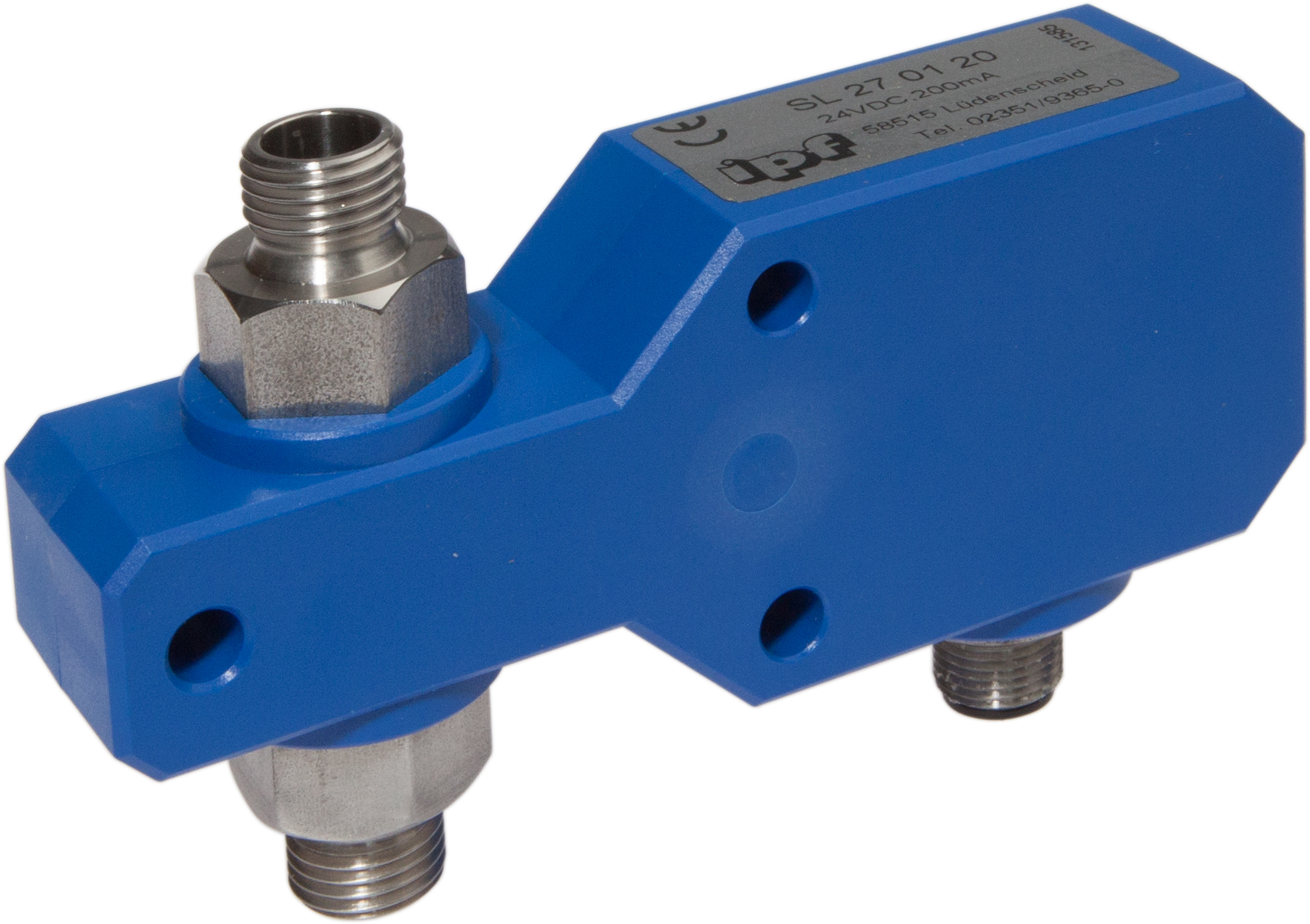

sensor flow, Air, Calorimetric, 27x112x67mm, G1/4 inch, 24V DC, PNP NO (NO), Plug-in connection M12 4pin, PBT, Pressure resistance 20bar, Manual adjustment
including 4x Sealing ring, 1x Screwdriver
Compare
Flow sensors - Sensors for air
The function of the flow sensor is based on the calorimetric principle. The probe is heated up from the inside a few degrees Celsius in relation to the flow medium, in which it protrudes. When the medium flows, the heat generated in the probe is dissipated through the medium. The temperature within the sensor is measured and compared with the likewise measured medium temperature. From the obtained temperature difference the flow state of each medium can be derived. These sensors are applied in areas such as monitoring of cooling systems, ventilation systems, pump dry running by checking the presence of liquid or gas flows.
- 0.5 - 40
Electrical properties
- Response/decay time
- 20,000ms
- Type of switching function
- Normally open contact (NO)
- Type of electrical connection
- Connector M12
- Type of switching output
- PNP
- Rated switching current
- 200mA
- Readiness delay
- 30ms
- Setting procedure
- Manual adjustment
- Short-circuit protection
- Yes
- No-load current
- 50mA
- Number of pins
- 4
- Residual ripple
- 10%
- Voltage drop
- 2V
- Reverse polarity protection
- Yes
- Measurement principle
- calorimetric
- Operating voltage (DC)
- 24V
- Display
- LED display
Mechanical properties
- Type of process connection
- G1/4 inch
- Design
- Cuboid
- Width
- 67mm
- Pressure resistance
- 20bar
- Height
- 27mm
- Length
- 112mm
- Medium temperature
- 0 - 80°C
- Degree of protection (IP)
- IP67
- Housing material
- PBT
- Sensing element material
- Stainless steel 1.4571
- Measuring range flow velocity
- 0.5 - 40m/s
Other properties
- Ambient temperature
- 0 - 60°C
- Suitable media
- Gases
- Reference medium / object
- Air
- For pneumatic applications
- Yes
- Suitable for liquids
- No
You can find accessories for SL270120
in these product groups:
Cable sockets M12 4-pin field attachable
Cable sockets M12 3-wire with LED
Cable sockets M12 3-wire
Datasheets
Drawings
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 324 KB
-
pdfMaterial compliancePDF-file, 407 KB
-
pdfCE declaration of conformityPDF-file, 252 KB
-
pdfUL declaration of conformityPDF-file, 76 KB
-
pdfCCC declaration of conformityPDF-file, 73 KB
-
pdfCSA declaration of conformityPDF-file, 57 KB
Miscellaneous
-
pdfWhitepaper food productionPDF-file, 481 KB
-
pdfFlyer food and beveragePDF-file, 1.7 MB
-
pdfFlyer fluid technologyPDF-file, 3.5 MB
-
pdfWhitepaper fluid technologyPDF-file, 755 KB
Links
| Classification | Class |
|---|---|
| eClass-7.0 | 27371815 |
| eClass-7.1 | 27371815 |
| eClass-8.0 | 27371815 |
| eClass-9.0 | 27371815 |
| eClass-9.1 | 27371815 |
| ETIM-6.0 | EC002580 |
| ETIM-7.0 | EC002580 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| IPF Product Group | 300 flow sensors |
| packaging dimensions | 99 x 60 x 160mm |
| gross weight | 290g |
| Customs tariff number | 90268020 |
| WEEE number | 40951076 |
