SL90A471
| amount | price | discount |
|---|---|---|
| 1 | 235,80 € | – |
| 5 | 228,73 € | 3% / 7,07 € |
| 10 | 224,01 € | 5% / 11,79 € |
| 20 | 216,94 € | 8% / 18,86 € |
| 50 | 207,50 € | 12% / 28,30 € |
On demand
Flow sensor, air, calorimetric, G 1/2", connection to amplifier, M12-connector, VA, pressure resistance 30bar
including 2x Sealing ring
Compare
Flow sensors - Sensors for air
The function of the flow sensor is based on the calorimetric principle. The probe is heated up from the inside a few degrees Celsius in relation to the flow medium, in which it protrudes. When the medium flows, the heat generated in the probe is dissipated through the medium. The temperature within the sensor is measured and compared with the likewise measured medium temperature. From the obtained temperature difference the flow state of each medium can be derived. These sensors are applied in areas such as monitoring of cooling systems, ventilation systems, pump dry running by checking the presence of liquid or gas flows.
- 0.5 - 30
Electrical properties
- Response/decay time
- 30,000ms
- Type of electrical connection
- Connector M12
- Readiness delay
- 90ms
- Measurement principle
- calorimetric

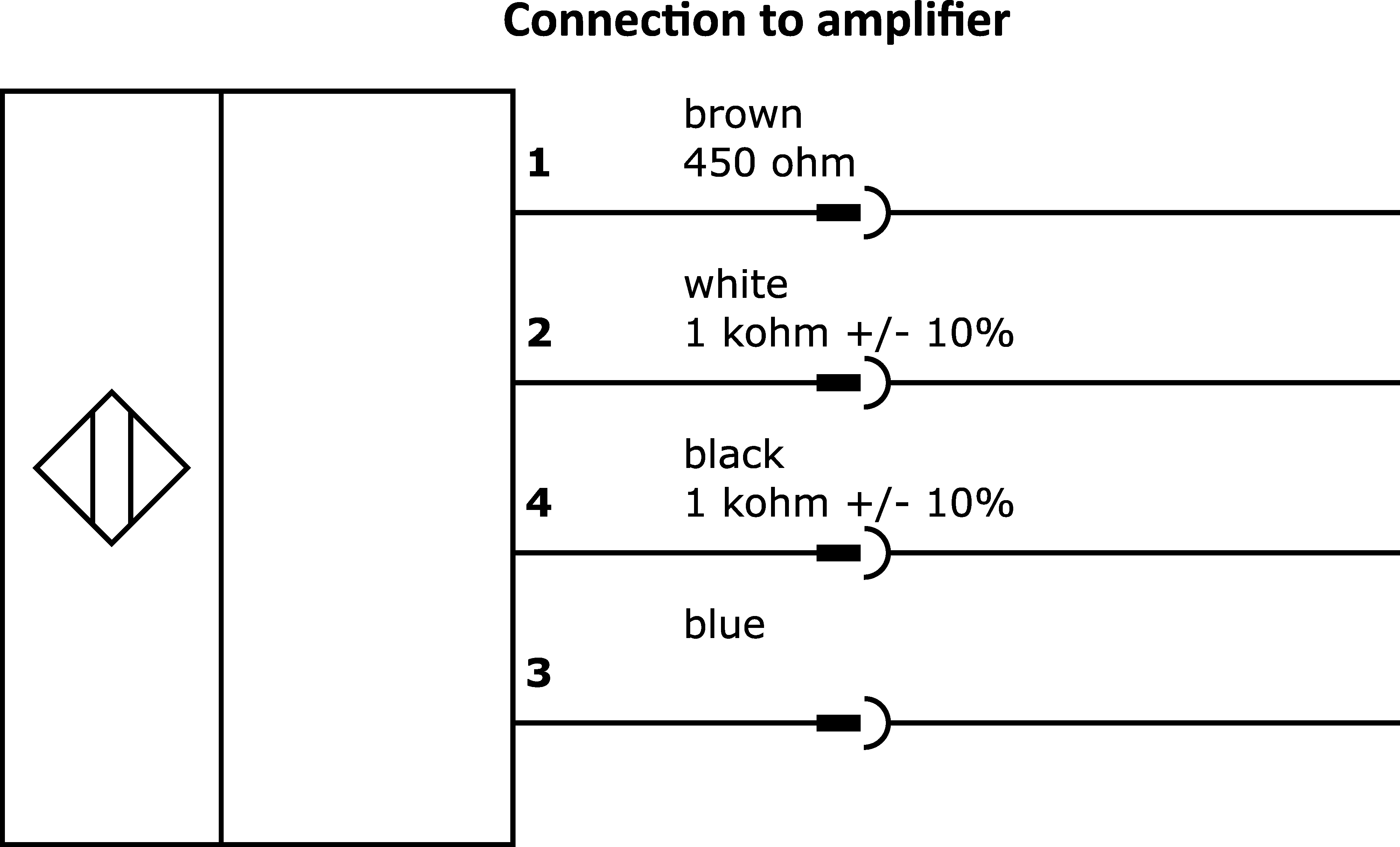

- Connection to amplifier
- Yes
Mechanical properties
- Type of process connection
- G1/2 inch
- Design
- Cylinder, screw-thread
- Pressure resistance
- 30bar
- Thread length
- 48mm
- Medium temperature
- -20 - 80°C
- Degree of protection (IP)
- IP67
- Housing material
- Stainless steel 1.4305
- Sensing element material
- Stainless steel 1.4305
- Measuring range flow velocity
- 0.5 - 30m/s
Other properties
- Ambient temperature
- -20 - 80°C
- Suitable media
- Gases
- Reference medium / object
- Air
- For pneumatic applications
- Yes
- Suitable for liquids
- No
You can find accessories for SL90A471
in these product groups:
Cable sockets M12 5-wire shielded
Cable sockets M12 3-wire
Amplifier flow sensors
Adapter M12 socket 3-pin / M8 connector 3-pin
Cable sockets M12 5-pin field attachable
Cable sockets M12 4-pin field attachable
Datasheets
Drawings
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 324 KB
-
pdfMaterial compliancePDF-file, 407 KB
-
pdfCE declaration of conformityPDF-file, 252 KB
Miscellaneous
| Classification | Class |
|---|---|
| eClass-7.0 | 27371815 |
| eClass-7.1 | 27371815 |
| eClass-8.0 | 27371815 |
| eClass-9.0 | 27371815 |
| eClass-9.1 | 27371815 |
| ETIM-6.0 | EC002580 |
| ETIM-7.0 | EC002580 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| IPF Product Group | 300 flow sensors |
| packaging dimensions | 43 x 43 x 105mm |
| gross weight | 140g |
| Customs tariff number | 90268020 |
| WEEE number | 40951076 |
