Connection technology - Distribution terminals

VK000007

VK000007
List price
65,60 €
Available
distributor, 60x42x102mm, 10-30V DC, 4x M12, Hood distributor / pluggable trunk line connection 5pin, IP67, PBT, M20 x 1.5, With LED display
including 1x Identification label, 2x Screw plug, 1x Cable gland
Compare

Connection technology - Distribution terminals

The wiring of sensors and actors is considerably more comfortable with our sensor distribution box. The individual devices are connected with the distrubutor via an M8 or M12 cable that is pre-assembled on both sides. By means of the trunk line the effort for laying and wiring the cables can be reduced significantly. The operating mode display provides information about the sensors operating mode (operatig voltage, switching state). Thus, troubleshooting is simpler, as an overview about the functioning of the connected periphery is directly given.

Electrical properties

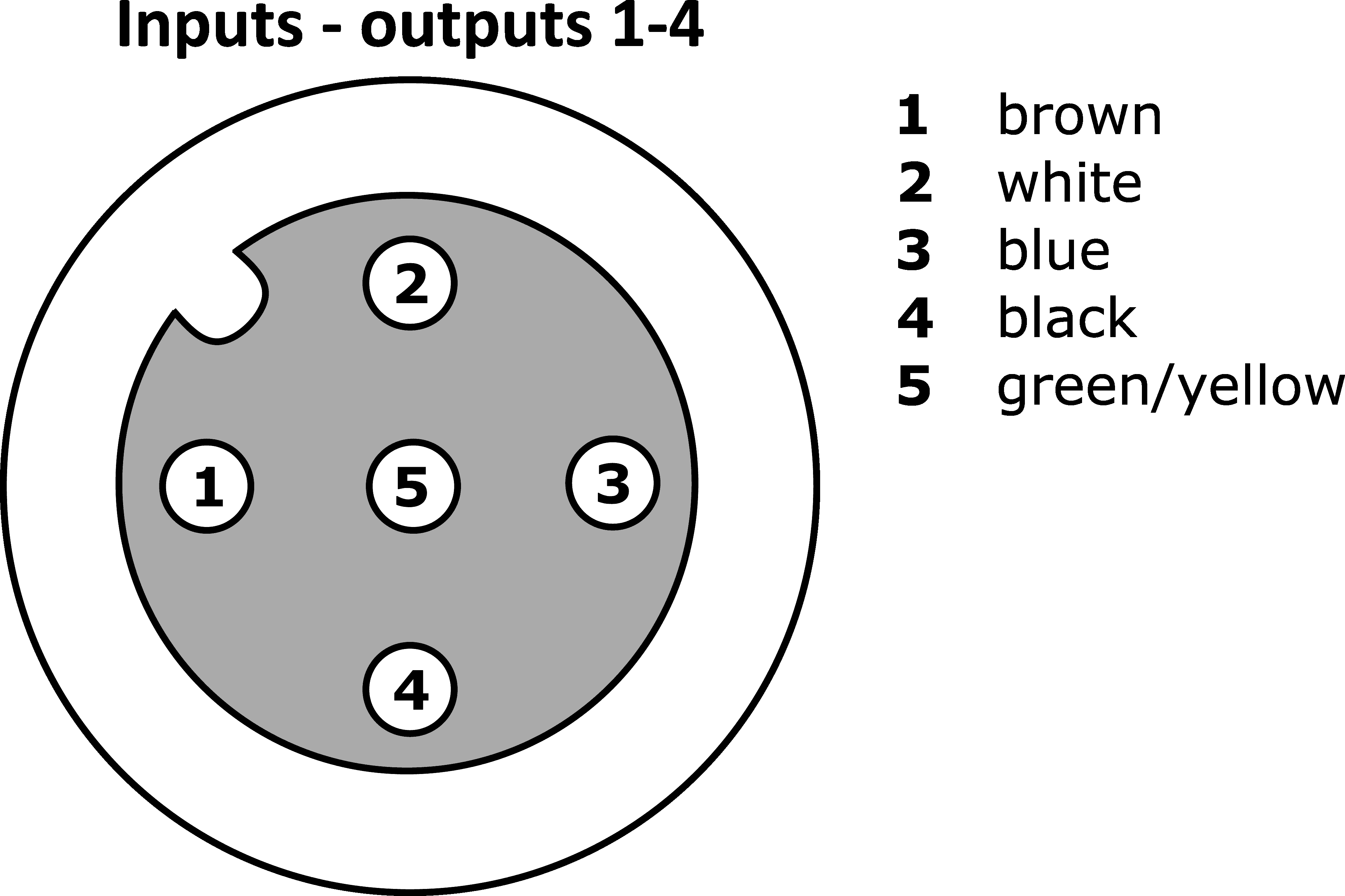

Type of A electrical connection
M12

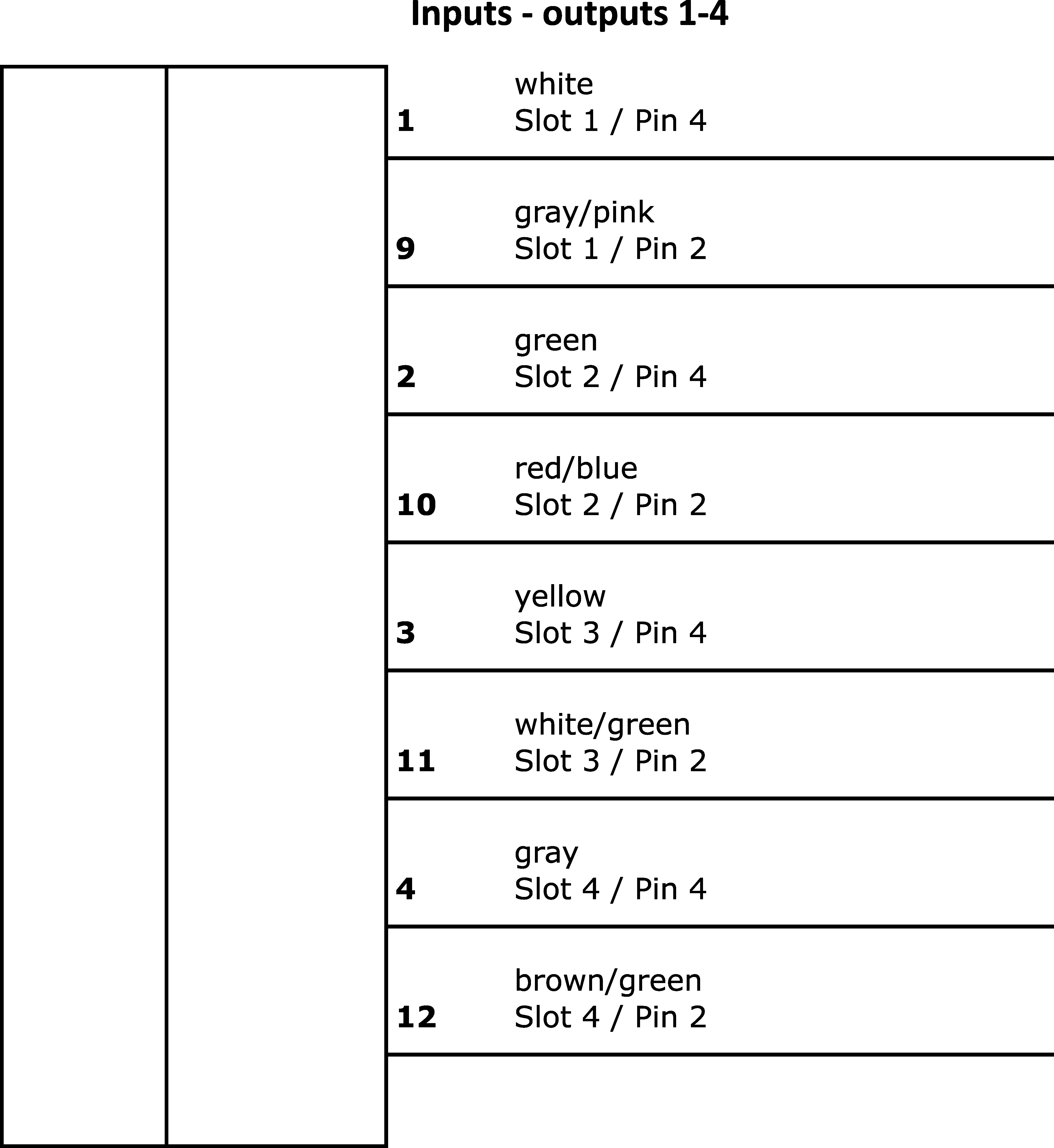

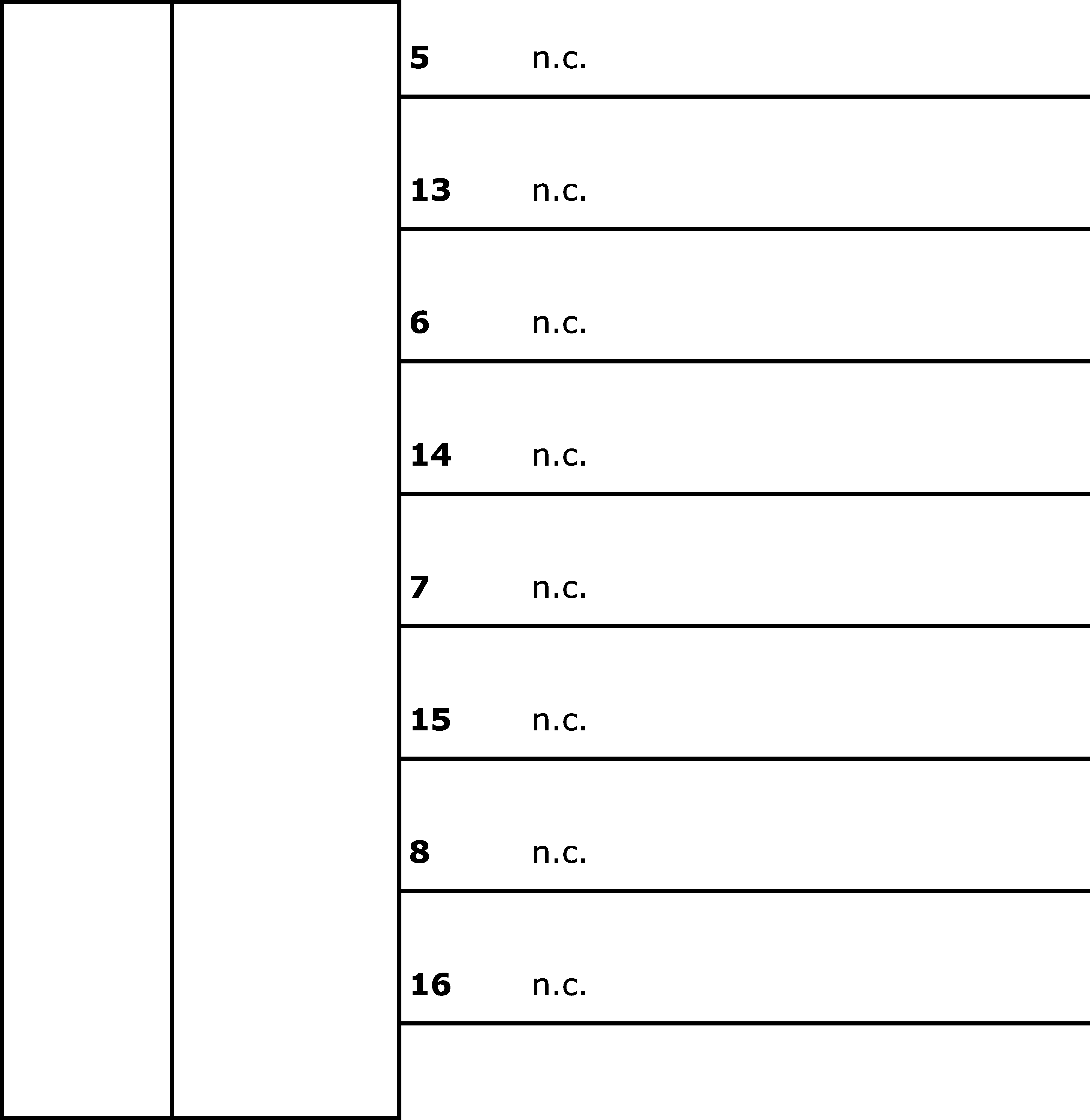

Type of B electrical connection
Clamps
Number of pins of A connection
5
Number of slots
4
Operating voltage (DC)
10 - 30V
Display
LED display

Mechanical properties

Type of cable gland
M20 x 1.5
Width
102mm
Height
60mm
Length
41.5mm
Degree of protection (IP)
IP67
Housing material
PBT

Other properties

Ambient temperature
-20 - 90°C
You can find accessories for VK000007 in these product groups:

Cable sockets M12-socket M12-connector 4-wire

Torque wrench WAF 9 / WAF 13

Cable 16x0.34+3x0.75

Cable connectors M12 4-pin field-attachable

M12 screw plug

Cable connectors M12 5-pin field-attachable

Torque wrench SW9 / SW13

Classification Class
eClass-7.0 27279219
eClass-7.1 27279219
eClass-8.0 27279219
eClass-9.0 27440108
eClass-9.1 27440108
ETIM-6.0 EC002585
ETIM-7.0 EC003558
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
OzDS-compliant Yes
POP-compliant Yes
TSCA-compliant Yes
IPF Product Group 855 cable sockets / connectors (distributor, accessories, diverse)
packaging dimensions 65 x 47 x 120mm
gross weight 260g
Customs tariff number 85366990
WEEE number 40951076
