Accessories - Simulation plugs
VK000035
Available

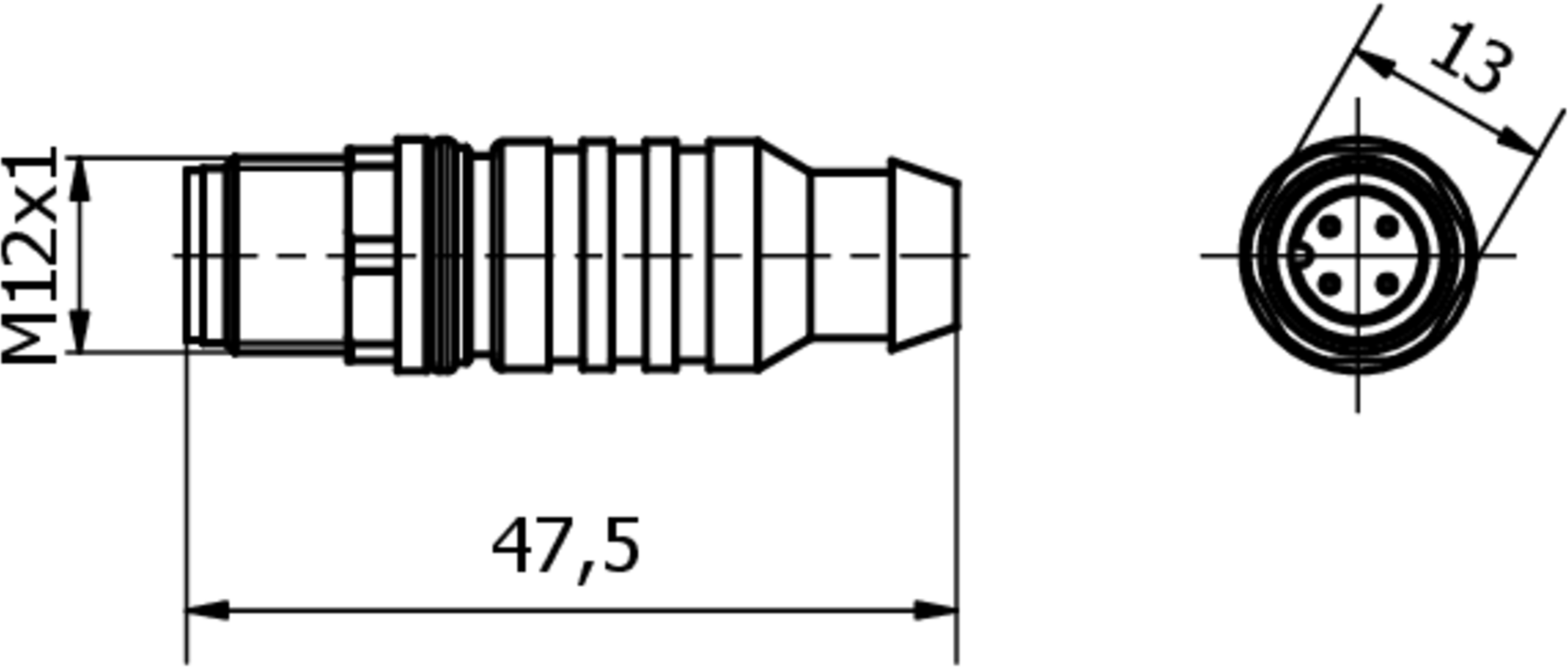

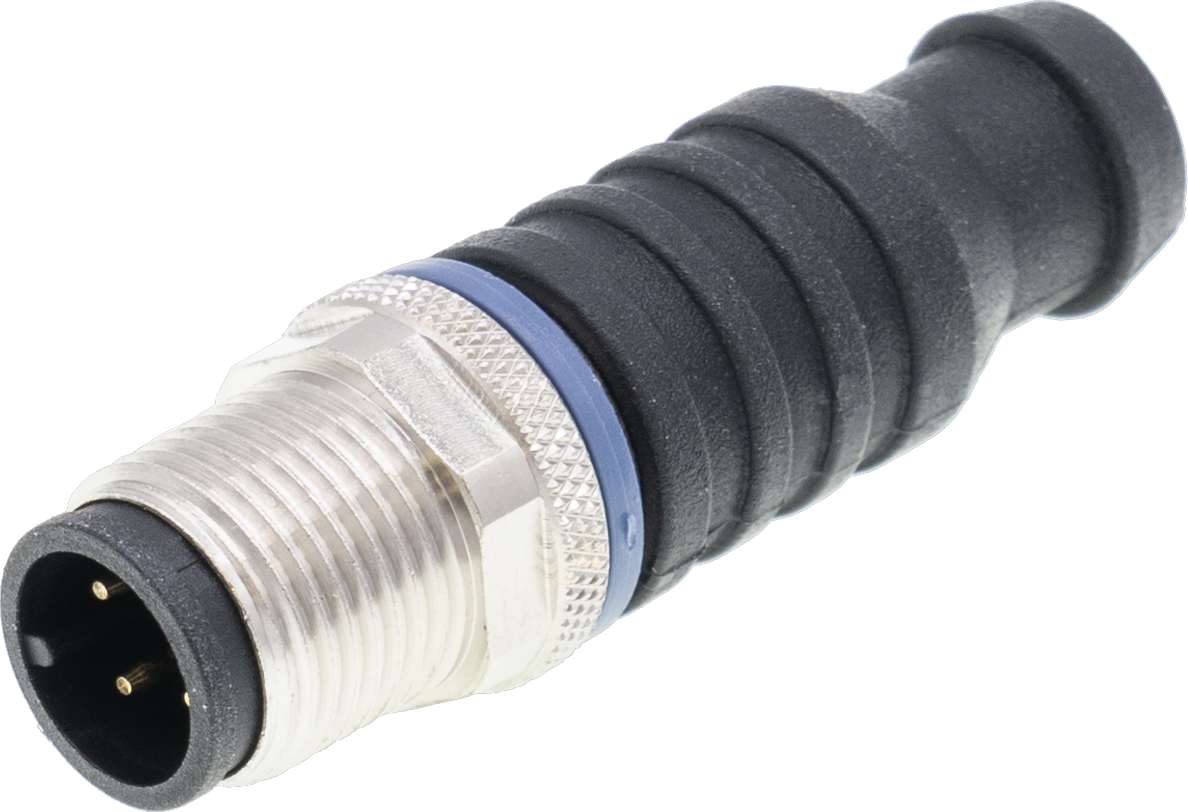

Cable connector, PIN 1/4 bridged, Straight, simulation connector, Contacts compound-filled, M12 Male (connector) 4pin
Compare
Accessories - Simulation plugs
ipf cable sockets are used primarily for establishing the electrical connection of sensors. Their features are characterized by rugged design, the highest protection classes (IP67 | IP68 | IP69K) and, if desired, with 360° shielding. With the features: bus-ready, suitable for use with drag chains and robots, resistance to oil and chemicals, resistance to welding sparks, their resistance to cleaning agents or high-pressure and steam-jet cleaning, the expanded temperature range of up to +230°C, the rapid interconnection technology and special data transmission properties, the cable sockets meet all requirements in automation technology.
Electrical properties
- Type of plug-in contact
- Male (connector)
- Type of A electrical connection
- M12
- Type of B electrical connection
- Potted contacts
- Number of pins
- 4
Mechanical properties
- Cable infeed
- straight
- Degree of protection (IP)
- IP67
- Material of the screw fitting
- Brass
Other properties
- Features
- PIN 1/4 bridged
- Cable connector
| Classification | Class |
|---|---|
| eClass-7.0 | 27249290 |
| eClass-7.1 | 27249290 |
| eClass-8.0 | 27249290 |
| eClass-9.0 | 27242291 |
| eClass-9.1 | 27242291 |
| ETIM-6.0 | EC000000 |
| ETIM-7.0 | EC000000 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| IPF Product Group | 855 cable sockets / connectors (distributor, accessories, diverse) |
| packaging dimensions | 100 x 5 x 120mm |
| gross weight | 25g |
| Customs tariff number | 85369010 |
| WEEE number | 40951076 |
