connection technology - connection adapters

VK000040

VK000040
List price
11,10 €
Available

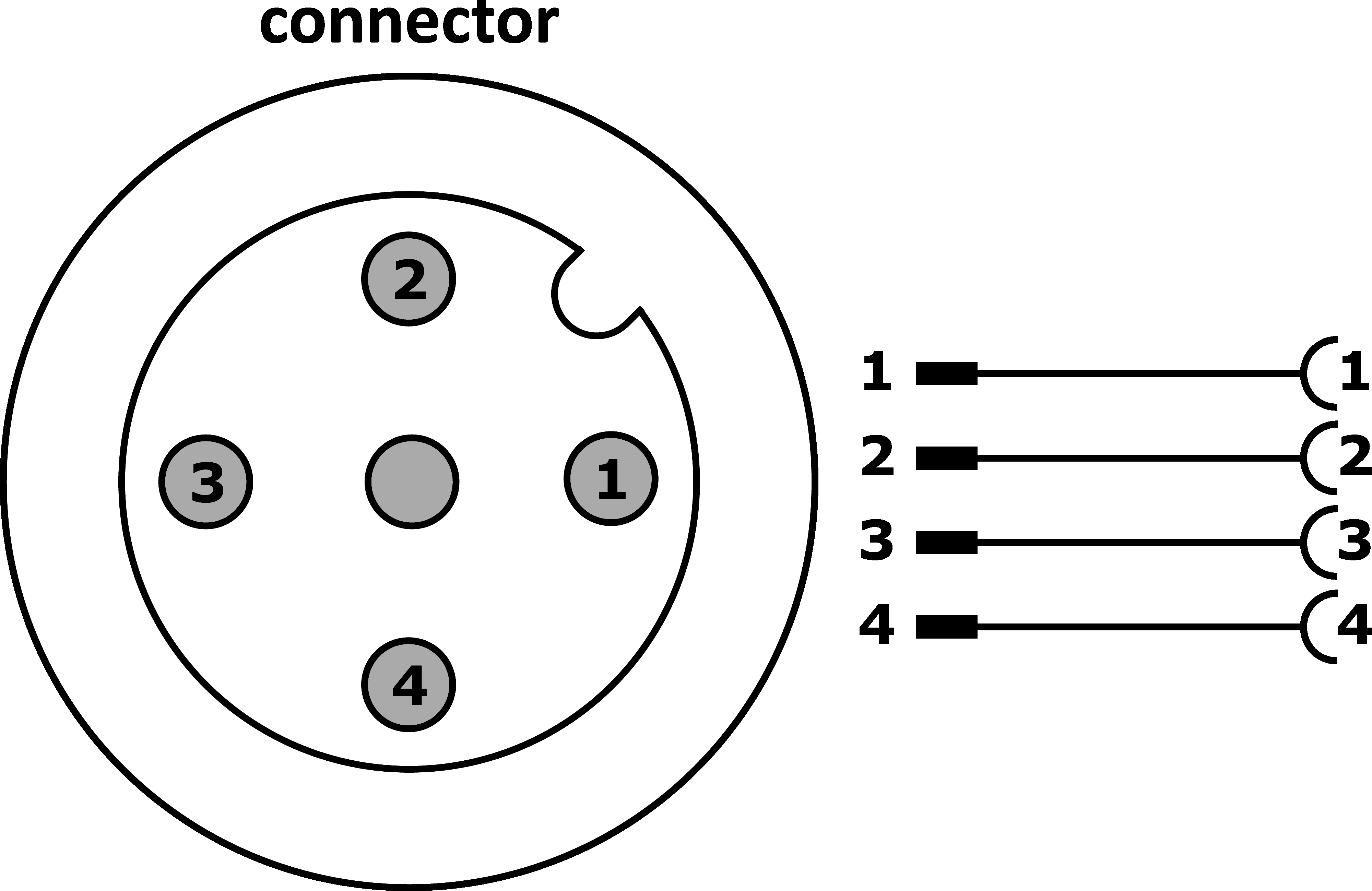

Adaption, M8 Female (socket) 4pin Straight, M12 Male (connector) 4pin Straight, 24V, -25-85°C, IP67, Oil and cooling lubricants, Welding area

connection technology

ipf cable sockets are used primarily for establishing the electrical connection of sensors. Their features are characterized by rugged design, the highest protection classes (IP67 | IP68 | IP69K) and, if desired, with 360° shielding. With the features: bus-ready, suitable for use with drag chains and robots, resistance to oil and chemicals, resistance to welding sparks, their resistance to cleaning agents or high-pressure and steam-jet cleaning, the expanded temperature range of up to +230°C, the rapid interconnection technology and special data transmission properties, the cable sockets meet all requirements in automation technology.

Mechanical features

Version
Adaption
Degree of protection (IP)
IP67
Cable infeed of B connection
Straight
Perm. ambient temperature of cable, fixed cable
-25 - 85°C
Cable infeed of A connection
Straight

Electrical features

Rated current
4A
Shielded
no
Number of pins of B connection
4
Type of B electrical connection
M12
Type of plug-in contact, B connection
Male (plug)
Rated voltage
24V
Number of pins of A connection
4
Type of A electrical connection
M8
Type of plug-in contact, A connection
Female (socket)

Other features

Halogen-free
no
IR-networked
no
Flame retardant
No

Cable sockets M12 4-wire

Cable sockets M12 4-wire with LED

Cable sockets M12 4-pin field attachable

Cable sockets M12 5-pin field attachable

Drehmomentschlüssel SW9 / SW13

ClassificationClass
eClass 7.027279218
eClass 7.127279218
eClass 8.027279218
eClass 9.027060311
eClass 9.127060311
ETIM-6.0EC001855
ETIM-7.0EC001855
IPF Product Group851
PropertyValue
shipping weight0.01kg
packaging dimensions100mm x 17.0mm x 120mm
customs tariff number85366990
