Connection cable, 0.3m, M12 Female (socket) 8pin Straight, M23 Male (connector) 12pin Straight, 8x0.25mm², PUR (Polyurethane) Black, Ø6.3mm, 30V, -30-90°C, IP67, Shielded, Suitable for trailing chain and torsion resistant, Oil and cooling lubrican...
Compare
Connection technology - Cable sockets / connectors pre-assembled on two sides
ipf cable sockets are used primarily for establishing the electrical connection of sensors. Their features are characterized by rugged design, the highest protection classes (IP67 | IP68 | IP69K) and, if desired, with 360° shielding. With the features: bus-ready, suitable for use with drag chains and robots, resistance to oil and chemicals, resistance to welding sparks, their resistance to cleaning agents or high-pressure and steam-jet cleaning, the expanded temperature range of up to +230°C, the rapid interconnection technology and special data transmission properties, the cable sockets meet all requirements in automation technology.
Electrical properties
- Type of plug-in contact, A connection
- Female (socket)
- Type of plug-in contact, B connection
- Male (connector)
- Type of A electrical connection
- M12
- Type of B electrical connection
- M23
- Line diameter
- 6.3mm
- Number of pins of A connection
- 8
- Number of pins of B connection
- 12
- Ampacity
- 1.5A
- Operating voltage (AC 50Hz)
- 30V
- Operating voltage (DC)
- 30V
- Shielded
- Yes
Mechanical properties
- Wire assembly
- 32 x 0.1mm
- 0.25mm²
- Number of cores
- 8
- Cable sheath color
- black
- Cable length
- 0.3m
- Cable infeed of A connection
- straight
- Cable infeed of B connection
- straight
- Maximum tightening torque of connection A
- 1Nm
- Degree of protection (IP)
- IP67
- Contact coating material
- Gold
- Material of cable sheath
- Plastic (PUR)
- Contact body material
- Brass
- Perm. ambient temperature of cable, fixed cable
- -40 - 90°C
- Perm. ambient temperature of cable, flexible cable
- -30 - 90°C
- Suitable for trailing chain
- Yes
Other properties
- Flame retardant
- in accordance with EN 60332-2-2
- Ambient temperature
- -30 - 90°C
- Halogen-free
- Yes
- Hydrolysis-proof
- Yes
- Free of LABS
- Yes
- Ozone and UV-resistant
- Yes
- Suitable for trailing chain and torsion resistant
- Yes
- Welding area
- Yes
- Silicone-free
- Yes
- Oil and cooling lubricants
- Yes

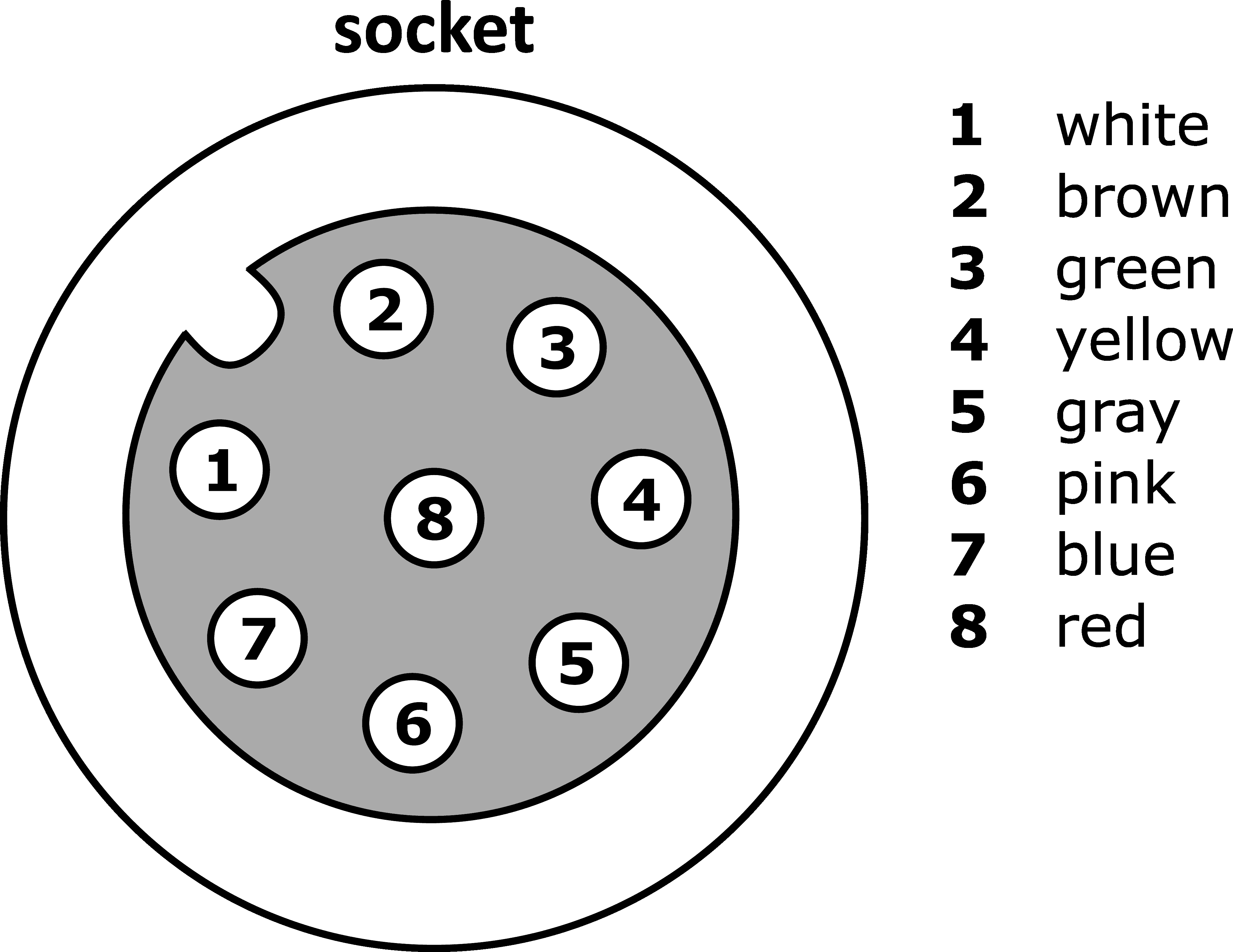

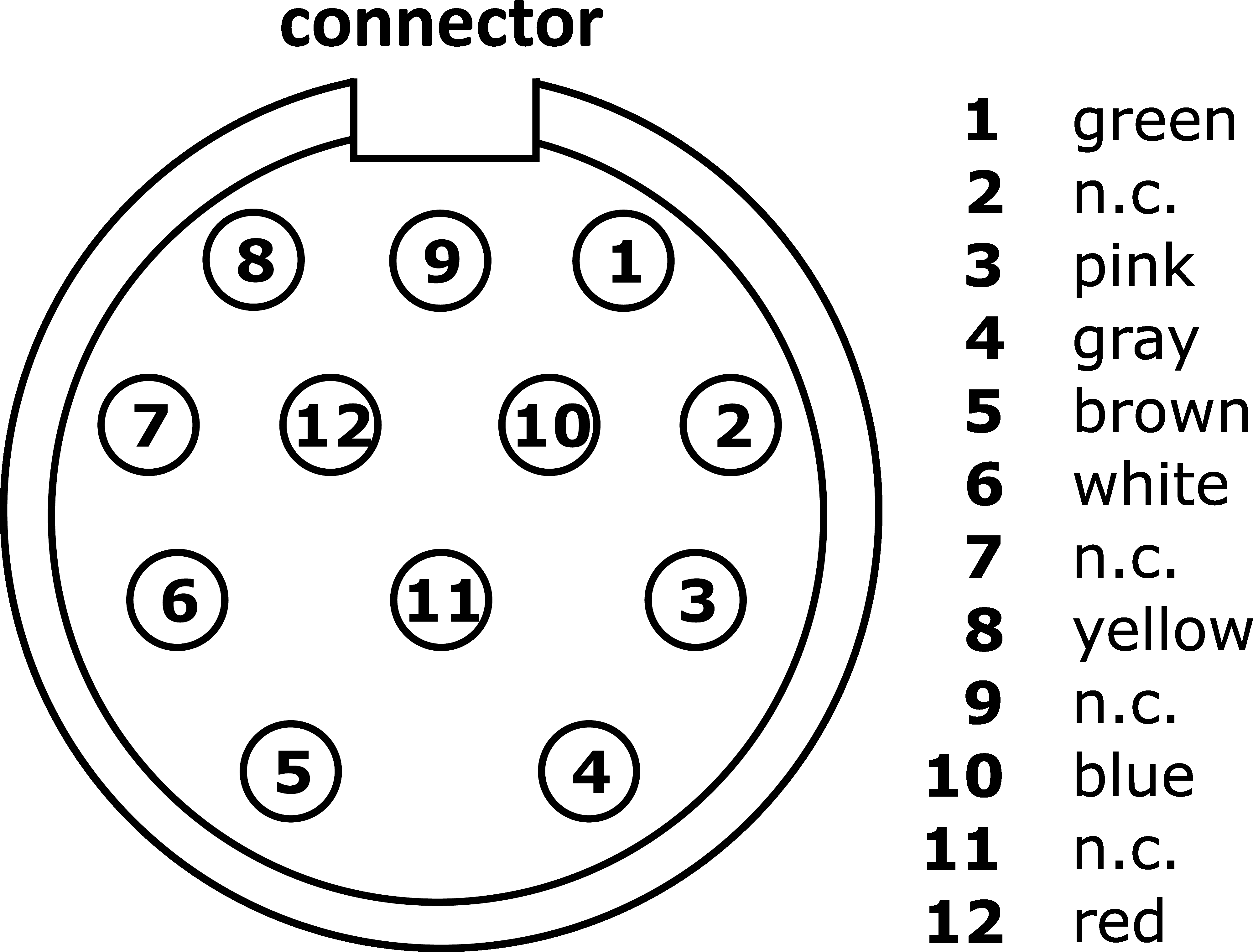

- Connection cable
Sheath
Datasheets
Drawings
Product Compliance
| Classification | Class |
|---|---|
| eClass-7.0 | 27279218 |
| eClass-7.1 | 27279218 |
| eClass-8.0 | 27279218 |
| eClass-9.0 | 27060311 |
| eClass-9.1 | 27060311 |
| ETIM-6.0 | EC001855 |
| ETIM-7.0 | EC001855 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| IPF Product Group | 851 cable sockets / connectors (both side ready made) |
| packaging dimensions | 140 x 30 x 220mm |
| gross weight | 109g |
| Customs tariff number | 85444290 |
| WEEE number | 40951076 |
