Connection technology - Data transfer

VK207F44

VK207F44
List price
93,70 €
Scarce
Connection cable RS232/Sub-D, 2m, M5 Male (connector) Straight, D-Sub Male (connector) 9pin Straight, PUR (Polyurethane)
Compare

Connection technology - Data transfer

ipf cable sockets are used primarily for establishing the electrical connection of sensors. Their features are characterized by rugged design, the highest protection classes (IP67 | IP68 | IP69K) and, if desired, with 360° shielding. With the features: bus-ready, suitable for use with drag chains and robots, resistance to oil and chemicals, resistance to welding sparks, their resistance to cleaning agents or high-pressure and steam-jet cleaning, the expanded temperature range of up to +230°C, the rapid interconnection technology and special data transmission properties, the cable sockets meet all requirements in automation technology.

Electrical properties

Type of plug-in contact, A connection
Male (connector)
Type of plug-in contact, B connection
Male (connector)

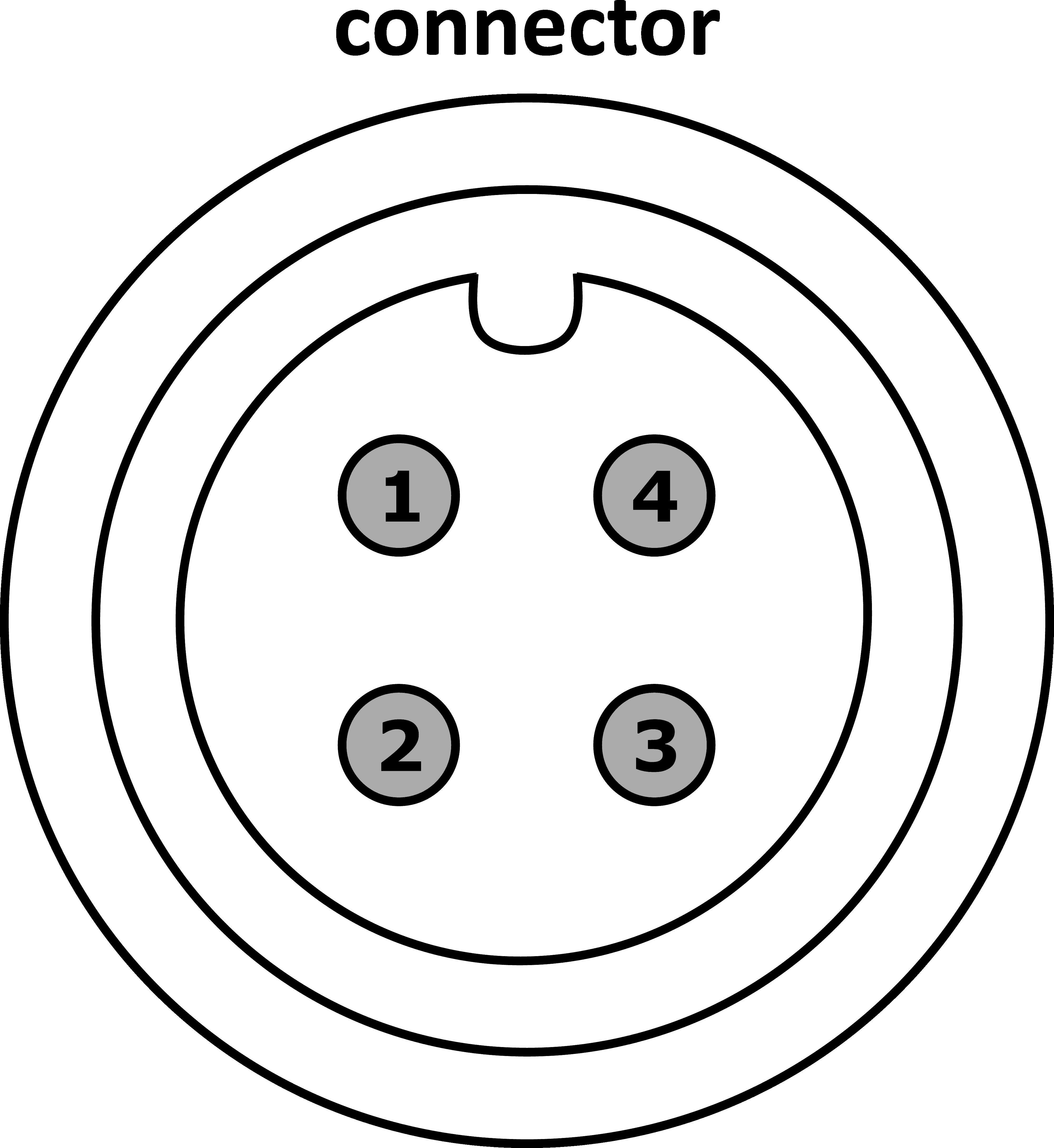

Type of A electrical connection
M5

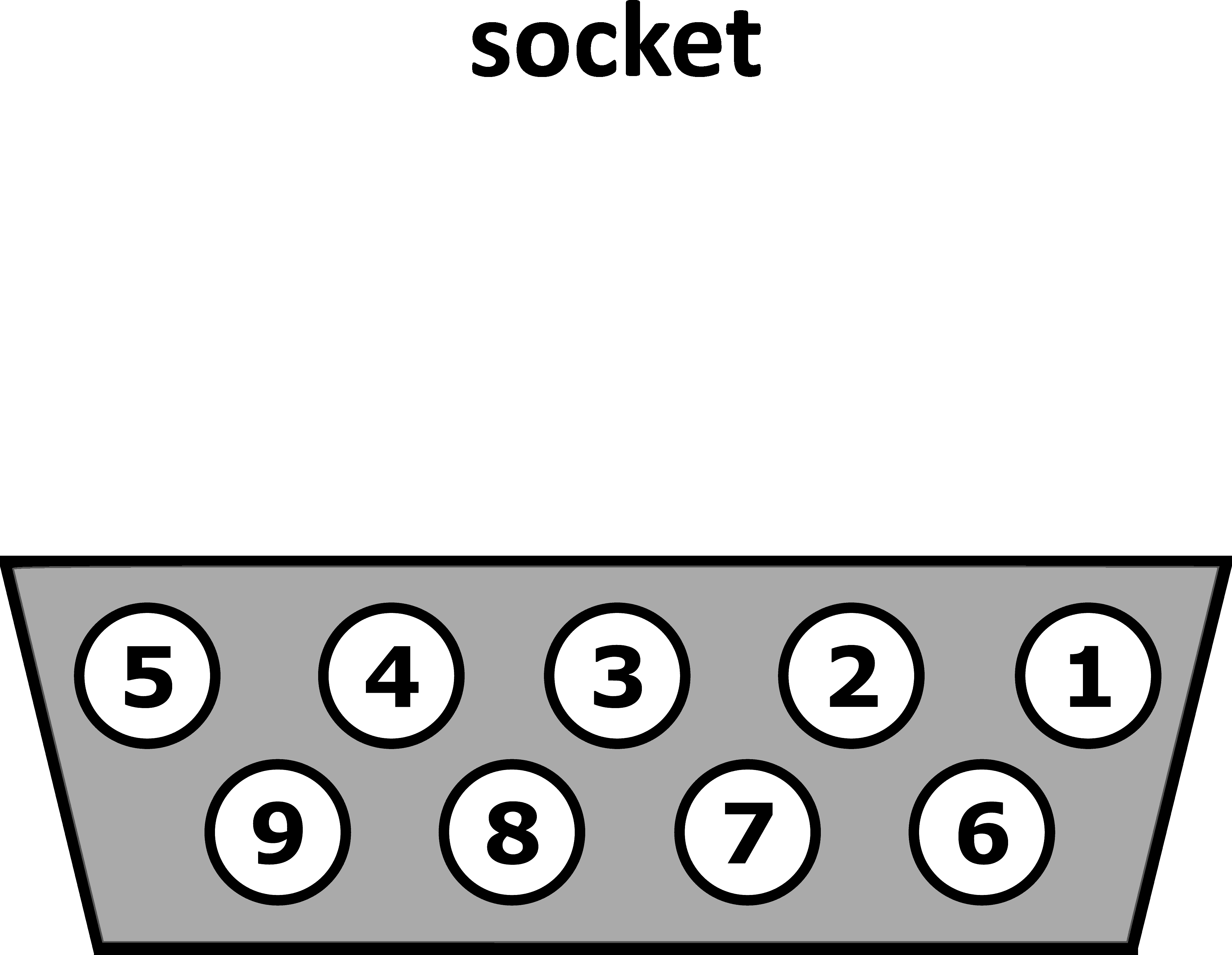

Type of B electrical connection
D-Sub
Number of pins of B connection
9
Supported communication interface
RS232

Mechanical properties

Core identification
Color
Cable length
2m
Cable infeed of A connection
straight
Cable infeed of B connection
straight
Material of cable sheath
Plastic (PUR)

Other properties

Version
Programming cable
Classification Class
eClass-7.0 27060390
eClass-7.1 27060390
eClass-8.0 27060390
eClass-9.0 27060390
eClass-9.1 27060390
ETIM-6.0 EC001408
ETIM-7.0 EC001408
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
POP-compliant Yes
TSCA-compliant Yes
IPF Product Group 856 cable socket / cable connector (diverse)
packaging dimensions 100 x 15 x 175mm
gross weight 86g
Customs tariff number 85444290
WEEE number 40951076
