connection technology - cable sockets / connectors pre-assembled on one side

VK30E127

VK30E127
Available
Connection cable, 3m, JST Female (socket) 4pin Straight, Free conductor end 4pin, 4x0.2mm², Ø3.7mm, 24V

connection technology

ipf cable sockets are used primarily for establishing the electrical connection of sensors. Their features are characterized by rugged design, the highest protection classes (IP67 | IP68 | IP69K) and, if desired, with 360° shielding. With the features: bus-ready, suitable for use with drag chains and robots, resistance to oil and chemicals, resistance to welding sparks, their resistance to cleaning agents or high-pressure and steam-jet cleaning, the expanded temperature range of up to +230°C, the rapid interconnection technology and special data transmission properties, the cable sockets meet all requirements in automation technology.

Mechanical features

Version
Connection cable
Cable length
3m
Cable infeed of A connection
Straight
Wire cross section
0.2mm²
Number of cores
4

Electrical features

Nominal supply voltage
24V
Shielded
no

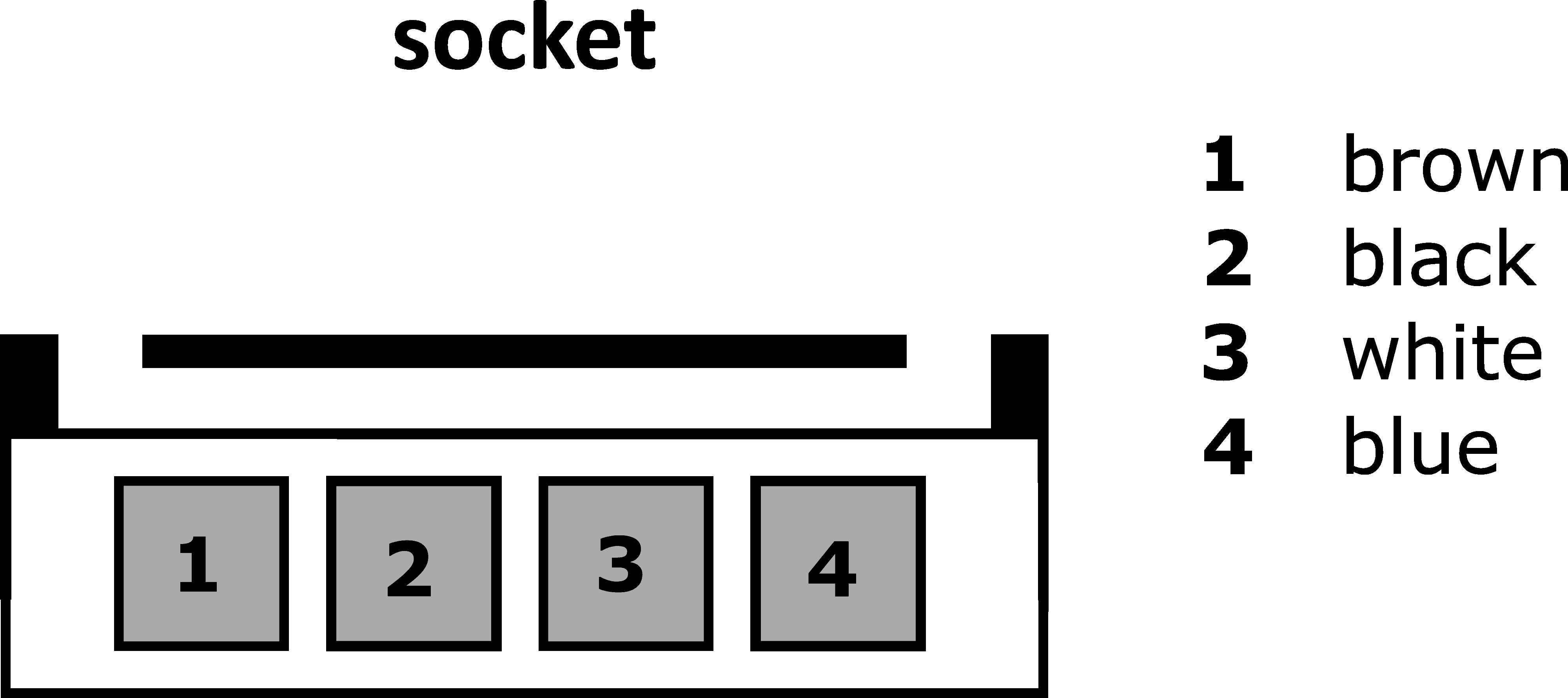

Number of pins of A connection
4
Type of A electrical connection
JST
Type of plug-in contact, A connection
Female (socket)
Type of cable
Multi-core
Line diameter
3.7mm
Number of pins of B connection
4
Type of B electrical connection
Free conductor end

Other features

Halogen-free
no
IR-networked
no
Flame retardant
No
ClassificationClass
eClass 7.027279218
eClass 7.127279218
eClass 8.027279218
eClass 9.027060311
eClass 9.127060311
ETIM-6.0EC001855
ETIM-7.0EC001855
IPF Product Group700
PropertyValue
shipping weight0.07kg
packaging dimensions77.0mm x 25.0mm x 123.0mm
customs tariff number85444290
