Connection technology - Distribution terminals

VK98E199

VK98E199
List price
119,50 €
Scarce
distributor, 25x124x54mm, 30V, 4x M12 5pin, Fixed-cable distributor / connected trunk line, IP67, Polyamide PA, With LED display, Sensor/actuator slot with equipment grounding conductor
including 2x Screw plug

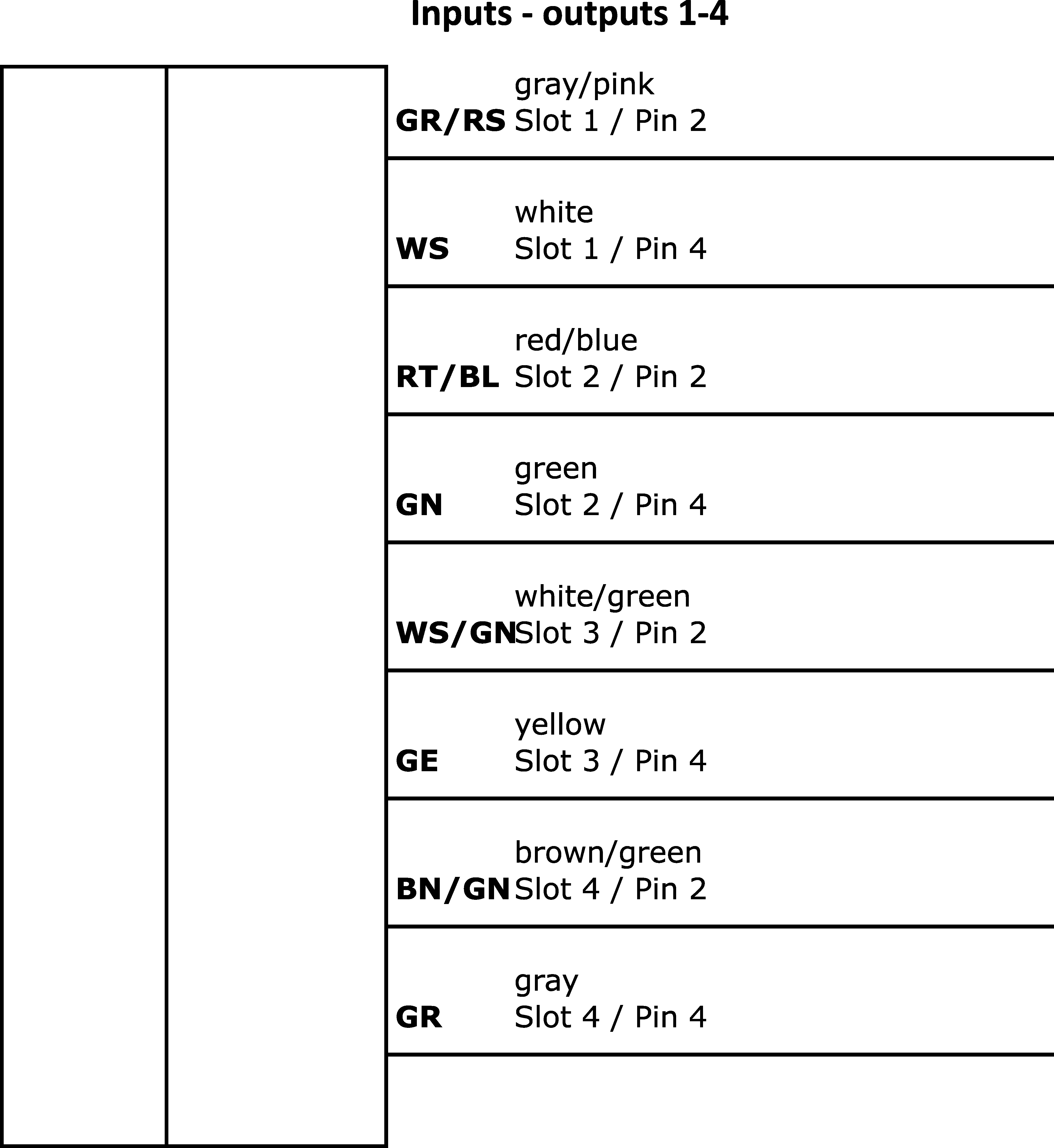

circuit diagram
dimensional drawing
3D model
Compare

Connection technology - Distribution terminals

The wiring of sensors and actors is considerably more comfortable with our sensor distribution box. The individual devices are connected with the distrubutor via an M8 or M12 cable that is pre-assembled on both sides. By means of the trunk line the effort for laying and wiring the cables can be reduced significantly. The operating mode display provides information about the sensors operating mode (operatig voltage, switching state). Thus, troubleshooting is simpler, as an overview about the functioning of the connected periphery is directly given.

Electrical properties

Type of A electrical connection
M12
Type of B electrical connection
Free conductor end
Line diameter
8.2mm
Max. ampacity per socket
2A
Max. ampacity per I/O signal
12A
Number of pins of A connection
5
Number of slots
4
Operating voltage (AC 50Hz)
30V
Operating voltage (DC)
30V
Display
LED display
Sensor/actuator slot with equipment grounding conductor
Yes

Mechanical properties

Type of cable gland
none
Width
54mm
Height
25.2mm
Cable length
10m
Length
123.5mm
bending cycles
≥ 2 million cycles
Degree of protection (IP)
IP67
Torsion cycles
+/-180°/m, ≥ 0.5 million cycles
Housing material
Polyamide PA
Structure of trunk line
8 x 0.34mm² + 3 x 1mm²
Diameter of trunk line
8.2mm

Other properties

Ambient temperature
-30 - 90°C
Print data
Classification Class
eClass-7.0 27279219
eClass-7.1 27279219
eClass-8.0 27279219
eClass-9.0 27440108
eClass-9.1 27440108
ETIM-6.0 EC002585
ETIM-7.0 EC002585
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
OzDS-compliant Yes
POP-compliant Yes
TSCA-compliant Yes
SCIP number f203c158-a8a9-49d5-9df2-6c16b879df28
IPF Product Group 855 cable sockets / connectors (distributor, accessories, diverse)
packaging dimensions 350 x 58 x 450mm
gross weight 1,185g
Customs tariff number 85444290
WEEE number 40951076
