Connection technology - Cable sockets / connectors pre-assembled on one side
VKA05A44
Scarce
Connection cable, 10m, Female (socket) 6pin Straight, Free conductor end, 6x0.14mm², PVC Gray, Ø4.9mm, 350V, Shielded
Compare
Connection technology - Cable sockets / connectors pre-assembled on one side
ipf cable sockets are used primarily for establishing the electrical connection of sensors. Their features are characterized by rugged design, the highest protection classes (IP67 | IP68 | IP69K) and, if desired, with 360° shielding. With the features: bus-ready, suitable for use with drag chains and robots, resistance to oil and chemicals, resistance to welding sparks, their resistance to cleaning agents or high-pressure and steam-jet cleaning, the expanded temperature range of up to +230°C, the rapid interconnection technology and special data transmission properties, the cable sockets meet all requirements in automation technology.
Electrical properties
- Type of plug-in contact, A connection
- Female (socket)
- Type of B electrical connection
- Free conductor end
- Flow resistance
- 0.14mOhm
- Line diameter
- 4.9mm
- Number of pins of A connection
- 6
- Operating voltage (AC 50Hz)
- 350V
- Operating voltage (DC)
- 350V
- Shielded
- Yes
Mechanical properties
- 0.14mm²
- Number of cores
- 6
- Cable sheath color
- Gray
- Cable length
- 10m
- Cable infeed of A connection
- straight
- Material of cable sheath
- Plastic (PVC)
- Perm. ambient temperature of cable, fixed cable
- -40 - 80°C
Other properties
- Flame retardant
- in accordance with EN 60332-1-2
- Ambient temperature
- -5 - 50°C
- Halogen-free
- Yes
- Free of LABS
- Yes
- Ozone and UV-resistant
- Yes
- Connection cable
Sheath
Torque wrench WAF 9 / WAF 13
Scarce
Torque wrench SW9 / SW13
Datasheets
Drawings
-
jpgBlueprintJPG-file, 15 KB
-
dwg2DDWG-file, 498 KB
-
stp3DSTP-file, 339 KB
-

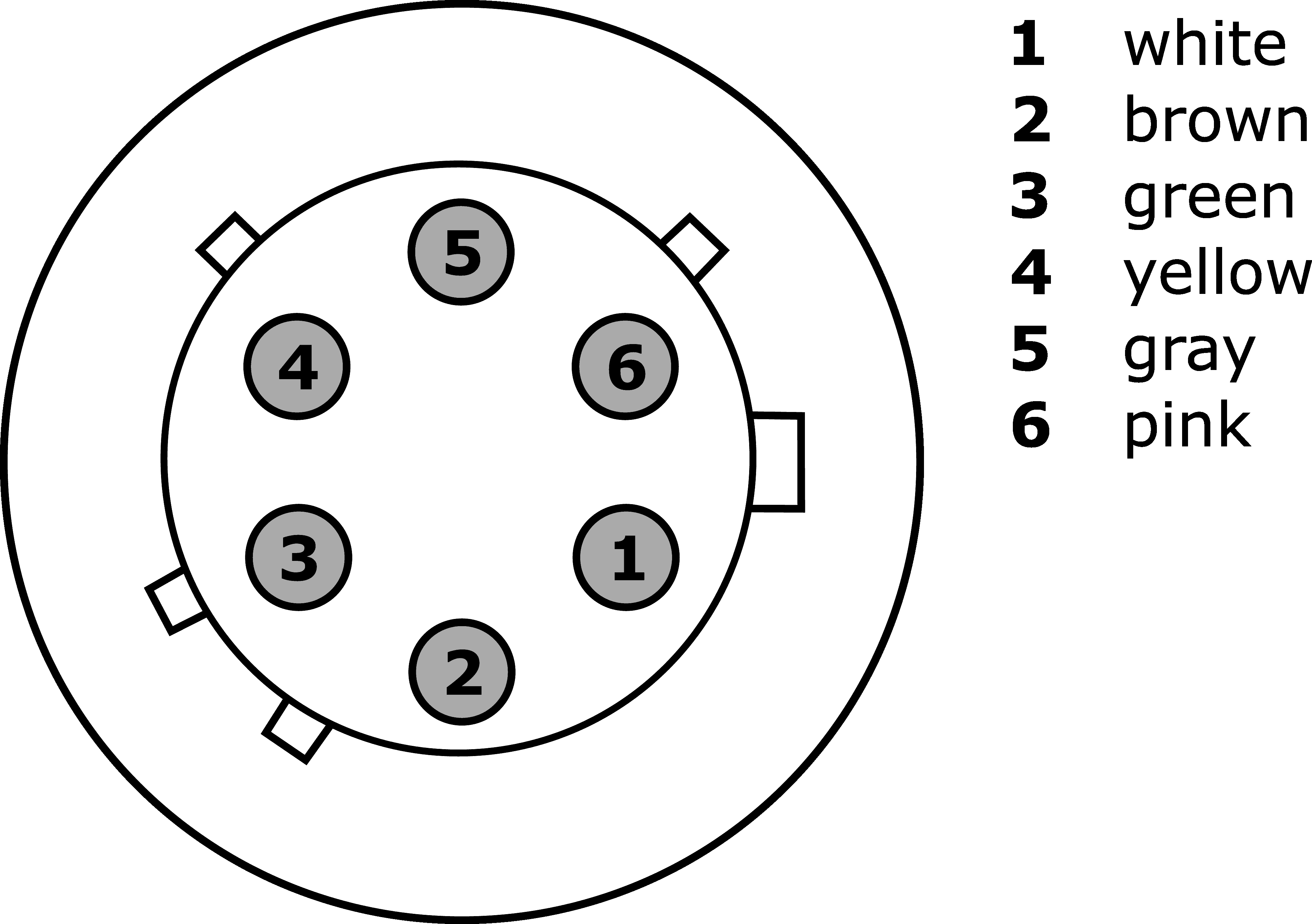

pngWiring diagram - internetPNG-file, 15 KB
Product Compliance
| Classification | Class |
|---|---|
| eClass-7.0 | 27279218 |
| eClass-7.1 | 27279218 |
| eClass-8.0 | 27279218 |
| eClass-9.0 | 27060311 |
| eClass-9.1 | 27060311 |
| ETIM-6.0 | EC001855 |
| ETIM-7.0 | EC001855 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| IPF Product Group | 856 cable socket / cable connector (diverse) |
| packaging dimensions | 200 x 300 x 300mm |
| gross weight | 366g |
| Customs tariff number | 85444290 |
| WEEE number | 40951076 |
