connection technology - cable sockets / connectors pre-assembled on two sides

VKSI0297

VKSI0297
Available
Connection cable RS232/Ethernet, 0.5m, M5 Male (connector) 4pin Straight, M12 Male (connector) 4pin Straight, , PUR (Polyurethane), Aluminum

data technology

M5-Kblstckr500mm, 4pol/M12-Buchse 4pol Code D

Mechanical features

Version
Connection cable RS232/Ethernet
Housing material
Aluminum
Material of cable sheath
PUR (Polyurethane)
Cable infeed of B connection
Straight
Cable length
0.5m
Ambient temperature
-25 - 65°C
Cable infeed of A connection
Straight
IV002132

Electrical features

Number of pins of A connection
4
Type of A electrical connection
M5
Type of plug-in contact, A connection
Male (connector)

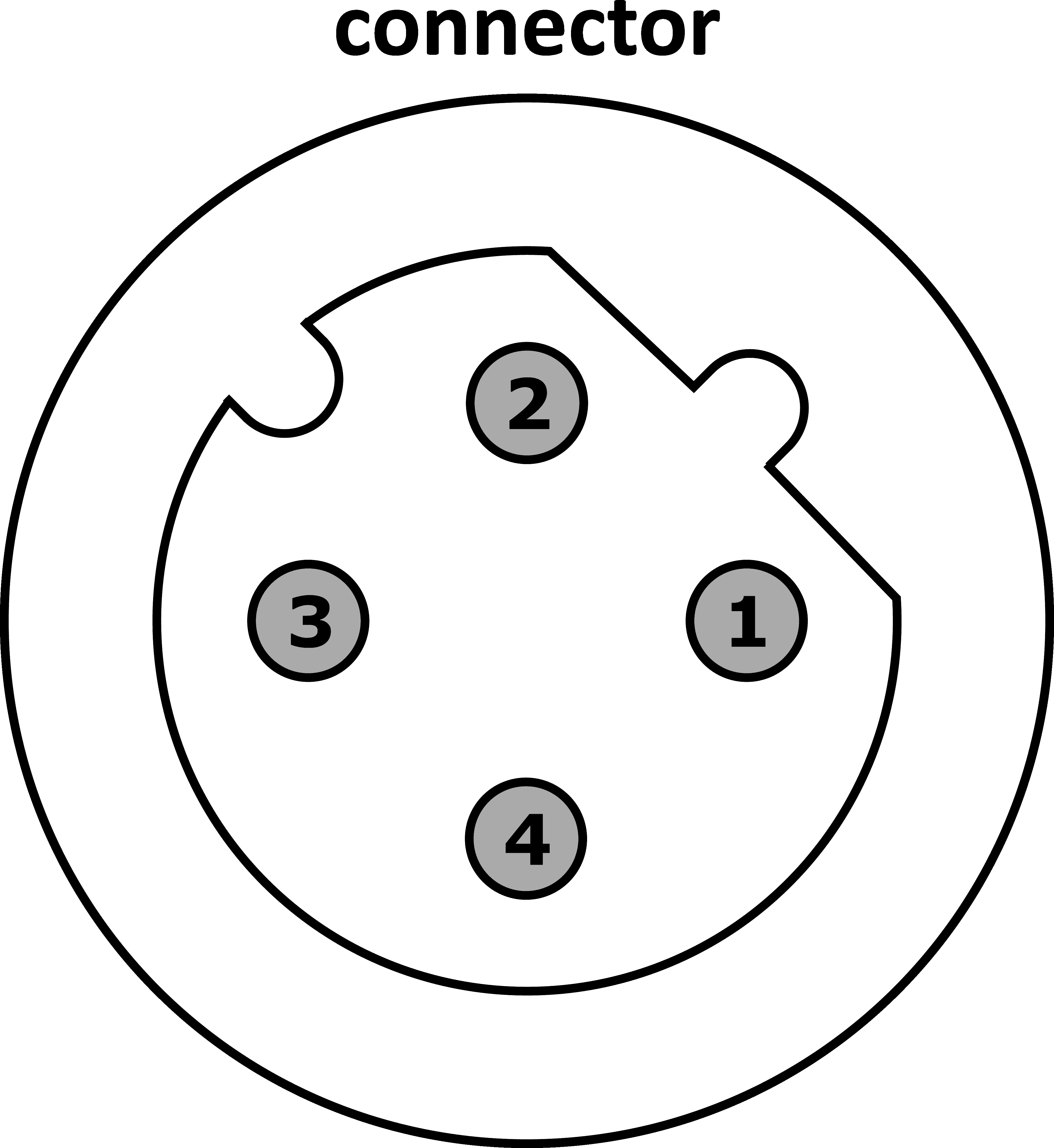

Number of pins of B connection
4
Type of B electrical connection
M12
Type of plug-in contact, B connection
Male (plug)

Other features

Communication interface supported
RS-232
ClassificationClass
eClass 7.027279218
eClass 7.127279218
eClass 8.027279218
eClass 9.027060311
eClass 9.127060311
ETIM-6.0EC001408
ETIM-7.0EC001408
IPF Product Group705
PropertyValue
shipping weight0.19kg
packaging dimensions99.0mm x 60mm x 160mm
customs tariff number85444290
yes
