Logic module - Y-distributor

VL150102

VL150102
List price
42,80 €
amount price discount
1 42,80 €
5 41,52 € 3% / 1,28 €
10 40,66 € 5% / 2,14 €
20 39,38 € 8% / 3,42 €
50 37,66 € 12% / 5,14 €
On demand
Logic module, 10x41x26mm, AND, 2fold, 10-30V DC, sensor side M8 Female (socket) 3pin, control side M8 Male (connector) 3pin, IP67, Plastic
Compare

Logic module - Y-distributor

Connecting digital signals directly at the machine can contribute to significant cost and effort minimization. A classic application is the linking of different signals directly in the field. Thus, it is possible to avoid long line paths of many individual devices, which significantly reduces the wiring effort and the need for control inputs. All input signals on the logic modules are visualized by integrated LED and are electrically decoupled from each other. In this way, influences from one device to the other are reliably prevented. The outputs of the modules are overload-proof and the upcoming signal is also indicated by an LED. In addition to logical input signal connections such as AND and OR, versions with signal change control are also available. The ipf logic modules are available for DIN rail mounting or as field modules. Therefor and because of the robust housing, which is characterized by a high degree of protection against the penetration of dust and water, our devices can be used in all areas of machines, equipment and tools.

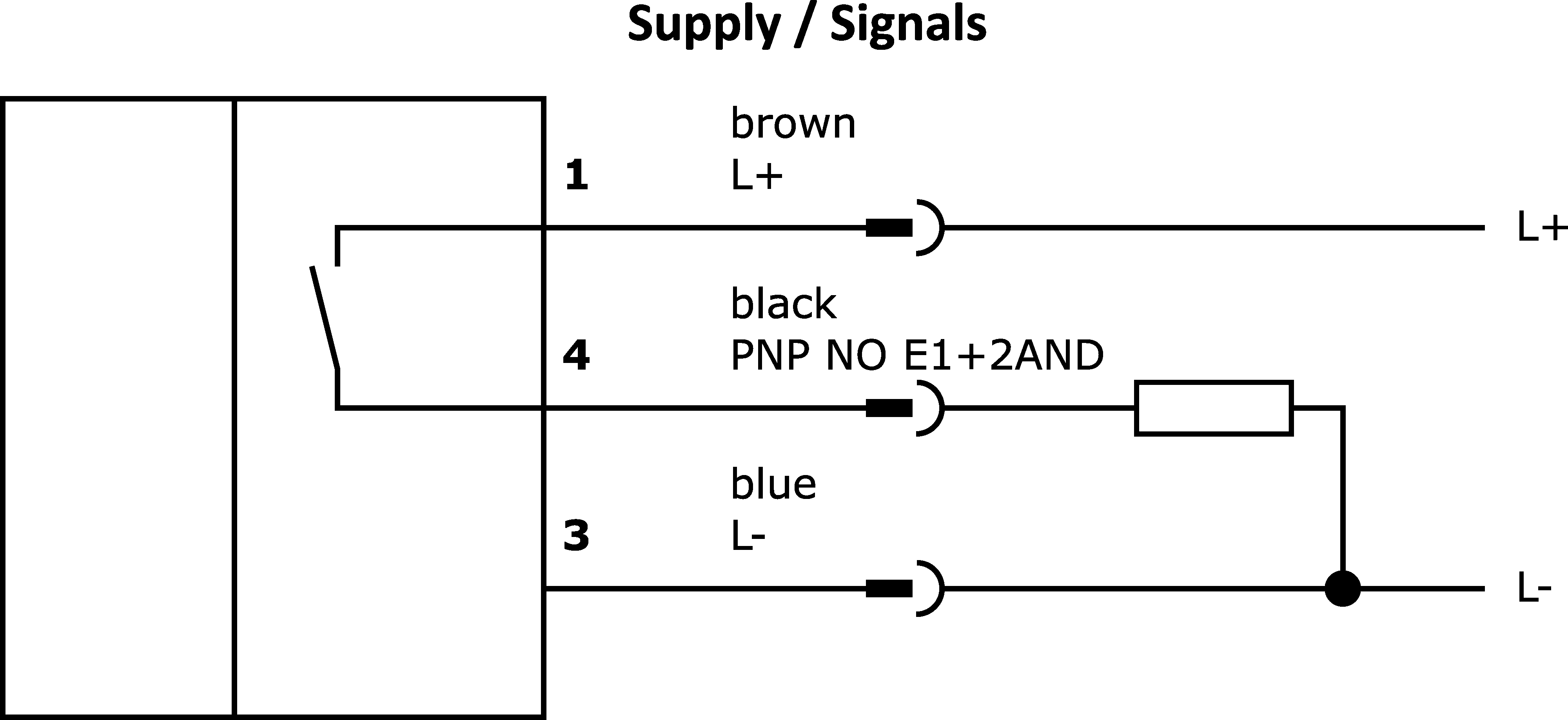

Electrical properties

Number of inputs per logic unit
2
Number of electrical connections, A connection
2
Number of electrical connections, B connection
1
Number of logic units
1
Type of plug-in contact, A connection
Female (socket)
Type of A electrical connection
M8
Type of B electrical connection
M8
Rated switching current
200mA
No-load current
0.1mA
Logic
AND
Number of pins of A connection
3
Number of pins of B connection
3
Switching frequency
5,000Hz
Operating voltage (DC)
10 - 30V
Output logic
A1 = E1 ∧ E2
Display
LED display

Mechanical properties

Width
26mm
Height
10mm
Length
40.6mm
Mounting method
Screw mounting
Degree of protection (IP)
IP67
Housing material
Plastic

Other properties

Ambient temperature
-25 - 70°C
You can find accessories for VL150102 in these product groups:

Cable sockets M12-socket M8-connector 3-wire

Cable sockets M12-socket with LED M8-connector 3-wire

Cable sockets M8 3-wire with LED

Cable sockets M8-socket M8-connector 3-wire

Cable sockets M8 3-wire

Cable sockets M8-socket M12-connector 3-wire

Cable sockets M8-socket with LED M8-connector 3-wire

Classification Class
eClass-7.0 27242216
eClass-7.1 27242216
eClass-8.0 27242216
eClass-9.0 27242216
eClass-9.1 27242216
ETIM-6.0 EC001417
ETIM-7.0 EC001417
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
IPF Product Group 800 miscellaneous
packaging dimensions 100 x 12 x 120mm
gross weight 12g
Customs tariff number 85365005
WEEE number 40951076
