Connection technology - Inverters

VY030224

VY030224
List price
69,80 €
amount price discount
1 69,80 €
5 67,71 € 3% / 2,09 €
10 66,31 € 5% / 3,49 €
20 64,22 € 8% / 5,58 €
50 61,42 € 12% / 8,38 €
Available
Signal inversion, 10-35V DC, 1x NC/NO, M12 3pin 0.3m, IP67, Plastic
Compare

Connection technology - Inverters

Our multi-function time relays / pulse stretchers can be considered as real alternatives when it comes to solutions for minor set control technology problems. The input signals, for example, can be switch-on or off delayed after a preset time. In order to be able to reduce the storage, multi-function relays can be used that provide, in addition to the already mentioned functions, operating modes like time-programming, pulse-forming or clocking. Besides, there is also star / delta change-over for load-contactors integrated in the motor start control. Reversing the switching logic or the polarity is possible with our fast signal inverters / impulse stretchers. These are characterized by extremely short response times and high switching frequencies. As an input circuit for a PLC these devices are perfect to record short signal or level changes.

Electrical properties

Number of outputs, undelayed, change-over contact
0
Number of outputs, delayed, normally closed contact
0
Number of outputs, delayed, normally open contact
0
Number of contacts as change-over contact
0
Number of normally closed contacts
1
Number of switching outputs
1
Number of normally open contacts
0
Type of signal processing
Signal inversion
Type of input signal
PNP
Type of plug-in contact, A connection
Female (socket)

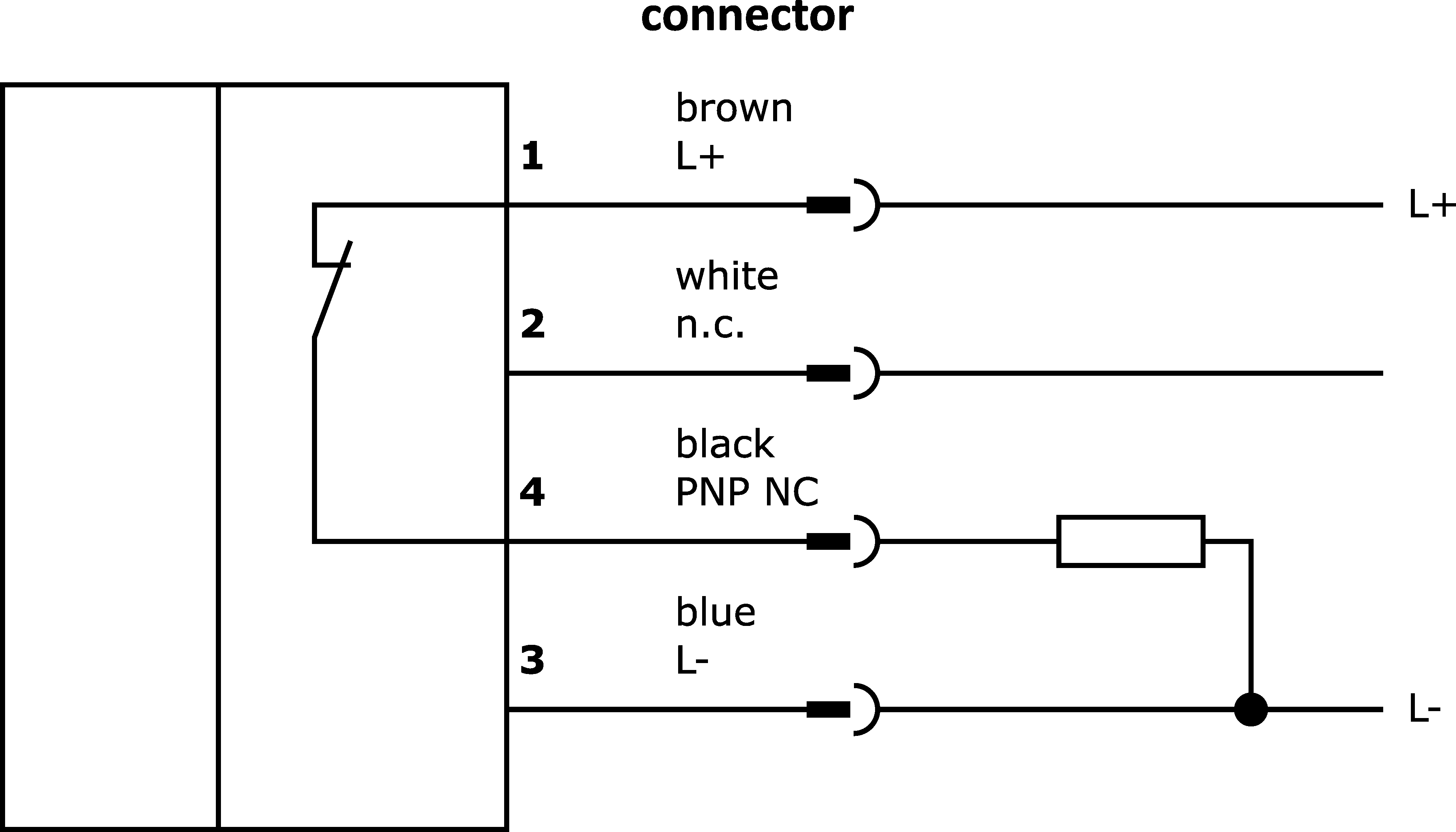

Type of plug-in contact, B connection
Male (connector)
Type of switching function
Normally closed contact/normally open contact
Type of switching output
PNP
Type of signal input A
PNP
Type of A electrical connection
M12
Type of B electrical connection
M12
Rated switching current
150mA
Short-circuit protection
Yes
No-load current
20mA
Number of pins of A connection
3
Number of pins of B connection
4
Switching frequency
10,000Hz
Switching voltage
35V
Operating voltage (DC)
10 - 35V
Display
LED display

Mechanical properties

Cable length
0.3m
Cable infeed of A connection
straight
Cable infeed of B connection
straight
Mounting method
Direct mounting
Degree of protection (IP)
IP67
Housing material
Plastic

Other properties

Ambient temperature
-25 - 70°C
You can find accessories for VY030224 in these product groups:

Adapter M12 socket 3-pin / M8 connector 3-pin

Cable sockets M12 3-wire

Sheath

Cable sockets M12-socket M12-connector 4-wire

Cable sockets M8-socket M12-connector 3-wire

Cable sockets M12-socket M8-connector 3-wire

Classification Class
eClass-7.0 27210990
eClass-7.1 27210990
eClass-8.0 27210990
eClass-9.0 27210990
eClass-9.1 27210990
ETIM-6.0 EC011231
ETIM-7.0 EC011231
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
IPF Product Group 800 miscellaneous
packaging dimensions 77 x 25 x 123mm
gross weight 38g
Customs tariff number 85365005
WEEE number 40951076
