Monitors - Standstill

WS200120

WS200120
List price
98,10 €
amount price discount
1 98,10 €
5 95,16 € 3% / 2,94 €
10 93,20 € 5% / 4,91 €
20 90,25 € 8% / 7,85 €
50 86,33 € 12% / 11,77 €
Scarce
standstill monitor, Ø20mm 60long, 0.015-1000Hz, 10-30V DC, 1x PNP NO, 4pin, IP67, plastic, teach-in
Compare

Monitors - Standstill

The monitoring of rotation speed or rotating movements is necessary in many applications to ensure the proper operation of the plant. Our rotation- and zero speed monitors operate according to different operating principles: 1. Monitoring of pulses of a transducer via a current transfomer, 2.Frequency measurement of the phase current Our devices feature, depending on the type, a wide variety of functions. For a further evaluation in a higher-level control, the results are i.e. outputted as easy relay contact (over-/ underspeed) or as analog output signal resolved to the set rotation speed range.

Monitoring functions of the monitor
Standstill

Electrical properties

Number of outputs
1
Type of switching function
Normally open contact (NO)
Type of switching output
PNP
Type of transistor output
PNP

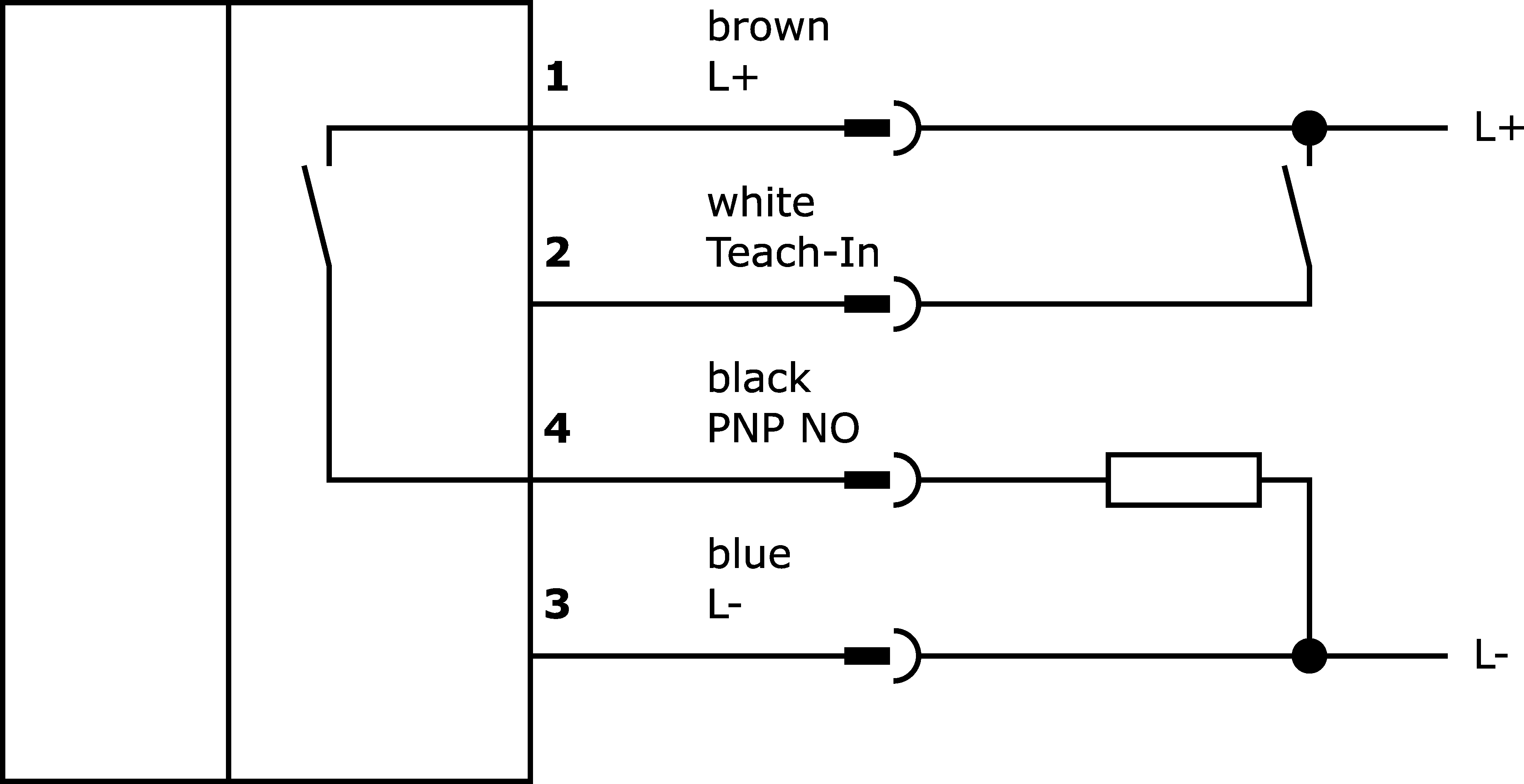

Type of A electrical connection
M12
Type of B electrical connection
M12
Rated switching current
150mA
Operating frequency
0.02 - 1,000Hz
Setting procedure
Teach-In
Relative hysteresis
5%
No-load current
10mA
Minimum pulse length
0ms
Number of pins
4
Voltage type for actuation
DC
Operating voltage (DC)
10 - 30V
Standstill monitoring function
Yes

Mechanical properties

Length
60mm
Storage temperature
-20 - 60°C
Degree of protection (IP)
IP67
Housing material
Plastic
Diameter
20mm

Other properties

Ambient temperature
0 - 60°C
You can find accessories for WS200120 in these product groups:

Cable sockets M12 4-wire

Cable sockets M12-socket M12-connector 4-wire

Classification Class
eClass-7.0 27371811
eClass-7.1 27371811
eClass-8.0 27371811
eClass-9.0 27371811
eClass-9.1 27371811
ETIM-6.0 EC001448
ETIM-7.0 EC001448
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
OzDS-compliant Yes
POP-compliant Yes
TSCA-compliant Yes
IPF Product Group 650 monitors
packaging dimensions 60 x 30 x 91mm
gross weight 27g
Customs tariff number 90292038
WEEE number 40951076
