EA300220
| amount | price | discount |
|---|---|---|
| 1 | 99,60 € | – |
| 5 | 96,61 € | 3% / 2,99 € |
| 10 | 94,62 € | 5% / 4,98 € |
| 20 | 91,63 € | 8% / 7,97 € |
| 50 | 87,65 € | 12% / 11,95 € |
Scarce

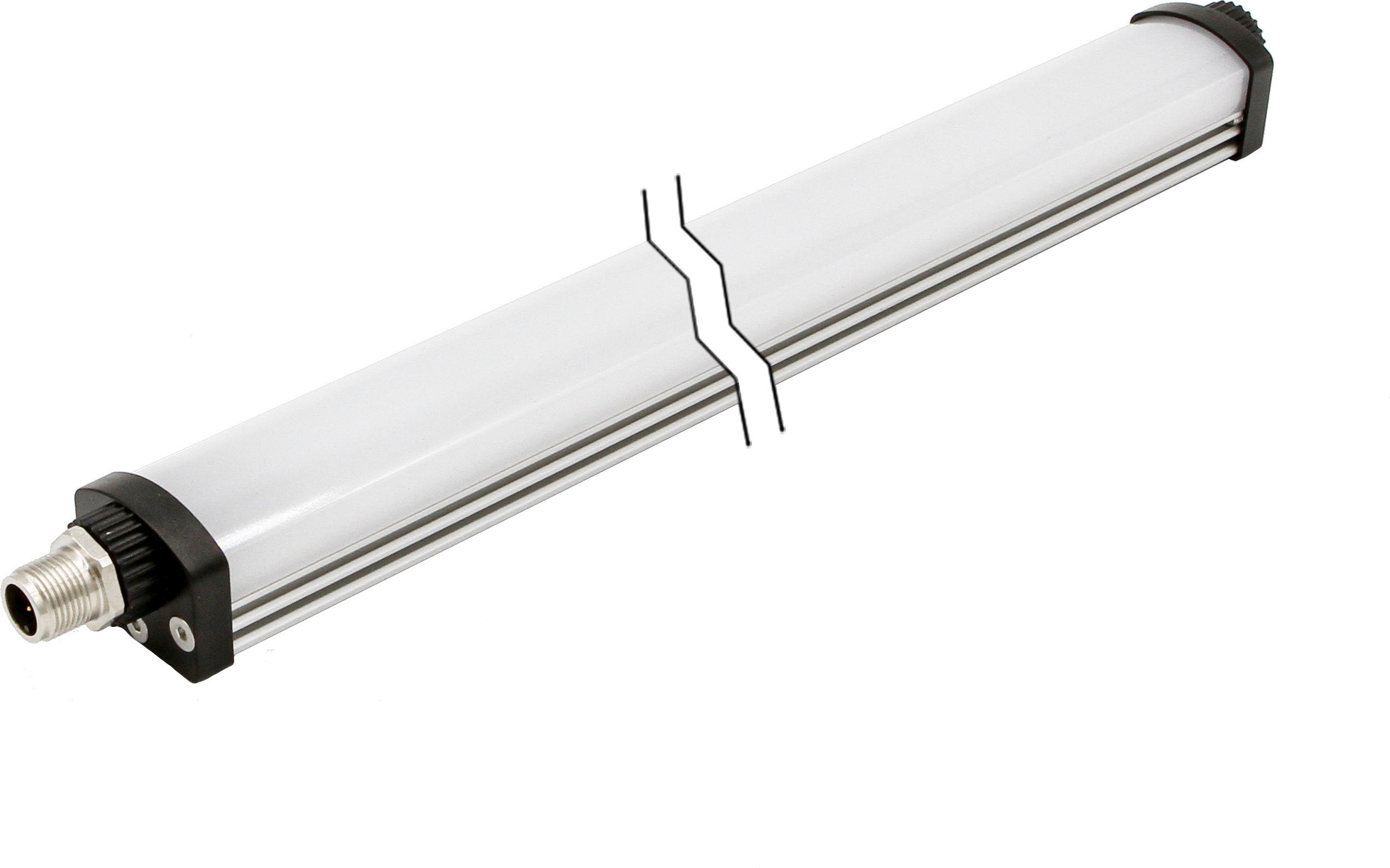

LED Workplace light, 25x206x30mm, White light, 4W, 5500K, 22-26V DC, M12-connector 3pin, IP54, Aluminum+Diffused polycarbonate
including 4x Holder
Compare
LED lights - Workplace lights
LED lights are required in nearly every industrial sector. A lighting coordinated on the respective workplace ensures a better visibility, increases the production quality, the working safety and helps additionally to safe energy costs. Their long lifetime, which is independent of switching cycles, reduces maintenance costs and increases the availability. LED lights are used for the illumination of workplaces, work areas of machines, control cabinets and several other fields of application.
Electrical properties
- Type of electrical connection
- Connector M12
- Rated operating current
- 166mA
- Power
- 4W
- Luminous flux
- 630lm
- Number of pins
- 3
- Protection class
- III
- Reverse polarity protection
- Yes
- Operating voltage (DC)
- 21.6 - 26.4V
Mechanical properties
- Design
- Cuboid
- Width
- 30mm
- Height
- 25mm
- Length
- 206mm
- Degree of protection (IP)
- IP54
- Front screen scattering behavior
- diffuse
- Housing material
- Aluminum
- Front screen material
- Polycarbonate
Optical properties
- Color temperature
- 5,500K
- Light source
- White light
- Angle of beam spread
- 120°
Other properties
- Risk group
- 0
- Ambient temperature
- -10 - 45°C
You can find accessories for EA300220
in these product groups:
Fixing material for EA30 / EZ30
Power supply 24V DC / 1A plug-in power supply pin 1/3
Adapter M12 socket 3-pin / M8 connector 3-pin
Power supply 24V DC / 2 – 10A
Cable sockets M12 5-pin field attachable
Cable sockets M12 4-pin field attachable
Cable sockets M12 4-wire shielded
Cable sockets M12 3-wire
Cable sockets M12 4-wire
Datasheets
Manuals
Drawings
-

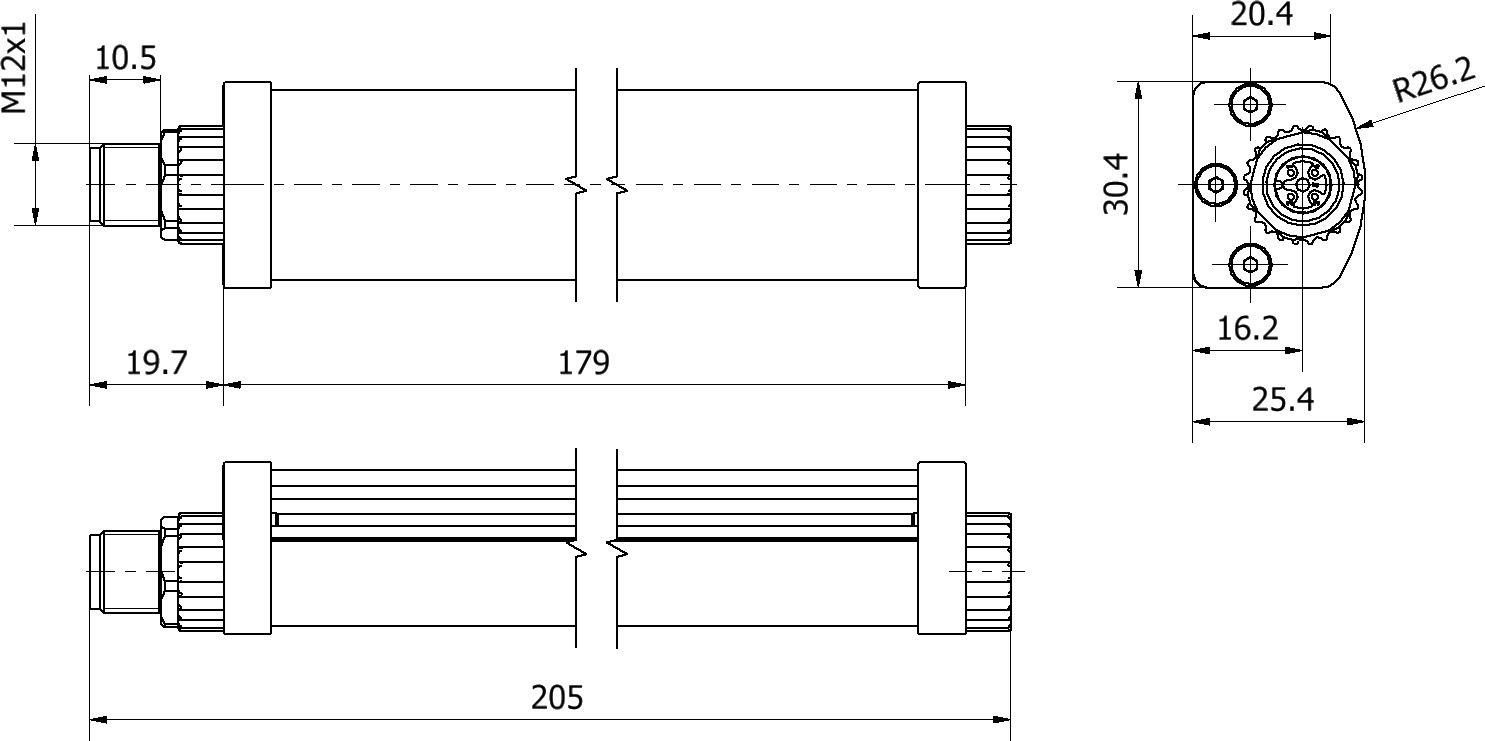

jpgBlueprintJPG-file, 80 KB
-
dwg2DDWG-file, 740 KB
-
stp3DSTP-file, 3.1 MB
-
pngWiring diagram - internetPNG-file, 5.6 KB
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 475 KB
-
pdfMaterial compliancePDF-file, 406 KB
-
pdfCE declaration of conformityPDF-file, 405 KB
-
pdfUL declaration of conformityPDF-file, 76 KB
-
pdfCCC declaration of conformityPDF-file, 73 KB
-
pdfCSA declaration of conformityPDF-file, 57 KB
Miscellaneous
| Classification | Class |
|---|---|
| eClass-7.0 | 27110390 |
| eClass-7.1 | 27110390 |
| eClass-8.0 | 27110390 |
| eClass-9.0 | 27110345 |
| eClass-9.1 | 27110345 |
| ETIM-6.0 | EC000348 |
| ETIM-7.0 | EC000348 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| IPF Product Group | 190 machine illuminations |
| packaging dimensions | 85 x 80 x 410mm |
| gross weight | 402g |
| Customs tariff number | 94054239 |
| WEEE number | 40951076 |
