LED lights - Signal lights
EZ300420
| amount | price | discount |
|---|---|---|
| 1 | 108,50 € | – |
| 5 | 105,25 € | 3% / 3,26 € |
| 10 | 103,08 € | 5% / 5,43 € |
| 20 | 99,82 € | 8% / 8,68 € |
| 50 | 95,48 € | 12% / 13,02 € |
Available

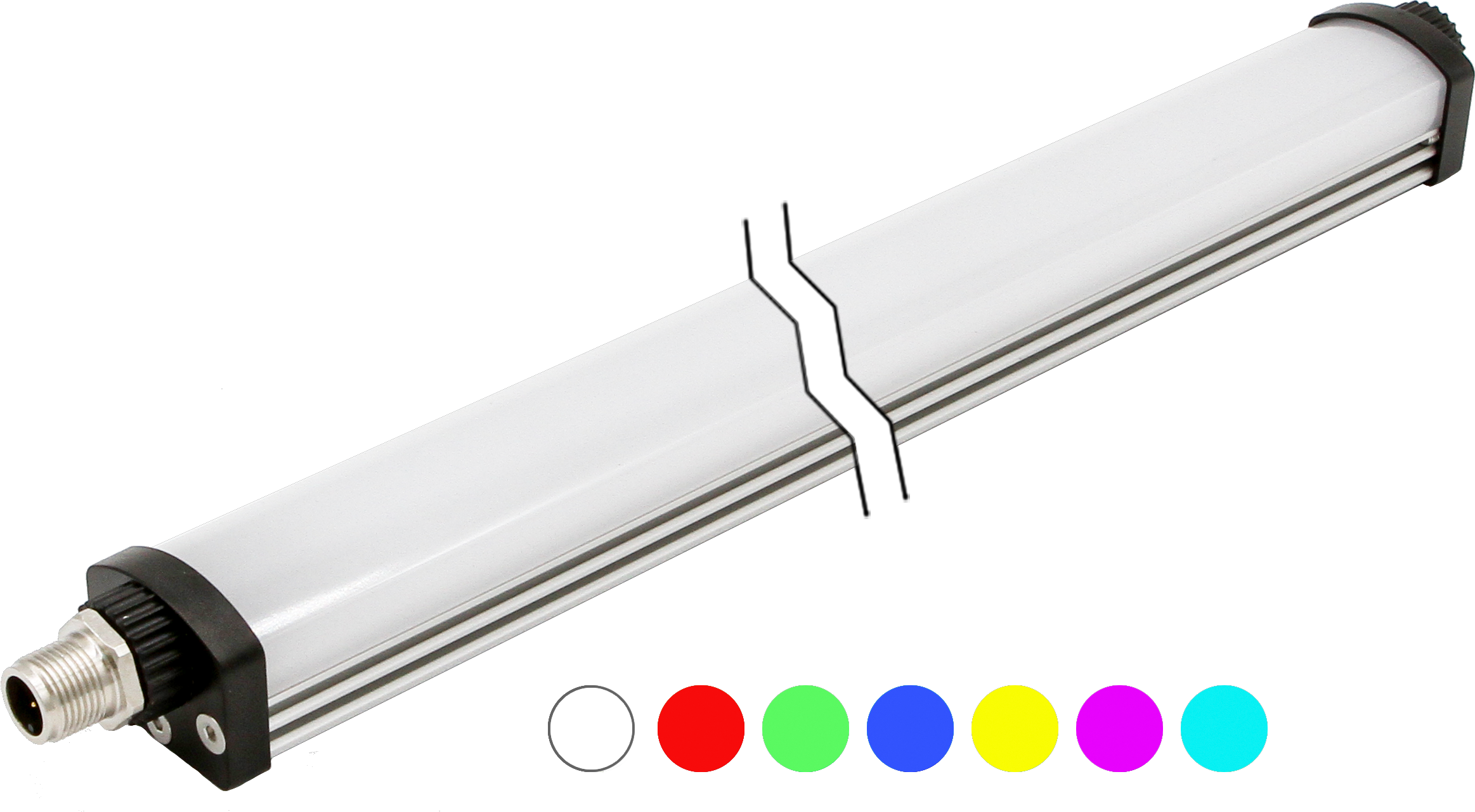

LED signal light, 25x206x30mm, multicolor LED, 5,4W, 24V, M12-connector 4pin, IP54, aluminum+polycarbonate
including 4x Holder
Compare
LED lights - Signal lights
LED lights are required in nearly every industrial sector. A lighting coordinated on the respective workplace ensures a better visibility, increases the production quality, the working safety and helps additionally to safe energy costs. Their long lifetime, which is independent of switching cycles, reduces maintenance costs and increases the availability. LED lights are used for the illumination of workplaces, work areas of machines, control cabinets and several other fields of application.
Electrical properties
- Type of electrical connection
- Connector M12
- Rated operating current
- 225mA
- Power
- 5.4W
- Number of pins
- 4
- Protection class
- III
- Operating voltage (DC)
- 24V
Mechanical properties
- Design
- Cuboid
- Width
- 30mm
- Height
- 25mm
- Length
- 206mm
- Light field length
- 170mm
- Degree of protection (IP)
- IP54
- Front screen scattering behavior
- diffuse
- Housing material
- Aluminum
- Front screen material
- Polycarbonate
Optical properties
- Lamp
- LED
- Light source
- Multi-colored LED
- Angle of beam spread
- 120°
- Signal color
- Yellow, Red, Green, Magenta, Blue, Cyan, White
Other properties
- Risk group
- 0
- Ambient temperature
- -10 - 50°C
You can find accessories for EZ300420
in these product groups:
Cable sockets M12 4-wire shielded
Fixing material for EA30 / EZ30
Cable sockets M12 5-pin field attachable
Cable sockets M12 4-pin field attachable
Cable sockets M12 5-wire
Cable sockets M12 4-wire
Cable sockets M12 5-wire shielded
Datasheets
Manuals
Drawings
-

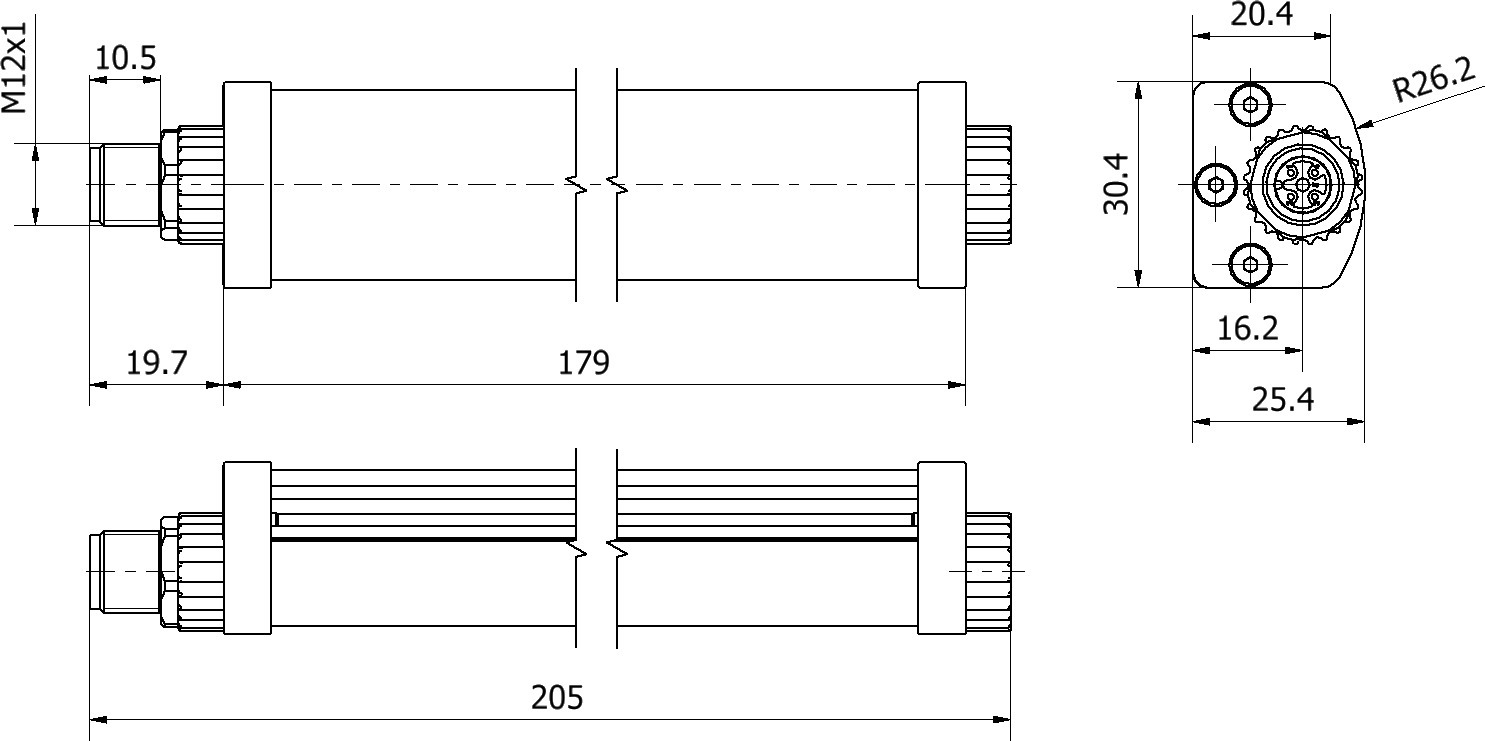

jpgBlueprintJPG-file, 80 KB
-
dwg2DDWG-file, 744 KB
-
stp3DSTP-file, 3.1 MB
-
pngWiring diagram - internetPNG-file, 13 KB
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 476 KB
-
pdfMaterial compliancePDF-file, 406 KB
-
pdfCE declaration of conformityPDF-file, 405 KB
-
pdfUL declaration of conformityPDF-file, 76 KB
-
pdfCCC declaration of conformityPDF-file, 73 KB
-
pdfCSA declaration of conformityPDF-file, 57 KB
Miscellaneous
| Classification | Class |
|---|---|
| eClass-7.0 | 27110390 |
| eClass-7.1 | 27110390 |
| eClass-8.0 | 27110390 |
| eClass-9.0 | 27110345 |
| eClass-9.1 | 27110345 |
| ETIM-6.0 | EC000348 |
| ETIM-7.0 | EC000348 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| IPF Product Group | 190 machine illuminations |
| packaging dimensions | 85 x 80 x 255mm |
| gross weight | 269g |
| Customs tariff number | 94054239 |
| WEEE number | 40951076 |
