Inductive sensors - atmospheric-change resistant
IB3004K0
| amount | price | discount |
|---|---|---|
| 1 | 176,10 € | – |
| 5 | 170,82 € | 3% / 5,28 € |
| 10 | 167,30 € | 5% / 8,81 € |
| 20 | 162,01 € | 8% / 14,09 € |
| 50 | 154,97 € | 12% / 21,13 € |
On demand

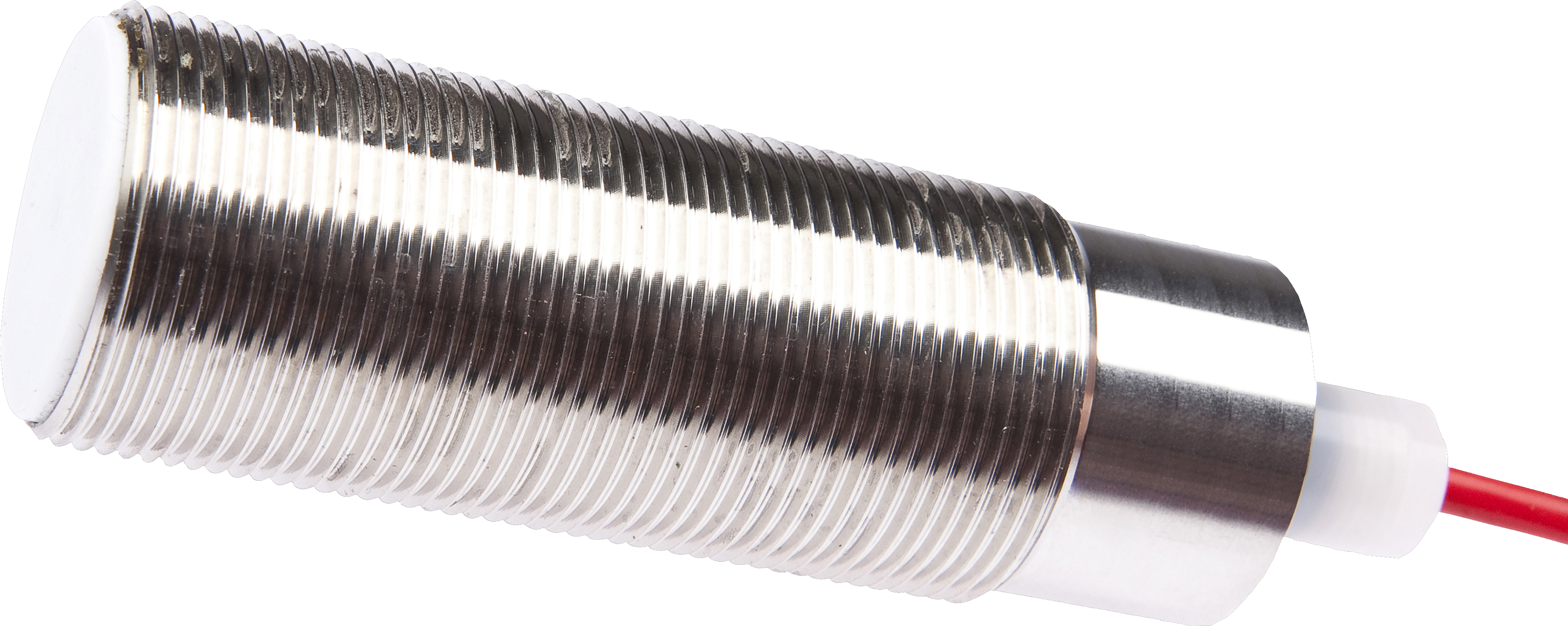

sensor inductive, M30x1.5 100long, Flush, Sn: 10, 10-30V DC, -25-120°C, PNP Anticoincidence, Cable 2m FEP, IP69K, V4A
including 2x Nut
Compare
Inductive sensors - atmospheric-change resistant
Inductive proximity switches are contact-free sensors. They detect all conductive metals, regardless of whether they move or not. The achievable sensing range of the devices depends on the object material and its dimensions. The vibration-resistant sensors can be approached laterally or frontally. Inductive proximity switches are used for presence detection (e.g. goods carriers), positioning (e.g. dampers), counting (e.g. nuts /bolts), speed detection (e.g. for cog wheels), on conveyor systems (e.g. hose feedings) or distance measurements (e.g. press-in checking) of metallic objects.
Electrical properties
- Type of switching function
- Exclusive-OR
- Type of electrical connection
- Cable
- Type of switching output
- PNP
- Rated switching current
- 200mA
- Relative hysteresis
- 10%
- Short-circuit protection
- Yes
- No-load current
- 4mA
- Relative repeat accuracy
- 3%
- Switching distance
- 10mm
- Switching frequency
- 1,000Hz
- Voltage drop
- 2V
- Reverse polarity protection
- Yes
- Operating voltage (DC)
- 10 - 30V
- Display
- LED display
Mechanical properties
- 0.25mm²
- Number of cores
- 4
- Alignment of cable entry
- axial
- Design
- Cylinder, screw-thread
- Pressure resistance
- 10bar
- Thread length
- 65mm
- Thread pitch
- 1.5mm
- Cable length
- 2m
- Cable infeed
- axial
- Length
- 100mm
- Mechanical mounting condition for sensor
- flush
- Degree of protection (IP)
- IP69K
- Active area material of sensor
- Plastic (PTFE)
- Housing material
- Stainless steel 1.4571
- Material of cable sheath
- Plastic (FEP)
- Thread dimension
- M30
- Atmospheric-change resistant (temperature cycle)
- Yes
Other properties
- Ambient temperature
- -25 - 120°C
- Reference medium / object
- Standard measuring plate FE360 30x30x1mm
- Oil and cooling lubricants
- Yes
You can find accessories for IB3004K0
in these product groups:
Mounting system, cylindrical, M30
Available
Power supply 24V DC / 100mA switching amplifier
Sensor tester
Sheath
Clamp holder for IB30
Logic module top hat rail
Fixing material ball-head holder
Available
Power supply 24V DC / 2 – 10A
Inverters – terminal
Protection cap, teflon M30
Fixing material design M30
Available
Datasheets

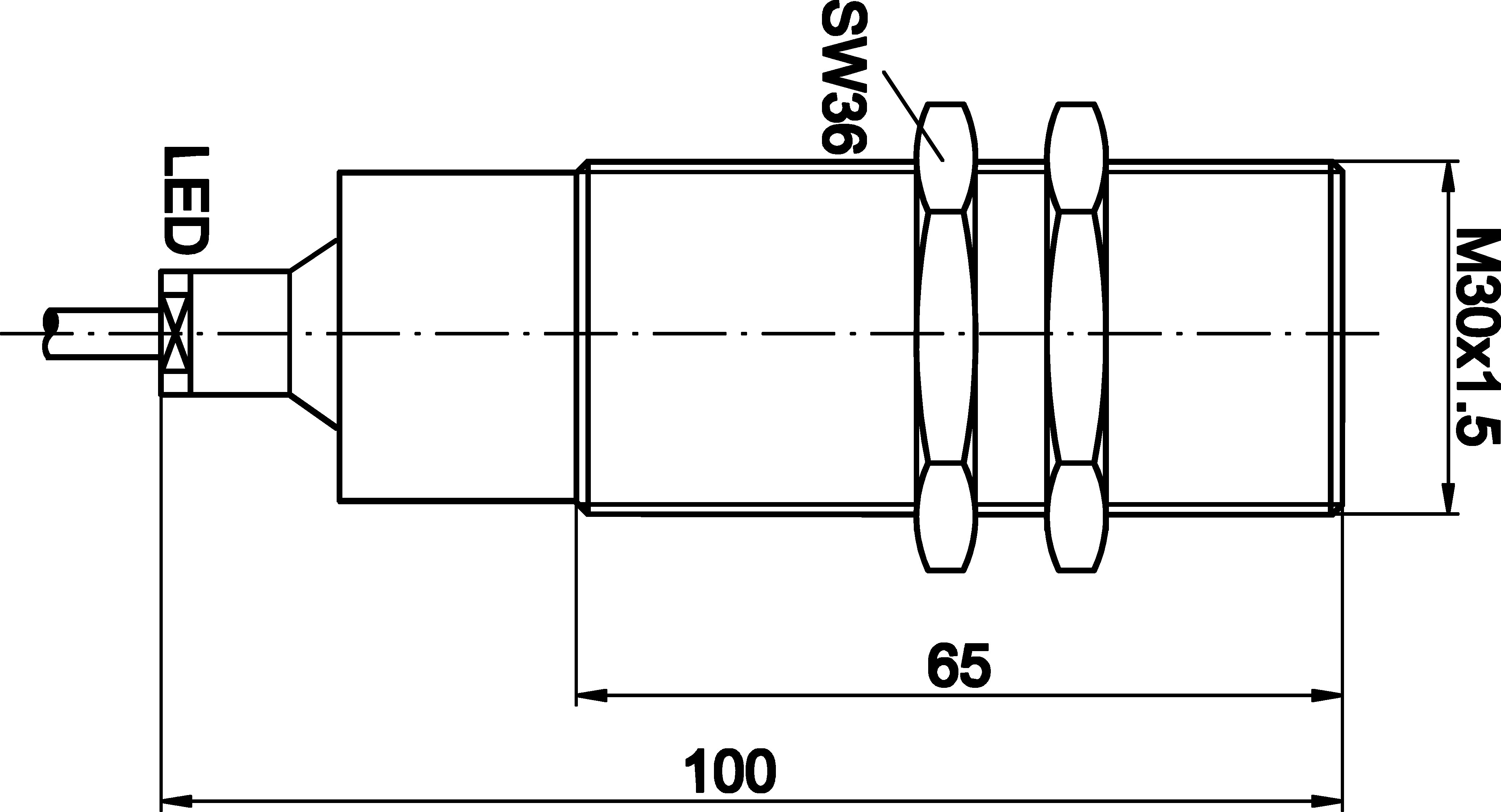

Drawings
-
jpgBlueprintJPG-file, 240 KB
-
dwg2DDWG-file, 79 KB
-
stp3DSTP-file, 50 KB
-
pngWiring diagram - internetPNG-file, 10 KB
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 326 KB
-
pdfMaterial compliancePDF-file, 407 KB
-
pdfCE declaration of conformityPDF-file, 255 KB
-
pdfUL declaration of conformityPDF-file, 76 KB
-
pdfCCC declaration of conformityPDF-file, 73 KB
-
pdfCSA declaration of conformityPDF-file, 57 KB
Miscellaneous
-
pdfWhitepaper food productionPDF-file, 481 KB
-
pdfFlyer inductive sensorsPDF-file, 3.9 MB
-
pdfFlyer food and beveragePDF-file, 1.7 MB
-
pdfWhitepaper inductive sensorsPDF-file, 563 KB
Links
| Classification | Class |
|---|---|
| eClass-7.0 | 27270101 |
| eClass-7.1 | 27270101 |
| eClass-8.0 | 27270101 |
| eClass-9.0 | 27270101 |
| eClass-9.1 | 27270101 |
| ETIM-6.0 | EC002714 |
| ETIM-7.0 | EC002714 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| IPF Product Group | 212 inductive sensors (unaffected by atmospheric changes) |
| packaging dimensions | 124 x 35 x 149mm |
| gross weight | 327g |
| Customs tariff number | 85365019 |
| WEEE number | 40951076 |
