fiber optic sensors - fiber optic amplifiers

OL400721

OL400721
List price
185,30 €
amountpricediscount
1185,30 €
5179,74 €3% / 5,56 €
10176,04 €5% / 9,27 €
20170,48 €8% / 14,82 €
50163,06 €12% / 22,24 €
Available
fiber optic-amplifier, 42x84x40mm, 10-35V DC, 2x PNP/NPN NC/NO, Connector M12 4pin, IP65, Aluminum, Infrared light, Alarm output

fiber optic sensors

Fiber optics in combination with the appropriate fiber optic amplifier function as contactless and wear-free position switches that can also be used in harsh environmental conditions. They detect objects independent of their characteristics (e.g., shape, color, surface structure, material). Because the ends and heads of the fiber optics have small dimensions and the fiber optics are flexible, very elegant solutions can be created for detecting objects in places that are difficult to access. Fiber optics can be used without special precautions in potentially explosive areas and in zones with electrical and/or magnetic fields (high-voltage installations, electrical welding equipment) as their function is not thereby affected. Fiber optics are available in versions for implementing the function as through-beam sensor or diffuse reflection sensor.

Mechanical features

Design
Cuboid
Ambient temperature
-10 - 60°C
Amplifier width
40mm
Amplifier length
83.5mm
Bendable
no
Fiber optic with bendable head
no
Housing material
Aluminum
Degree of protection (IP)
IP65
Amplifier height
42mm
Screw connection M18
Fiber optic with small bending radius
no

Electrical features

Voltage type
DC
Number of switching outputs
2
Number of semiconductor outputs with signaling function
2
Type of switching output
PNP/NPN
Operating voltage
10 - 35V
No-load current
30mA
Short-circuit protection
yes
Type of indication
LED
Hysteresis
15%
Type of alarm output
PNP/NPN
Number of pins
4
Switching frequency
1000Hz

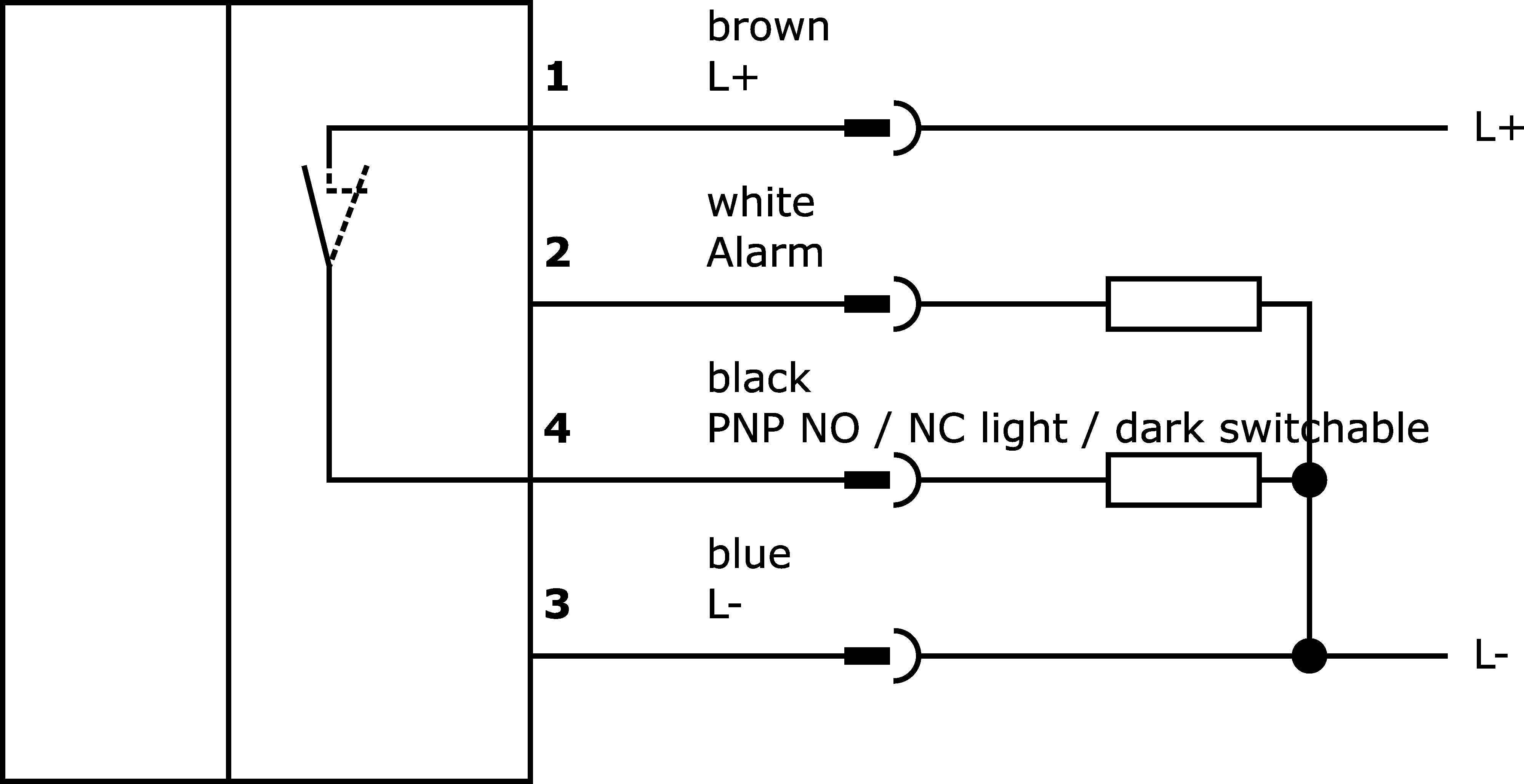

Type of electrical connection
Connector M12
Type of switching function
Normally closed contact/normally open contact
Setting procedure
Manual adjustment
Rated switching current
400mA
Scanning function
Light-/dark-on mode
Reverse polarity protection
yes
Voltage drop
2V
Response/decay time
1.6ms

Optical features

Light source
Infrared light
Fiber optic for attachment optics
no
Fiber optic with coaxial structure
no
Wavelength of the sensor
880nm
Fiber optic with linear light beam
no

Glass fiber optic diffuse reflection sensors

Cable sockets M12 4-wire

Cable sockets M12 4-wire shielded

Cable sockets M12 4-pin field attachable

Cable sockets M12 5-pin field attachable

Protection cap, teflon M18

Adapter M12 socket 4-pin / M8 connector 4-pin

Glass fiber optic through-beam sensors M18

ClassificationClass
eClass 7.027270905
eClass 7.127270905
eClass 8.027270905
eClass 9.027270905
eClass 9.127270905
ETIM-6.0EC002651
ETIM-7.0EC002651
IPF Product Group152
PropertyValue
shipping weight0.21kg
packaging dimensions43.0mm x 43.0mm x 105.0mm
customs tariff number85365019
