connection technology - cable sockets / connectors pre-assembled on one side

AO000070

AO000070
List price
129,70 €
Not in stock
accessories, optical, cable, 5m, Connector 7/8 inch Female (socket) 5pin Straight, Free conductor end, 4wire, PUR (Polyurethane), IP68, Metal, Oil and cooling lubricants, Welding area

connection technology

ipf cable sockets are used primarily for establishing the electrical connection of sensors. Their features are characterized by rugged design, the highest protection classes (IP67 | IP68 | IP69K) and, if desired, with 360° shielding. With the features: bus-ready, suitable for use with drag chains and robots, resistance to oil and chemicals, resistance to welding sparks, their resistance to cleaning agents or high-pressure and steam-jet cleaning, the expanded temperature range of up to +230°C, the rapid interconnection technology and special data transmission properties, the cable sockets meet all requirements in automation technology.

Mechanical features

Version
Connection cable
Housing material
Metal
Material of cable sheath
PUR (Polyurethane)
Suitable for trailing chain
yes
Cable length
5m
Number of cores
4
Degree of protection (IP)
IP68
Cable infeed of A connection
Straight

Electrical features

Type of cable
Multi-core

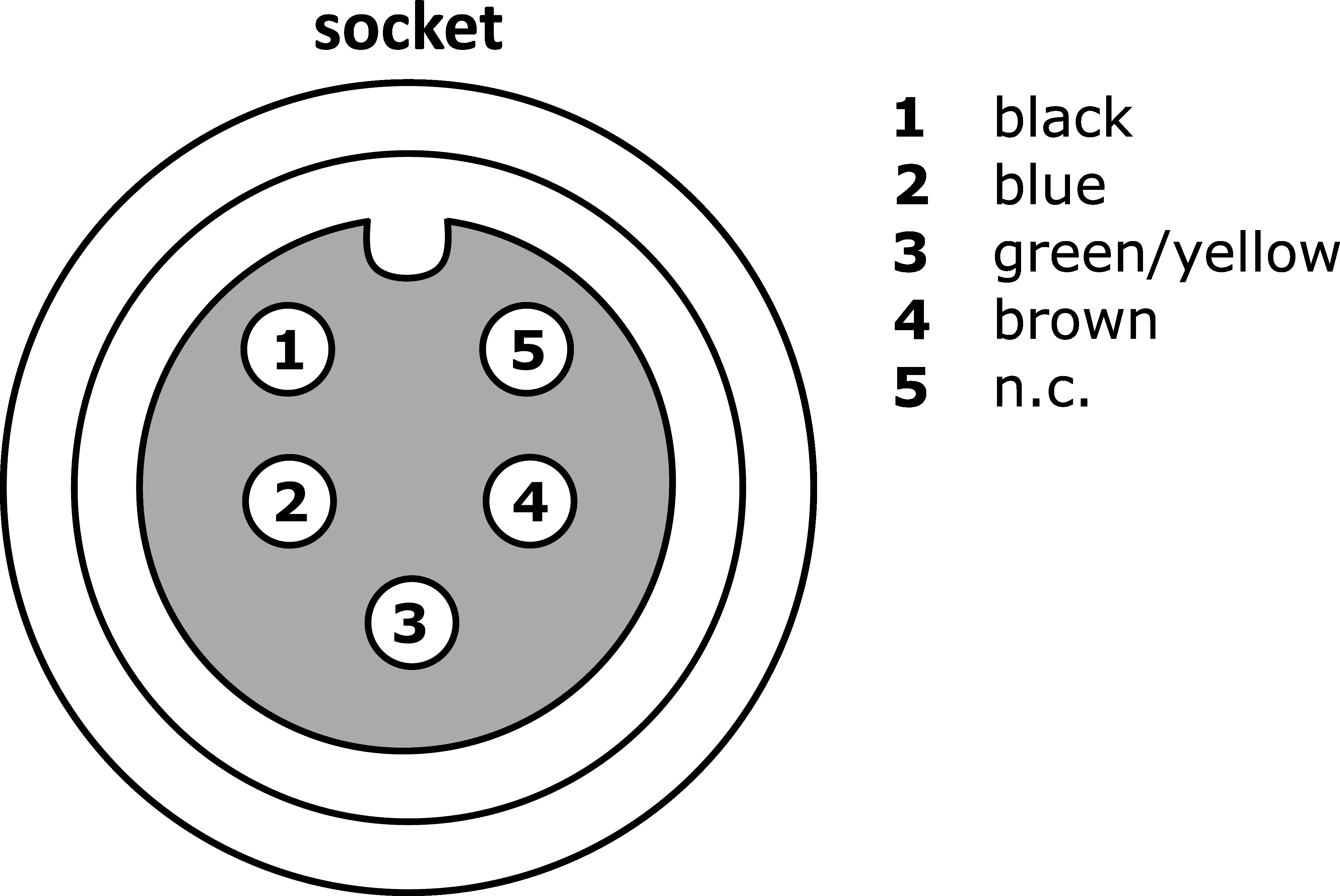

Type of A electrical connection
Connector 7/8 inch
Type of plug-in contact, A connection
Female (socket)
Number of pins of A connection
5
Type of B electrical connection
Free conductor end

Other features

Flame retardant
No
ClassificationClass
eClass 7.027279218
eClass 7.127279218
eClass 8.027279218
eClass 9.027060311
eClass 9.127060311
ETIM-6.0EC001855
ETIM-7.0EC001855
IPF Product Group900
PropertyValue
shipping weight0.57kg
packaging dimensions200mm x 40mm x 300mm
customs tariff number85444290
