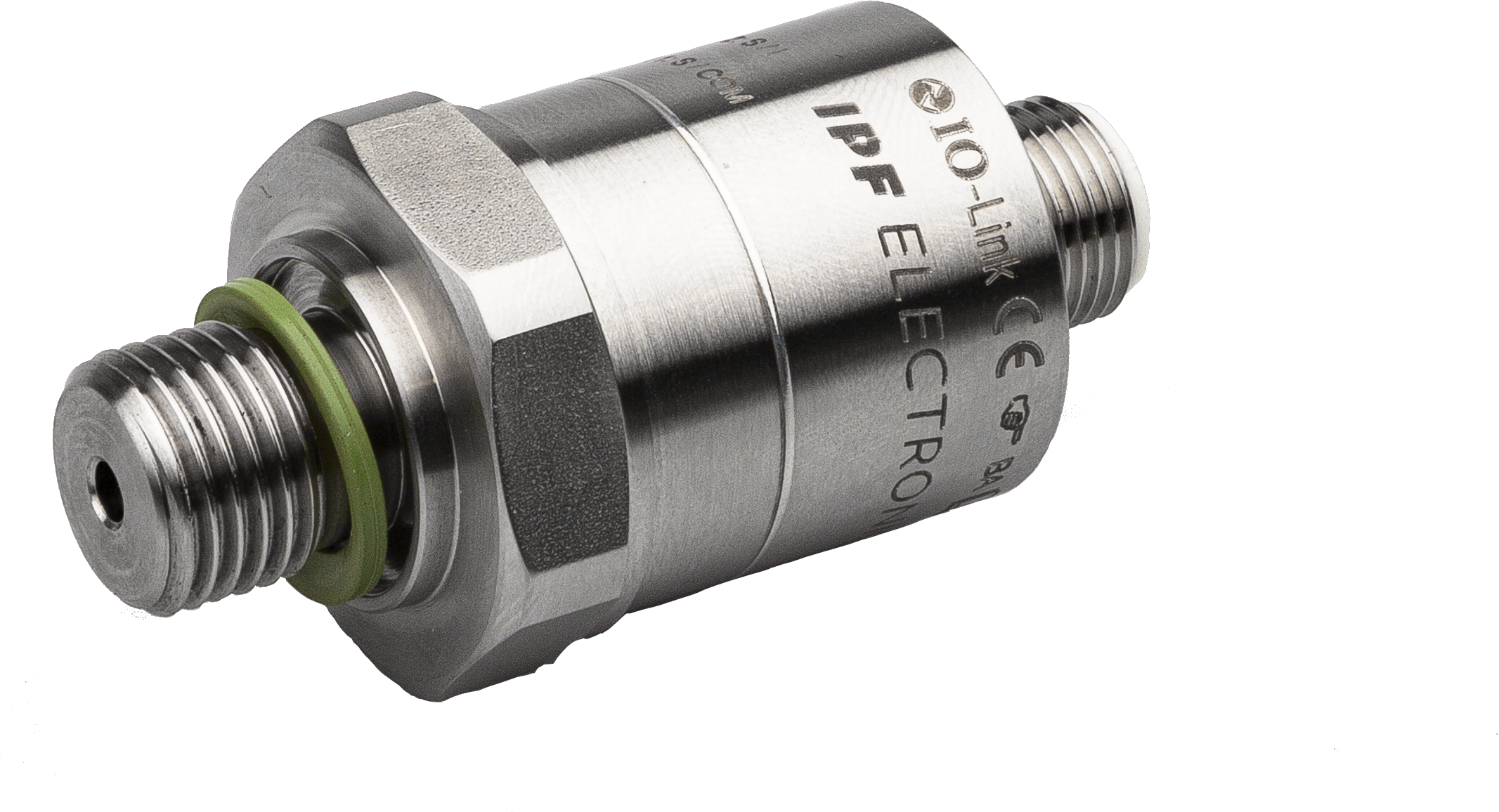

The DW25 series pressure sensors (G1/4" process connection) have two outputs, a pure switching output and an output that can be flexibly parameterized via IO-Link as a switching output, analogue output (0...20mA, 4...20mA) or alarm output. The flexibly adjustable sensors are therefore suitable for all conceivable applications with gaseous and liquid media.
The special features include a wide media temperature range from -40 °C to +100 °C, simple switchover normally open/ normally closed, setting of switch and release position, hysteresis settings, window function, definition of a turn-off delay, setting of damping and an integrated peak value memory.
Advantages
- Highly flexible parameterization via IO-Link
- variable output functions: 2 switching outputs or 1 switching output and 1 analog output (0...20mA, 4...20mA)
- Suitable e.g. as a 2-point controller, limiter and monitor in level monitoring systems
- Media temperature range (-40 °C...+100 °C)
| Classification | Class |
|---|---|
| eClass-7.0 | 27200614 |
| eClass-7.1 | 27200614 |
| eClass-8.0 | 27200614 |
| eClass-9.0 | 27200614 |
| eClass-9.1 | 27200614 |
| ETIM-6.0 | EC011478 |
| ETIM-7.0 | EC011478 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| MTTF value | 463Jahr(e) |
| IPF Product Group | 361 pressure sensors (diverse) |
| packaging dimensions | 120 x 70 x 170mm |
| gross weight | 162g |
| 0,73kg CO₂e | |
| Customs tariff number | 90262020 |
| WEEE number | 40951076 |
