capacitive sensors - integrated button

KY98C962

KY98C962
Not in stock
sensor capacitive, push button, M18x1, 22.5mm, STOP, 19-29V DC, -30°C, Relay contact NC, Connector M8 4pin, IP67, Plastic Anodised, With LED display

push-buttons

Capacitive proximity switches are contact-free sensors. They detect metallic and non-metallic objects, regardless of whether they move or not. The achievable sensing range of the devices depends on the object material, its dimensions and the response sensitivity, which is set via a potentiometer. The vibration-resistant sensors can be approached laterally or frontally. Capacitive proximity switches are used for presence detection (e.g. sealing detection), positioning (e.g. PET bottles), counting (e.g. plastic caps), level detection (e.g. lubricant) or distance measurements (e.g. thickness measurement) of solid and liquid materials.

Mechanical features

Hole diameter
22.5mm
Design
Cylinder, screw-thread
Housing material
Plastic
Ambient temperature
-30 - 70°C
Thread size, metric
18
Degree of protection (IP)
IP67
Lens design
Round
Thread length
10mm
Button design
Flat
Housing coating
Anodized
Front ring color
Chrome
Thread pitch
1mm
Front ring material
Metal
Max. tightening torque
1Nm

Electrical features

Voltage type
DC
Number of pins
4

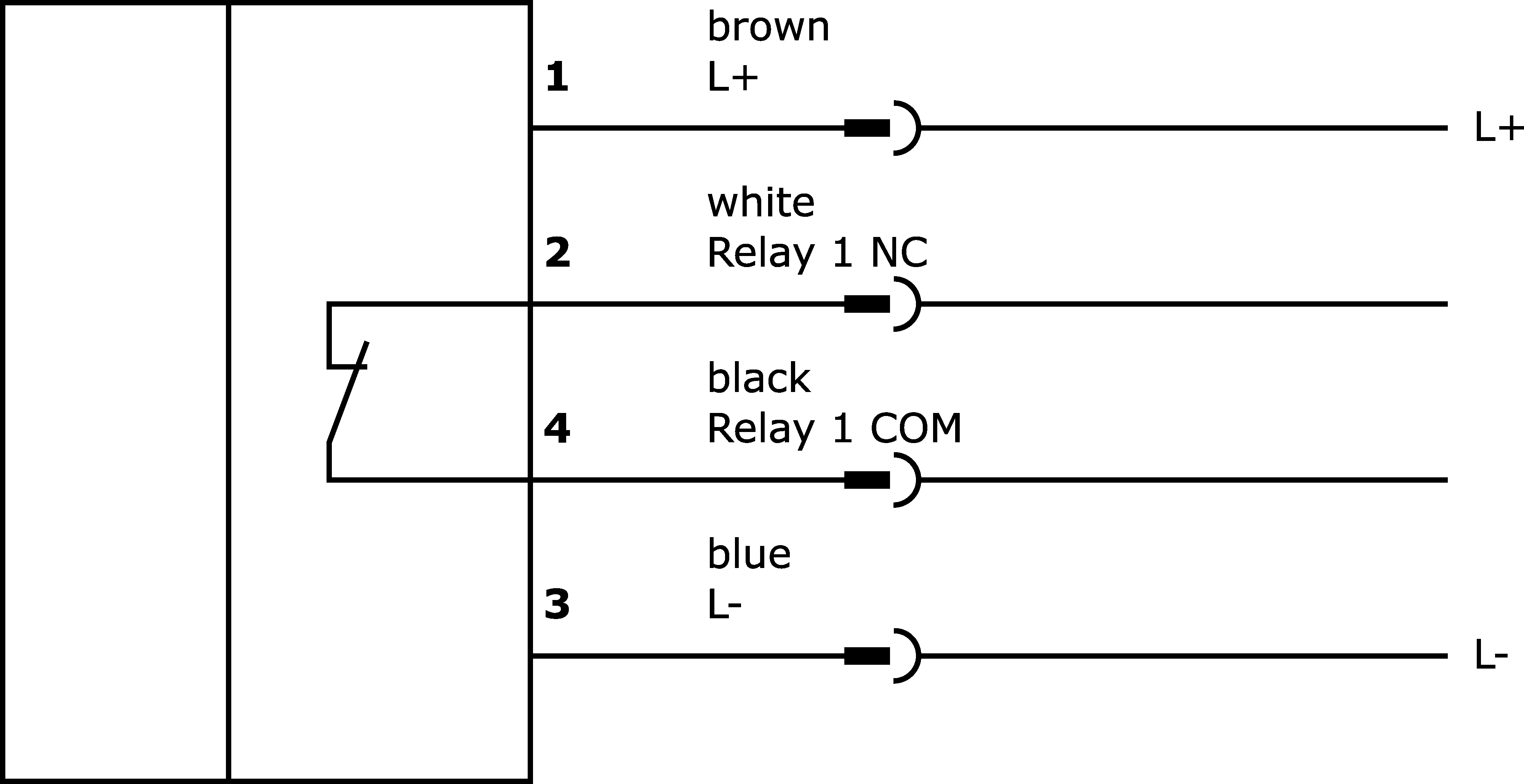

Type of electrical connection
Connector M8
Type of switching function
Normally closed contact
No-load current
30mA
Rated switching current
400mA
Number of contacts as normally closed contact
1
Voltage drop
2.5V
Suitable for illumination
yes
Scanning
yes
Type of switching output
Relay contact
Rated control supply voltage Us at DC
19.2 - 28.8V
Supply voltage of lamp
24V
Switching function, latching
no
Reverse polarity protection
yes

Other features

Printing
STOP
With front ring
yes

Cable sockets M8-socket M8-connector 4-wire

Adapter M8 socket 4-pin / M12 connector 4-pin

ClassificationClass
eClass 7.027371228
eClass 7.127371228
eClass 8.027371228
eClass 9.027371228
eClass 9.127371228
ETIM-6.0EC001028
ETIM-7.0EC001028
IPF Product Group700
PropertyValue
shipping weight0.03kg
packaging dimensions43.0mm x 43.0mm x 105.0mm
customs tariff number85365019
