optical sensors - contrast sensors

OK630180

OK630180
List price
812,10 €
amountpricediscount
1812,10 €
5787,74 €3% / 24,36 €
10771,50 €5% / 40,61 €
20747,13 €8% / 64,97 €
50714,65 €12% / 97,45 €
Scarce
sensor optical, contrast, 36x65x65mm, Sn: 1-500, 24V DC, 2x PP, 0-10V/4-20mA, Connector M9, 200kHz, With fiber optics connection, RS232, Programmable via software

contrast scanner

Contrast scanners are capable to distinguish the the visual differences (e.g. reflectivity, brightness differences) between adjacent areas. In general, the devices project a light spot on an object's surface and analyze the reflected light. Fiber optic amplifier versions can be used in addition to the incident light mode also in the transmitted light mode. Contrast scanners are versatile. They can be used, among other things, for position control of printing or color marks, distinction of brightness variations or in the intensity control of luminous objects (like LEDs, displays etc.).

Mechanical features

Design
Cuboid
Sensor height
36mm
Storage temperature
-20 - 85°C
Sensor width
65mm
Sensor length
65mm

Electrical features

Voltage type
DC
Switching frequency
200000Hz

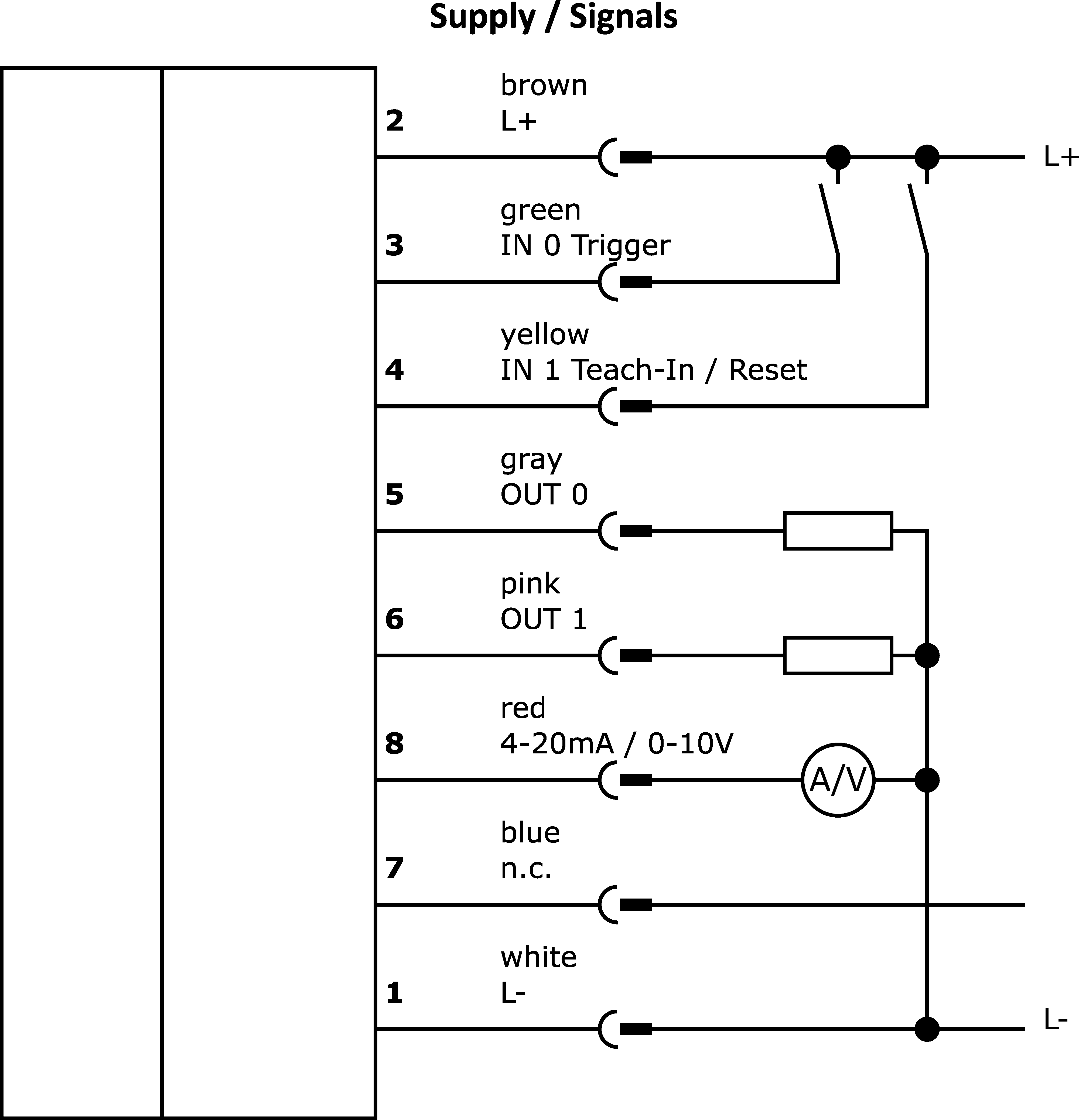

Type of electrical connection
Connector M9
Operating voltage
24 - 24V
Short-circuit protection
yes
Reverse polarity protection
yes
Light color, selectable
no
Number of switching outputs
2
Type of analog output
0 V ... 10 V / 4 mA ... 20 mA
Type of switching output
PP
Rated switching current
100mA
Sensing range
1 - 500mm
Programmable via software
yes

Optical features

Detection of print marks
no
Turbidity inspection
yes
Detection of fluorescent materials
no
Transmitted light applications
yes

M5 Verschlussschraube

Cable connectors M9

Cable connectors M5 Sub-D-socket

Cable connectors M5 USB

Programming adapter Ethernet

Glass fiber optic color sensors, through-beam

Glass fiber optic color sensors, diffuse reflection

Protection cap, teflon M18

ClassificationClass
eClass 7.027270906
eClass 7.127270906
eClass 8.027270906
eClass 9.027270906
eClass 9.127270906
ETIM-6.0EC001820
ETIM-7.0EC001820
IPF Product Group108
PropertyValue
shipping weight0.19kg
packaging dimensions99.0mm x 60mm x 160mm
customs tariff number85365019
