flow sensors - sensors for air

SL450024

SL450024
List price
348,00 €
amountpricediscount
1348,00 €
5337,56 €3% / 10,44 €
10330,60 €5% / 17,40 €
20320,16 €8% / 27,84 €
50306,24 €12% / 41,76 €
Not in stock

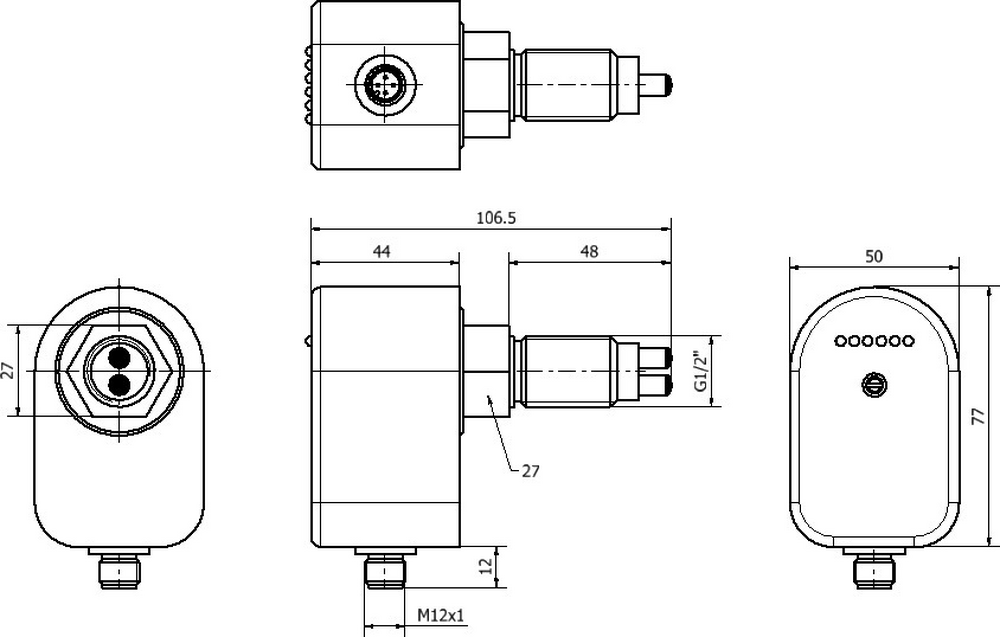

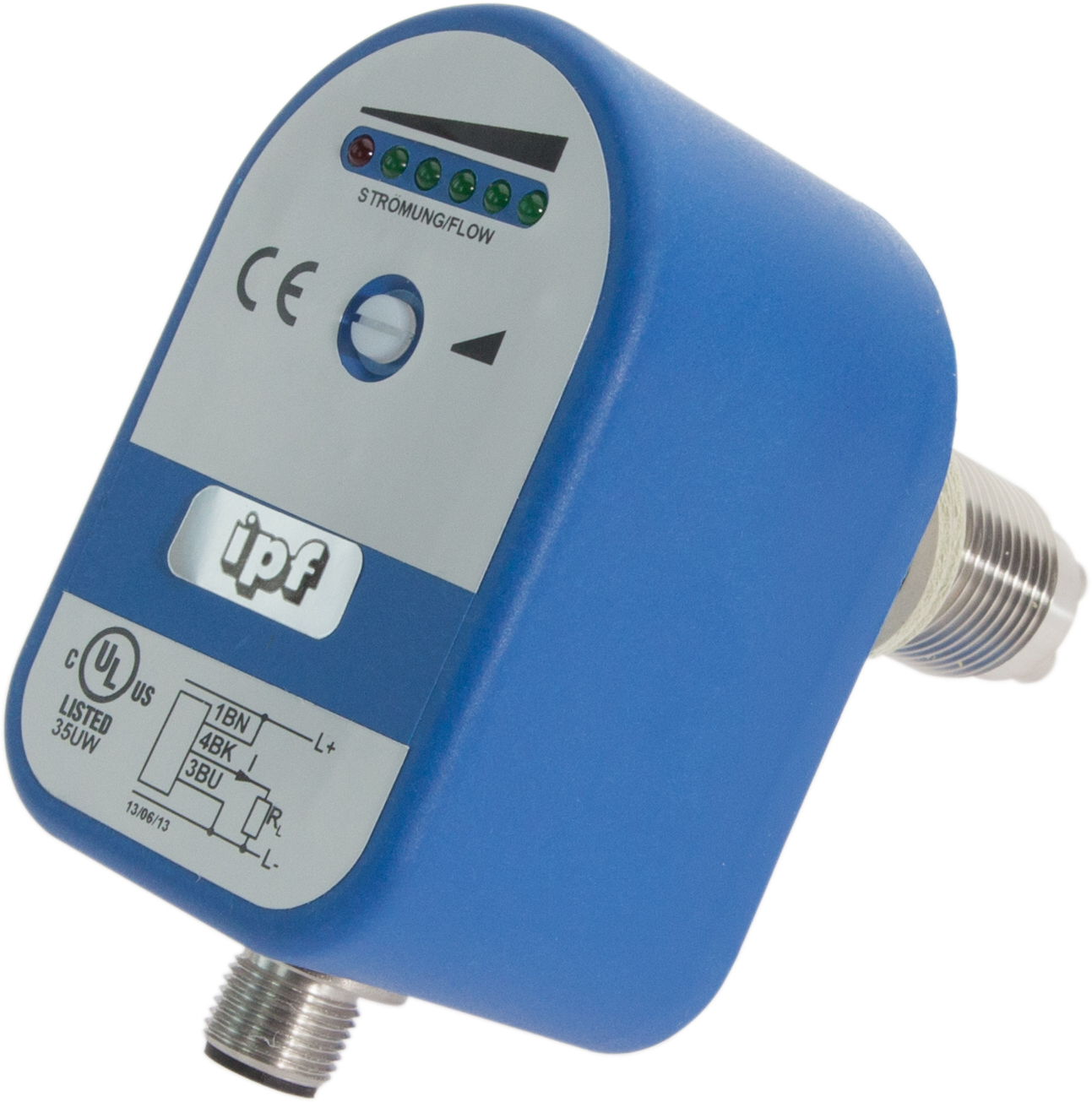

sensor flow, Air, Calorimetric, 78x108x50mm, G1/2 inch, 24V DC, 4-20mA, Plug-in connection M12, PBT, Pressure resistance 30bar
including 1x Screwdriver

flow sensors

The function of the flow sensor is based on the calorimetric principle. The probe is heated up from the inside a few degrees Celsius in relation to the flow medium, in which it protrudes. When the medium flows, the heat generated in the probe is dissipated through the medium. The temperature within the sensor is measured and compared with the likewise measured medium temperature. From the obtained temperature difference the flow state of each medium can be derived. These sensors are applied in areas such as monitoring of cooling systems, ventilation systems, pump dry running by checking the presence of liquid or gas flows.

Mechanical features

Width
50mm
Depth
106mm
Design
Cuboid
Length
108mm
Type of process connection
G1/2 inch
Degree of protection (IP) of measuring head
IP67
Measuring range of flow velocity with air
0.5 - 30m/s
Height
78mm
Thread length
48mm
Pressure resistance
30bar
Housing material
PBT
Degree of protection (IP) of evaluation electronics
IP67
Sensing element material
Stainless steel 1.4305

Electrical features

Voltage type
DC
Type of electrical connection
Plug-in connection M12
No-load current
80mA
Adjustable responding value for flow for gases
0.5 - 30m/s
Readiness delay
90ms
Type of analog output
4 mA ... 20 mA
Operating voltage
24 - 24V
Pressure resistance of measuring head
30bar
Residual ripple
15%
Measuring principle of flow
Calorimetric

Other features

Reference medium
Air

Cable sockets M12 3-wire

Cable sockets M12 4-wire shielded

Cable sockets M12 4-pin field attachable

Cable sockets M12 5-pin field attachable

Adapter M12 socket 3-pin / M8 connector 3-pin

Accessories flow sensors

ClassificationClass
eClass 7.027371815
eClass 7.127371815
eClass 8.027371815
eClass 9.027371815
eClass 9.127371815
ETIM-6.0EC002580
ETIM-7.0EC002580
IPF Product Group300
PropertyValue
shipping weight0.46kg
packaging dimensions138.0mm x 95.0mm x 210mm
customs tariff number90268020
