SL90A216
| amount | price | discount |
|---|---|---|
| 1 | 346,10 € | – |
| 5 | 335,72 € | 3% / 10,38 € |
| 10 | 328,80 € | 5% / 17,31 € |
| 20 | 318,41 € | 8% / 27,69 € |
| 50 | 304,57 € | 12% / 41,53 € |
On demand

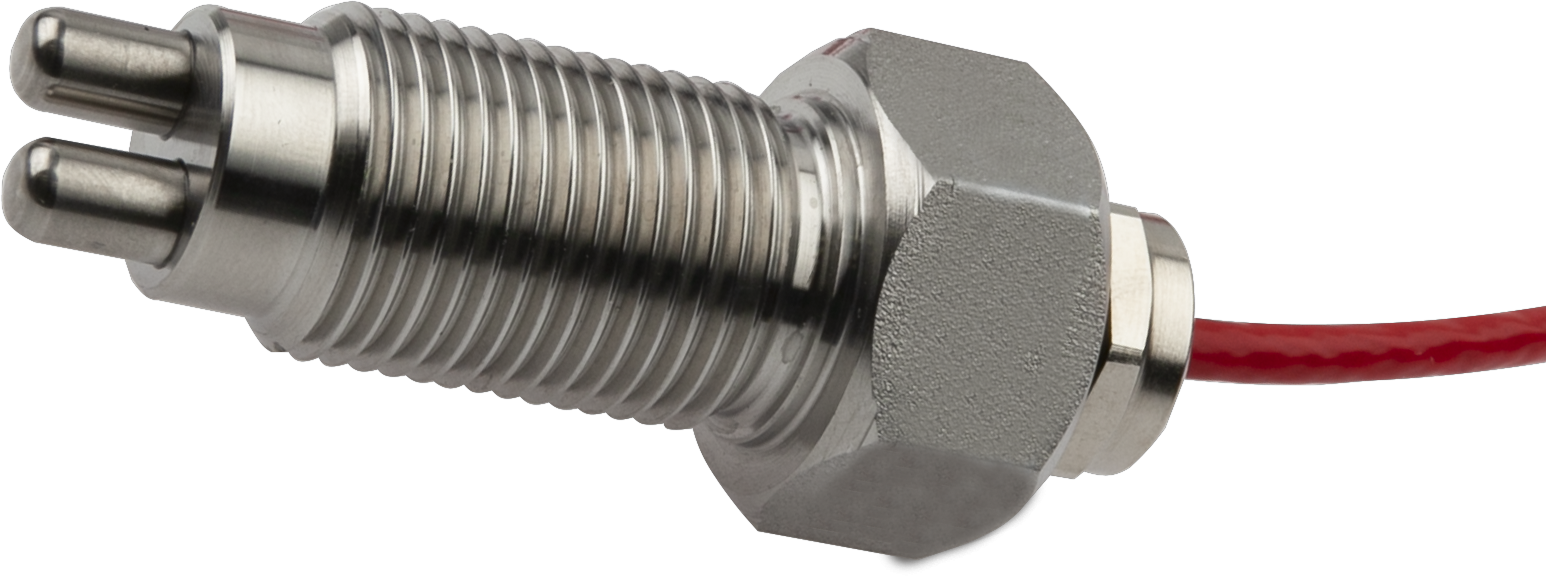

Flow sensor , air, calorimetric, G 1/2", connection to amplifier, cable 2m PTFE, V4A, pressure resistance 10bar
including 1x Sealing ring
Compare
Flow sensors - Sensors for air
The function of the flow sensor is based on the calorimetric principle. The probe is heated up from the inside a few degrees Celsius in relation to the flow medium, in which it protrudes. When the medium flows, the heat generated in the probe is dissipated through the medium. The temperature within the sensor is measured and compared with the likewise measured medium temperature. From the obtained temperature difference the flow state of each medium can be derived. These sensors are applied in areas such as monitoring of cooling systems, ventilation systems, pump dry running by checking the presence of liquid or gas flows.
- 0.5 - 30
Electrical properties
- Response/decay time
- 30,000ms
- Type of electrical connection
- Cable
- Readiness delay
- 90ms
- Measurement principle
- calorimetric
- Connection to amplifier
- Yes
Mechanical properties
- 0.25mm²
- Number of cores
- 4
- Type of process connection
- G1/2 inch
- Design
- Cylinder, screw-thread
- Pressure resistance
- 10bar
- Thread length
- 48mm
- Cable length
- 2m
- Medium temperature
- -20 - 120°C
- Degree of protection (IP)
- IP67
- Housing material
- Stainless steel 1.4571
- Material of cable sheath
- Plastic (PTFE)
- Sensing element material
- Stainless steel 1.4571
- Measuring range flow velocity
- 0.5 - 30m/s
Other properties
- Ambient temperature
- -20 - 70°C
- Suitable media
- Gases
- Reference medium / object
- Air
- For pneumatic applications
- Yes
- Suitable for liquids
- No
Amplifier flow sensors
Sheath
Datasheets
Drawings
-

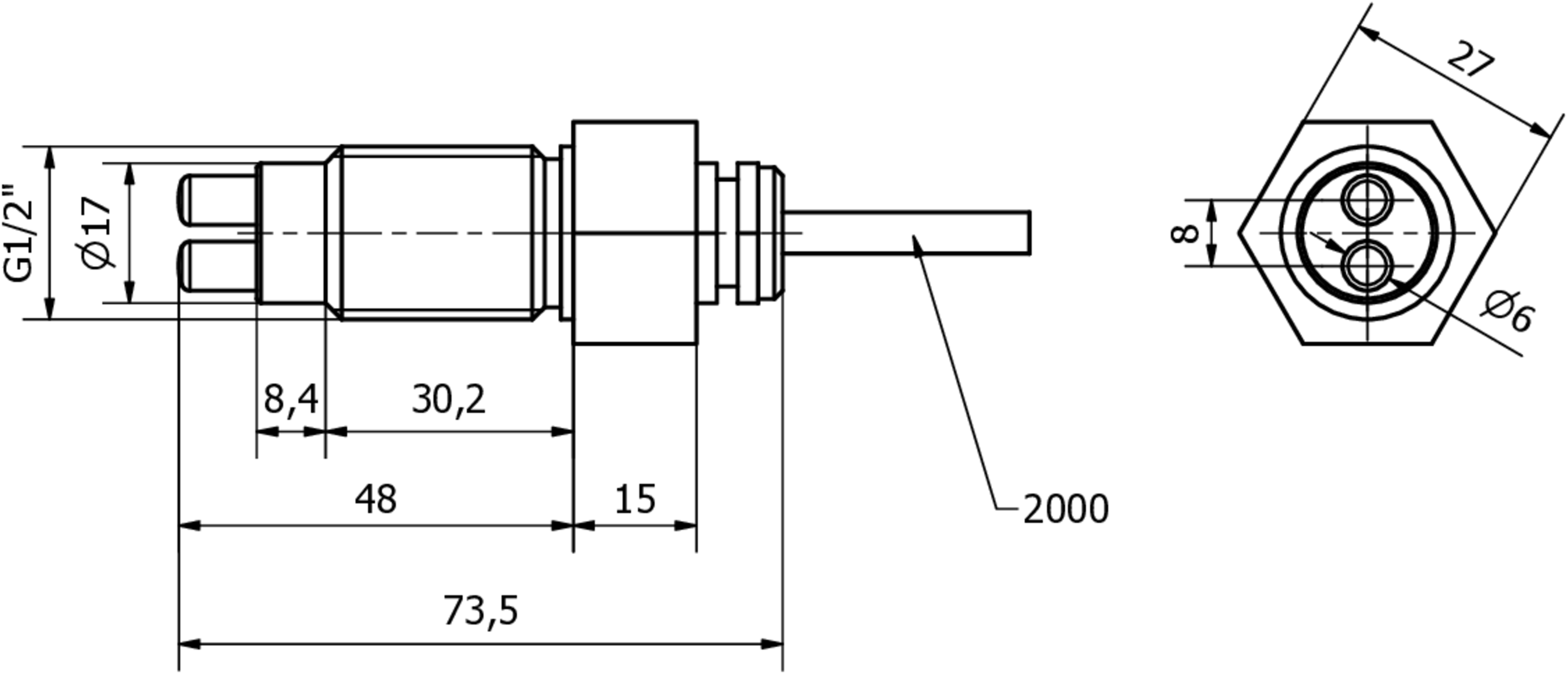

jpgBlueprintJPG-file, 209 KB
-
dwg2DDWG-file, 219 KB
-
stp3DSTP-file, 209 KB
-

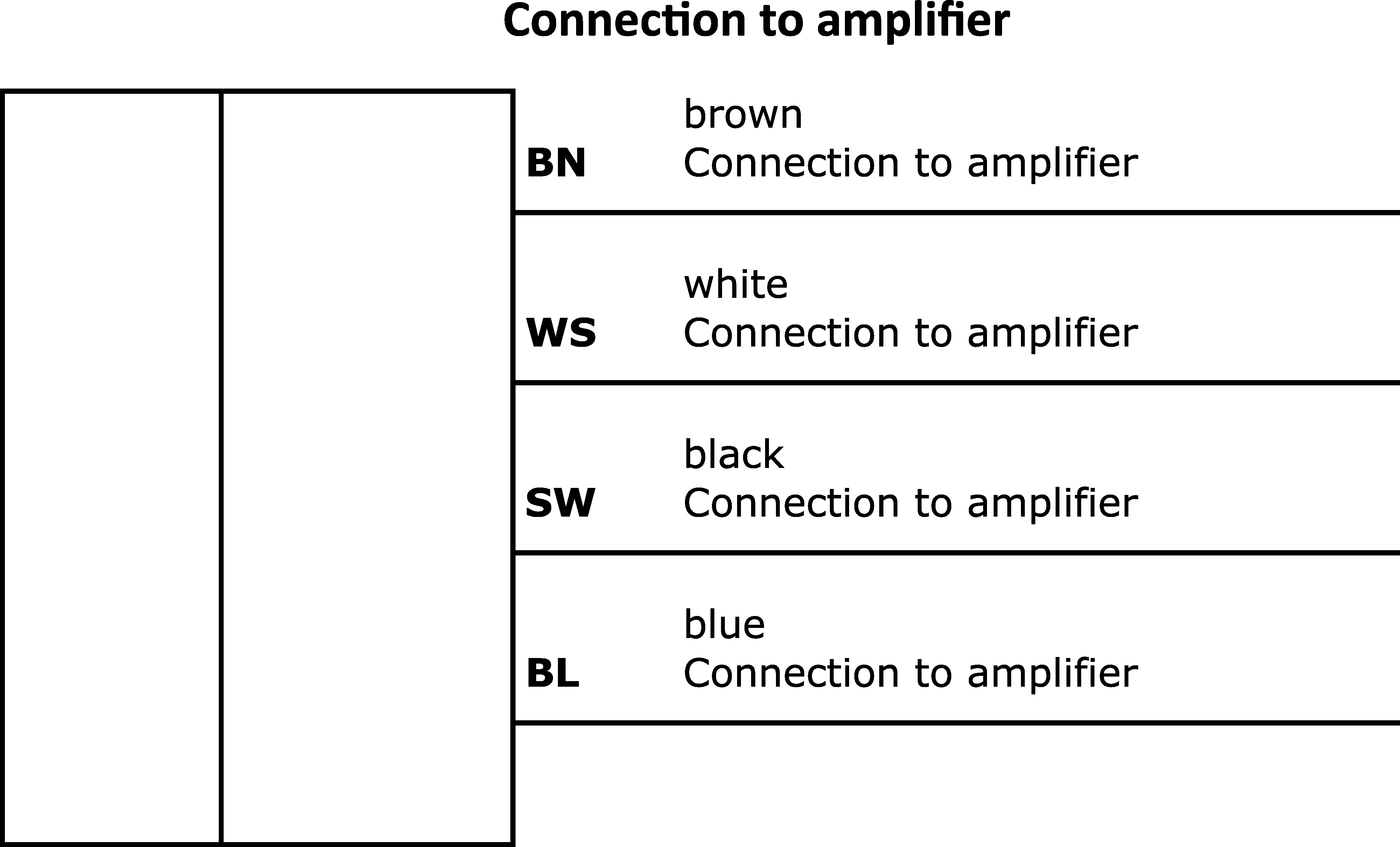

pngWiring diagram - internetPNG-file, 13 KB
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 325 KB
-
pdfMaterial compliancePDF-file, 406 KB
-
pdfCE declaration of conformityPDF-file, 253 KB
Miscellaneous
| Classification | Class |
|---|---|
| eClass-7.0 | 27371815 |
| eClass-7.1 | 27371815 |
| eClass-8.0 | 27371815 |
| eClass-9.0 | 27371815 |
| eClass-9.1 | 27371815 |
| ETIM-6.0 | EC002580 |
| ETIM-7.0 | EC002580 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| IPF Product Group | 300 flow sensors |
| packaging dimensions | 124 x 35 x 149mm |
| gross weight | 231g |
| Customs tariff number | 90268020 |
| WEEE number | 40951076 |
