Connection technology - Cable sockets / connectors for self-assembly

VK003C25

VK003C25
List price
13,10 €
Available
Cable socket, Straight, Suitable for self-assembly, Screw connection, Ø4-8mm, 4A, 60V, -25-90°C, M12 Female (socket) 5pin, IP67, PBT
Compare

Connection technology - Cable sockets / connectors for self-assembly

ipf cable sockets are used primarily for establishing the electrical connection of sensors. Their features are characterized by rugged design, the highest protection classes (IP67 | IP68 | IP69K) and, if desired, with 360° shielding. With the features: bus-ready, suitable for use with drag chains and robots, resistance to oil and chemicals, resistance to welding sparks, their resistance to cleaning agents or high-pressure and steam-jet cleaning, the expanded temperature range of up to +230°C, the rapid interconnection technology and special data transmission properties, the cable sockets meet all requirements in automation technology.

Electrical properties

Type of plug-in contact, A connection
Female (socket)
Type of A electrical connection
M12
Type of B electrical connection
Screw connection

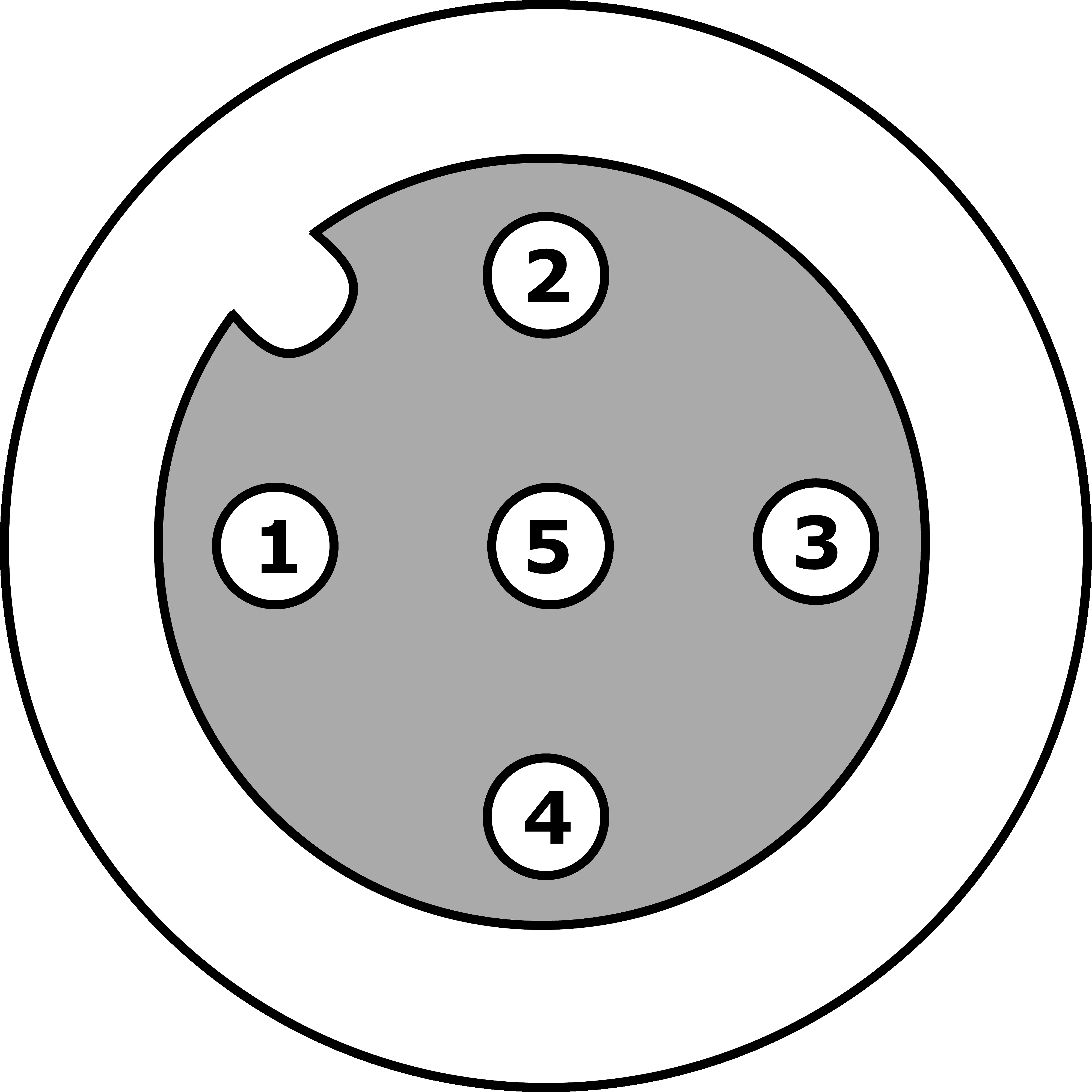

Number of pins of A connection
5
Ampacity
4A
Operating voltage (AC 50Hz)
60V
Operating voltage (DC)
60V

Mechanical properties

Wire cross section
0.75mm²
Cable infeed
straight
Cable infeed of A connection
straight
Coding of connection A
A
Degree of protection (IP)
IP67
Contact coating material
Gold
Housing material
PBT
Contact body material
Brass
Permitted cable diameter
4 - 8mm
Material of the screw fitting
Brass

Other properties

Ambient temperature
-25 - 90°C
Version
Classification Class
eClass-7.0 27440102
eClass-7.1 27440102
eClass-8.0 27440102
eClass-9.0 27440102
eClass-9.1 27440102
ETIM-6.0 EC002062
ETIM-7.0 EC002062
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
IPF Product Group 852 cable sockets / connectors (self-assembly)
packaging dimensions 100 x 20 x 120mm
gross weight 30g
Customs tariff number 85369010
WEEE number 40951076
