DISCONTINUED PRODUCT
AO000462
Successor model?
We would be pleased to advise you!
We would be pleased to advise you!

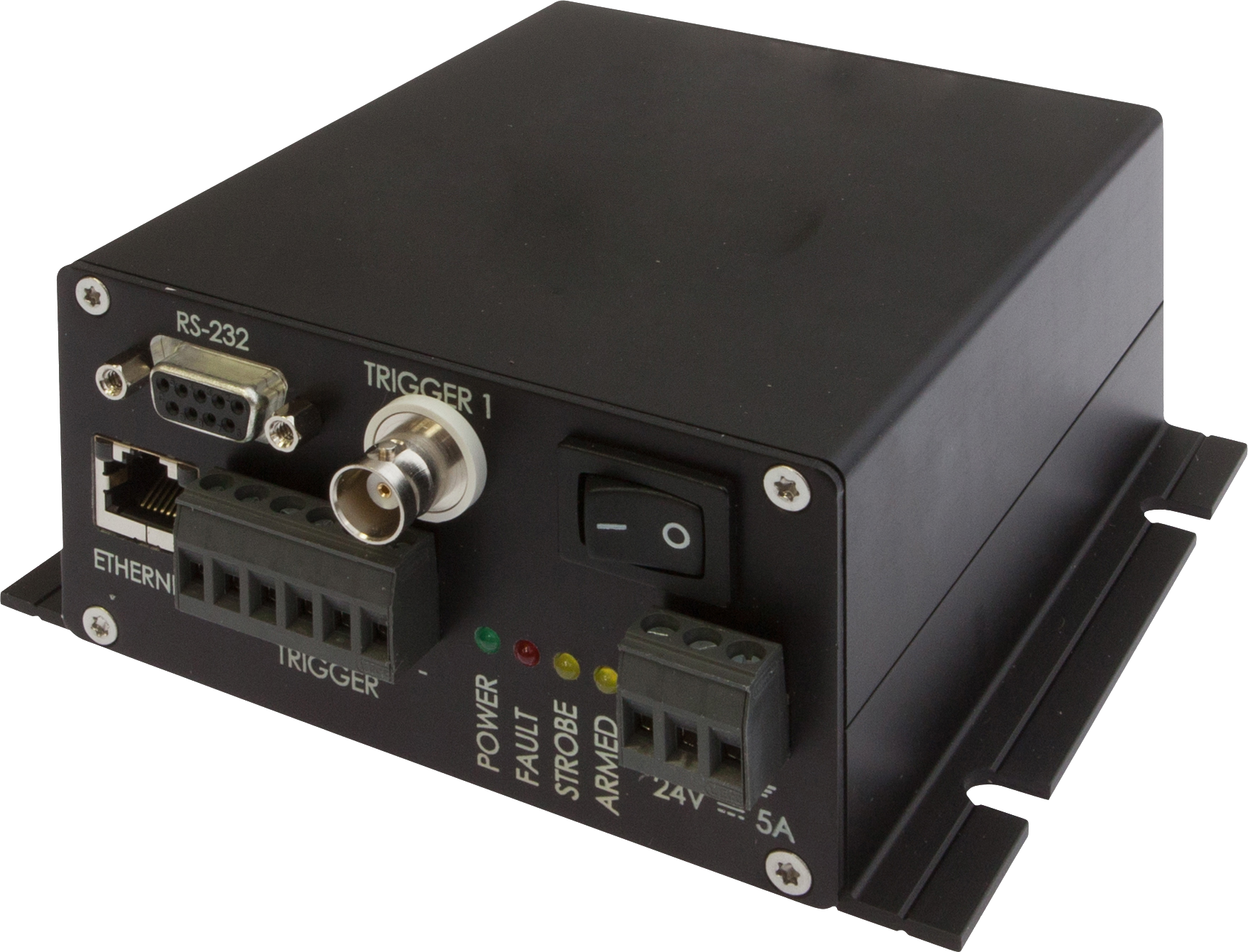

Flash controller, 55x120x130mm, 4 channels, 12-24V diagnostic coverage, terminals 6-pole, aluminum, LED
including Pin, SUB-D connector, Resistor
Compare
Accessories - Flash controller
Electrical properties
- Number of channels
- 4
- Type of electrical connection
- Clamped terminal connection
- Rated switching current
- 1,000mA
- No-load current
- 5,000mA
- Power consumption
- 120VA
- Number of pins
- 6
- Switching voltage
- 30V
- Supported communication interface
- Ethernet
- Display
- LED display
Mechanical properties
- Design
- Cuboid
- Width
- 130mm
- Height
- 55.1mm
- Length
- 120mm
- Mounting method
- Floor fastening
- Housing material
- Aluminum
Other properties
- Ambient temperature
- -5 - 50°C
- Version
- Field device
Datasheets

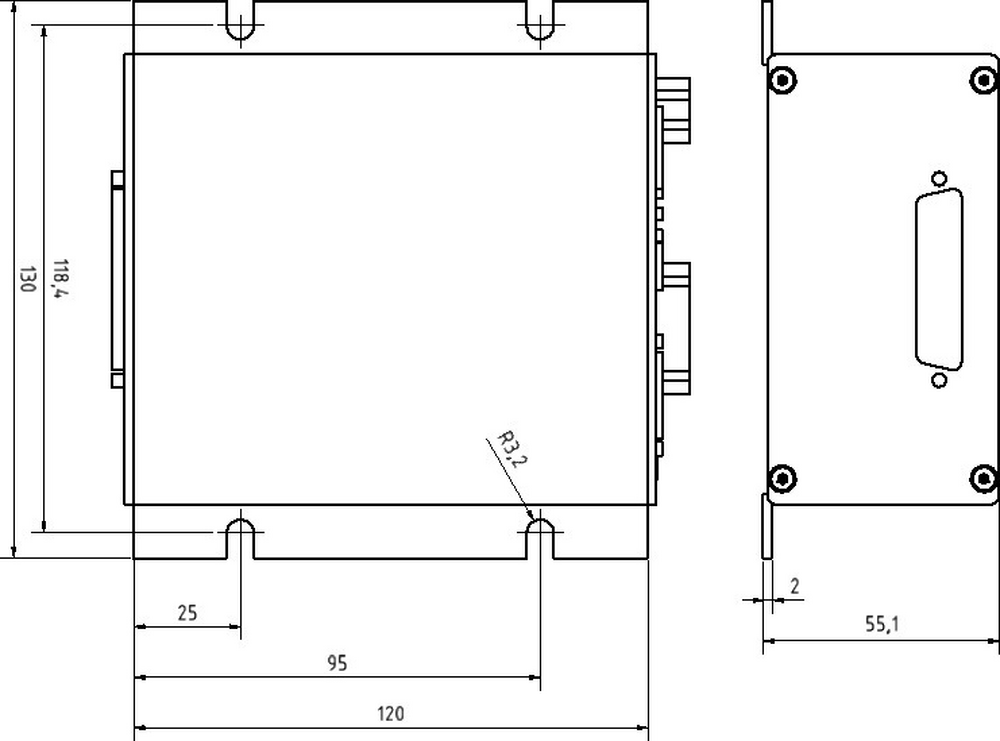

Drawings
Software
Product Compliance
| Classification | Class |
|---|---|
| eClass-7.0 | 27319290 |
| eClass-7.1 | 27319290 |
| eClass-8.0 | 27319290 |
| eClass-9.0 | 27319290 |
| eClass-9.1 | 27319290 |
| ETIM-6.0 | EC002924 |
| ETIM-7.0 | EC002924 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 915 camera illumination |
| packaging dimensions | 138 x 95 x 210mm |
| gross weight | 895g |
| Customs tariff number | 85423190 |
| WEEE number | 40951076 |
