EB280120
Successor model?
We would be pleased to advise you!
We would be pleased to advise you!
On demand

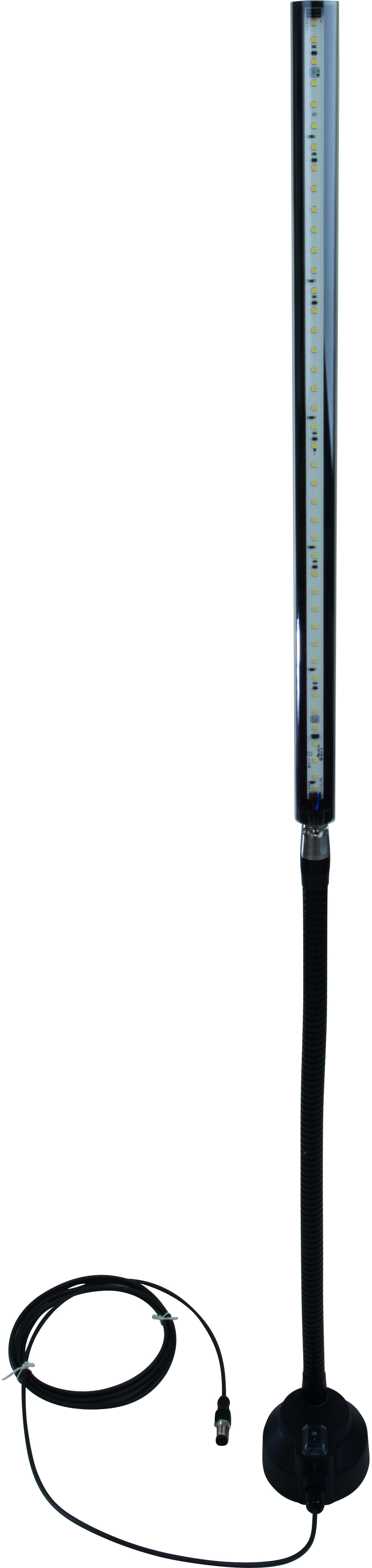

LED Gooseneck light, Ø28mm 500long, White light, 13W, 1000lx, 5500K, M12-connector 4pin, IP54, Aluminum+Acrylic glass, Adhesive magnet, On/Off switch
Compare
Archive - LED lights - gooseneck lights
LED lights are required in nearly every industrial sector. A lighting coordinated on the respective workplace ensures a better visibility, increases the production quality, the working safety and helps additionally to safe energy costs. Their long lifetime, which is independent of switching cycles, reduces maintenance costs and increases the availability. LED lights are used for the illumination of workplaces, work areas of machines, control cabinets and several other fields of application.
Electrical properties
- Type of electrical connection
- Connector M12
- Rated operating current
- 500mA
- Power
- 13W
- Number of pins
- 4
- Protection class
- III
- Reverse polarity protection
- Yes
Mechanical properties
- Number of cores
- 3
- Type of lamp stand
- Adhesive magnet
- Design
- Gooseneck
- Length
- 500mm
- Degree of protection (IP)
- IP54
- Front screen scattering behavior
- clear
- Housing material
- Aluminum
- Front screen material
- Acrylic glass
- Diameter
- 28mm
Optical properties
- Number of LEDs
- 42
- Illuminance at 500mm distance
- 1,000lx
- Illumination in the center (distance 1 m)
- 250lx
- Color temperature
- 5,500K
- Light source
- White light
- Angle of beam spread
- 120°
Other properties
- Features
- switching point integrated
- Risk group
- 0
- Ambient temperature
- -10 - 40°C
- Gooseneck light
You can find accessories for EB280120
in these product groups:
Cable sockets M12 3-wire
Cable sockets M12 4-pin field attachable
Power supply 24V DC / 1A plug-in power supply pin 1/3
Power supply 24V DC / 2 – 10A
Cable sockets M12-socket M8-connector 3-wire
Datasheets
Drawings
-

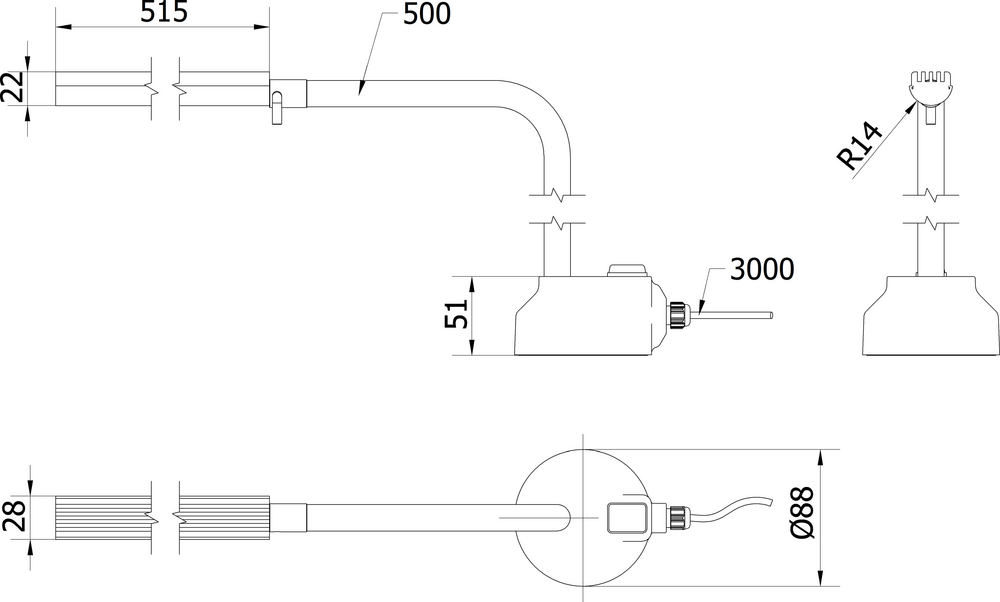

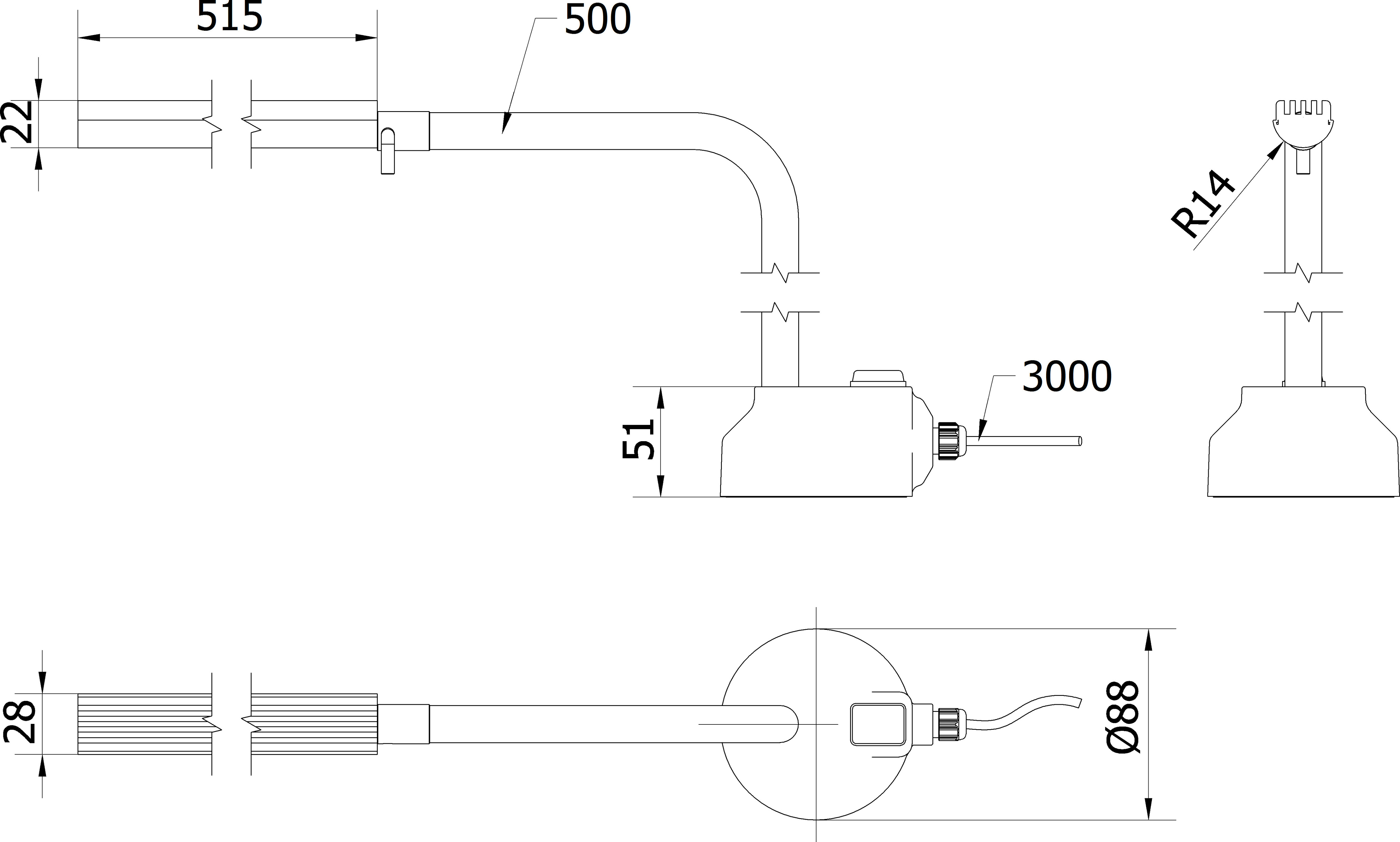

jpgBlueprintJPG-file, 462 KB
-
dwg2DDWG-file, 440 KB
-
stp3DSTP-file, 1.0 MB
-

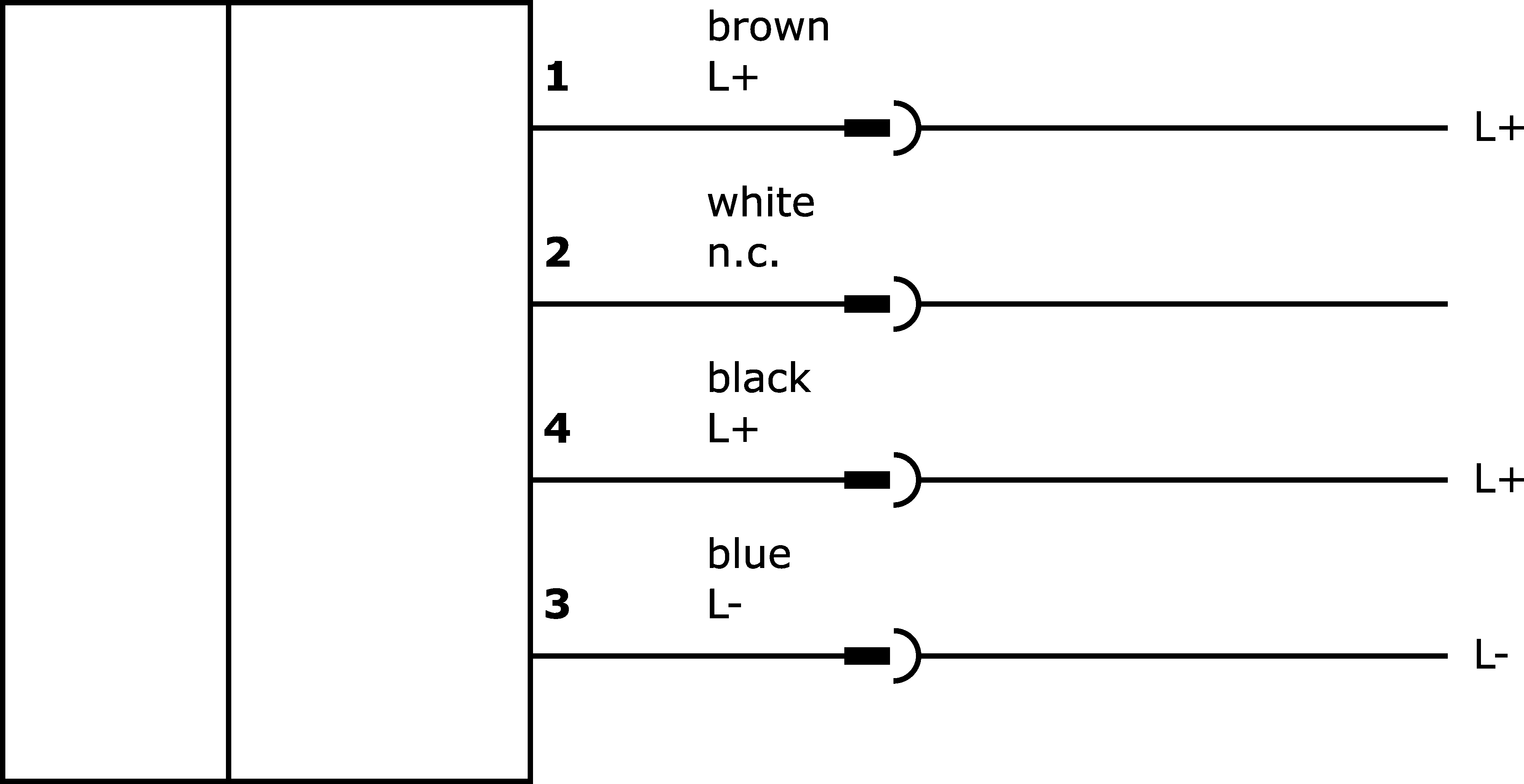

pngWiring diagram - internetPNG-file, 5.6 KB
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 324 KB
-
pdfMaterial compliancePDF-file, 407 KB
-
pdfCE declaration of conformityPDF-file, 254 KB
Miscellaneous
| Classification | Class |
|---|---|
| ETIM-6.0 | EC000000 |
| ETIM-7.0 | EC000000 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| IPF Product Group | 190 machine illuminations |
| packaging dimensions | 160 x 160 x 1,230mm |
| gross weight | 2,283g |
| Customs tariff number | 94054239 |
| WEEE number | 40951076 |
