LED lights - Gooseneck lights
EB800120
| amount | price | discount |
|---|---|---|
| 1 | 277,90 € | – |
| 5 | 269,56 € | 3% / 8,34 € |
| 10 | 264,01 € | 5% / 13,90 € |
| 20 | 255,67 € | 8% / 22,23 € |
| 50 | 244,55 € | 12% / 33,35 € |
Available

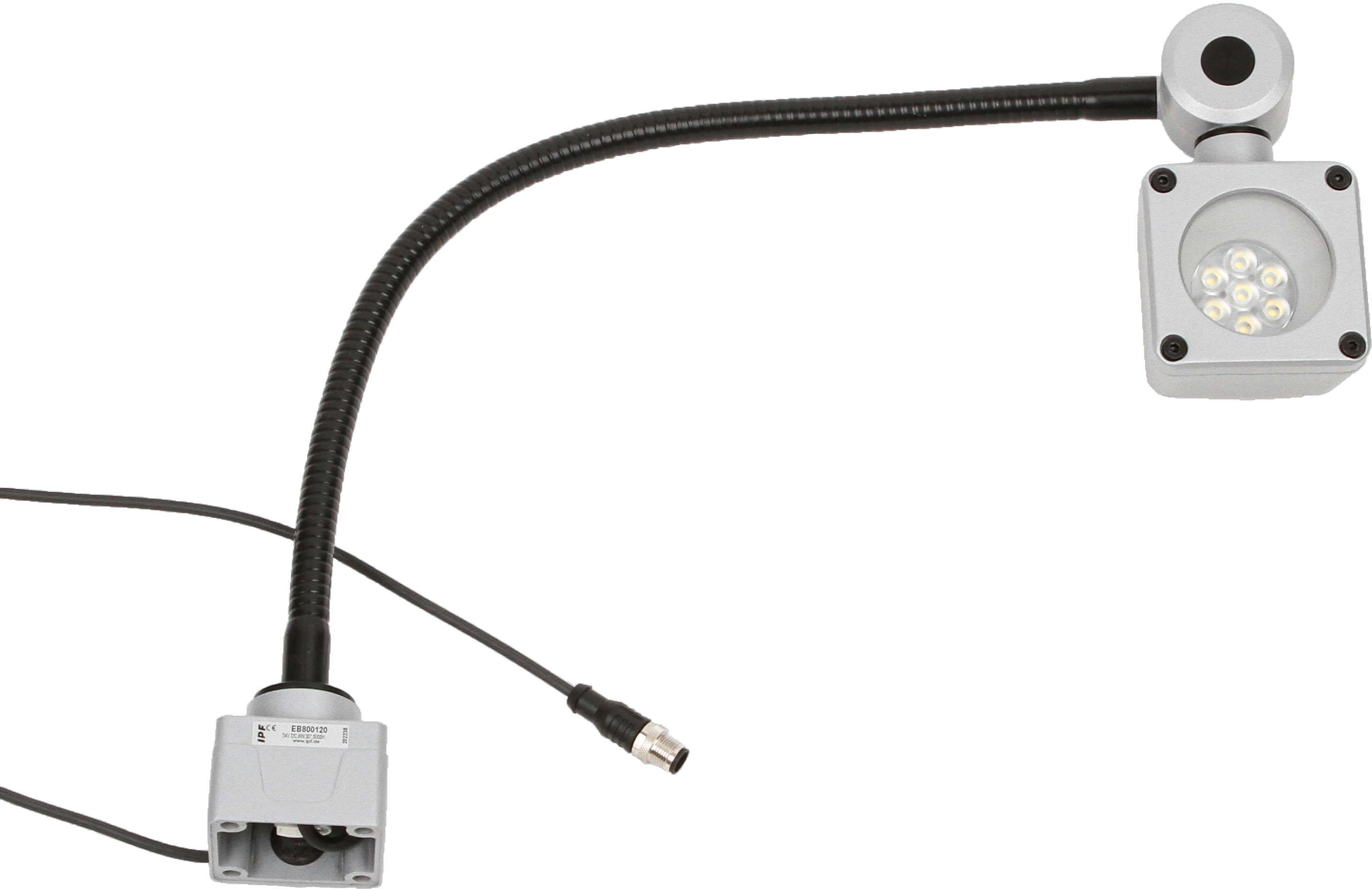

LED Gooseneck light, 500x80mm, White light, 9W, 5000lx, 5000K, 24V DC, M12-connector 4pin 3m, IP67, Aluminum+Safety glass, Screw-on plate, Dimmable, On/Off switch
including 4x Screw, 1x Sealing
Compare
LED lights - Gooseneck lights
LED lights are required in nearly every industrial sector. A lighting coordinated on the respective workplace ensures a better visibility, increases the production quality, the working safety and helps additionally to safe energy costs. Their long lifetime, which is independent of switching cycles, reduces maintenance costs and increases the availability. LED lights are used for the illumination of workplaces, work areas of machines, control cabinets and several other fields of application.
Electrical properties
- Type of electrical connection
- Connector M12
- Rated operating current
- 375mA
- Power
- 9W
- Number of pins
- 4
- Protection class
- III
- Reverse polarity protection
- Yes
- Operating voltage (DC)
- 24V
- Adjustable brightness
- Yes
Mechanical properties
- Number of cores
- 3
- Type of lamp stand
- Screw-on plate
- Width
- 80mm
- Cable length
- 3m
- Length
- 500mm
- Degree of protection (IP)
- IP67
- Front screen scattering behavior
- clear
- Housing material
- Aluminum
- Front screen material
- Safety glass
Optical properties
- Illuminance at 500mm distance
- 7,000lx
- Color temperature
- 5,000K
- Light source
- White light
- Angle of beam spread
- 30°
Other properties
- Features
- Risk group
- 1
- Ambient temperature
- -10 - 40°C
You can find accessories for EB800120
in these product groups:
Cable sockets M12 4-pin field attachable
Cable sockets M12-socket M8-connector 3-wire
Cable sockets M12 3-wire
Cable sockets M12 4-wire
Power supply 24V DC / 1A plug-in power supply pin 4/3
Fixing material for EB80
Power supply 24V DC / 1A plug-in power supply pin 1/3
Power supply 24V DC / 2 – 10A
Spare glass for EB80
Scarce
Datasheets
Drawings
-

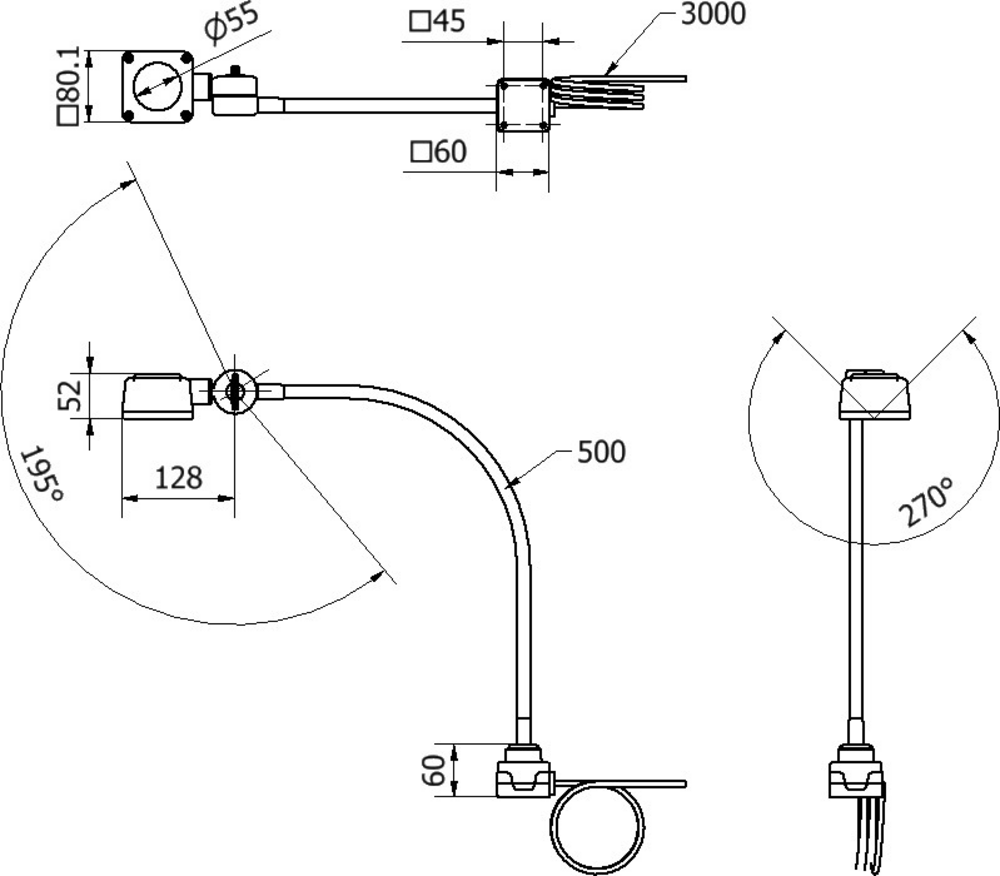

jpgBlueprintJPG-file, 51 KB
-
dwg2DDWG-file, 966 KB
-
stp3DSTP-file, 6.2 MB
-
pngWiring diagram - internetPNG-file, 5.6 KB
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 476 KB
-
pdfMaterial compliancePDF-file, 407 KB
-
pdfCE declaration of conformityPDF-file, 405 KB
-
pdfUL declaration of conformityPDF-file, 76 KB
-
pdfCCC declaration of conformityPDF-file, 73 KB
-
pdfCSA declaration of conformityPDF-file, 57 KB
Miscellaneous
| Classification | Class |
|---|---|
| eClass-7.0 | 27110390 |
| eClass-7.1 | 27110390 |
| eClass-8.0 | 27110390 |
| eClass-9.0 | 27110345 |
| eClass-9.1 | 27110345 |
| ETIM-6.0 | EC000348 |
| ETIM-7.0 | EC000348 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| IPF Product Group | 190 machine illuminations |
| packaging dimensions | 150 x 140 x 875mm |
| gross weight | 1,783g |
| Customs tariff number | 94054239 |
| WEEE number | 40951076 |
